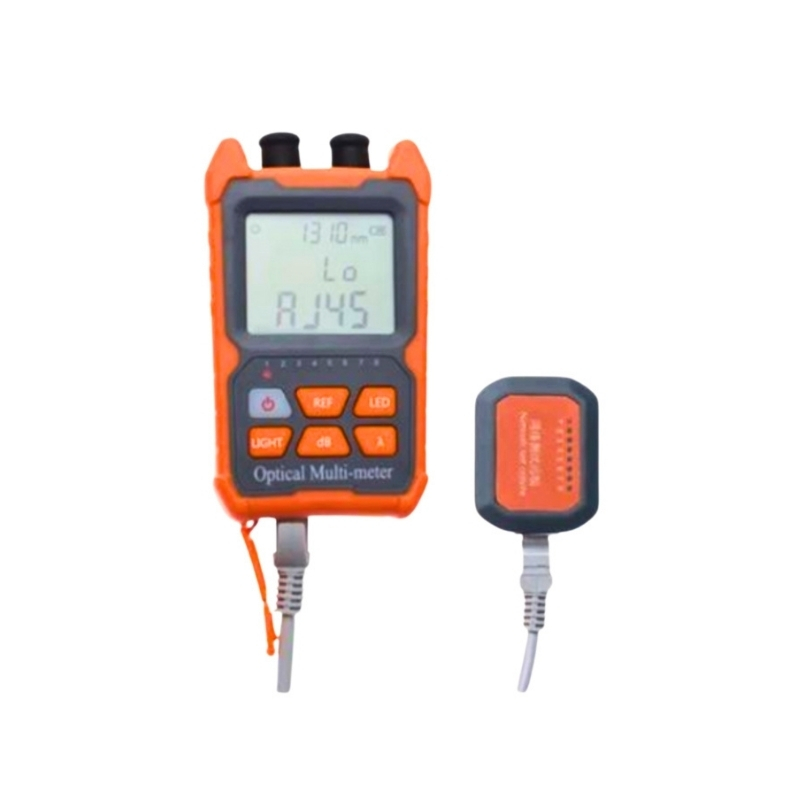

Optical Power Meter Mini with VFL 2mw
Price: Rs 3715.95
Description:
The Mini Optical Power Meter with Visual Fault Locator (VFL) and Cable Threader series is a compact and user-friendly testing device designed for optical fiber networks. It serves dual functions, allowing for precise optical power measurements and visual tracing of fiber faults.
Key Features:
- Integration of power meter and VFL in one unit enables efficient optical power/loss measurements and fiber fault tracing.
- Particularly suited for rapid mechanical splicing and deployment in FTTx networks.
- RJ45 network cable testing capability (Optional)
- Optical ports support FC, SC, and ST connectors, ensuring compatibility across various optical interfaces.
Specifications:
- Calibration Wavelength Range: 800~1700nm
- Optical Connector: SC universal interface
- Detector Type: InGaAs
- Measurement Range: -50 ~ 26dBm
- Uncertainty: ±5%
- Calibration Wavelengths: 850, 980, 1300, 1310, 1490, 1550, 1625, 1650nm
- Display Resolution: Linear Display: 0.1%, Logarithmic Display: 0.01dBm
- Operating Temperature: -10~+50°C
- Storage Temperature: -40~+70°C
- Auto-off Time: 10 minutes
- Battery Continuous Operating Time: ≥72 hours (OPM Function)
- Dimensions: 112mm x 66mm x 30mm
- Weight: 140g
This device offers a compact design, versatile functionality, and high accuracy, making it an indispensable tool for optical network testing and maintenance.
