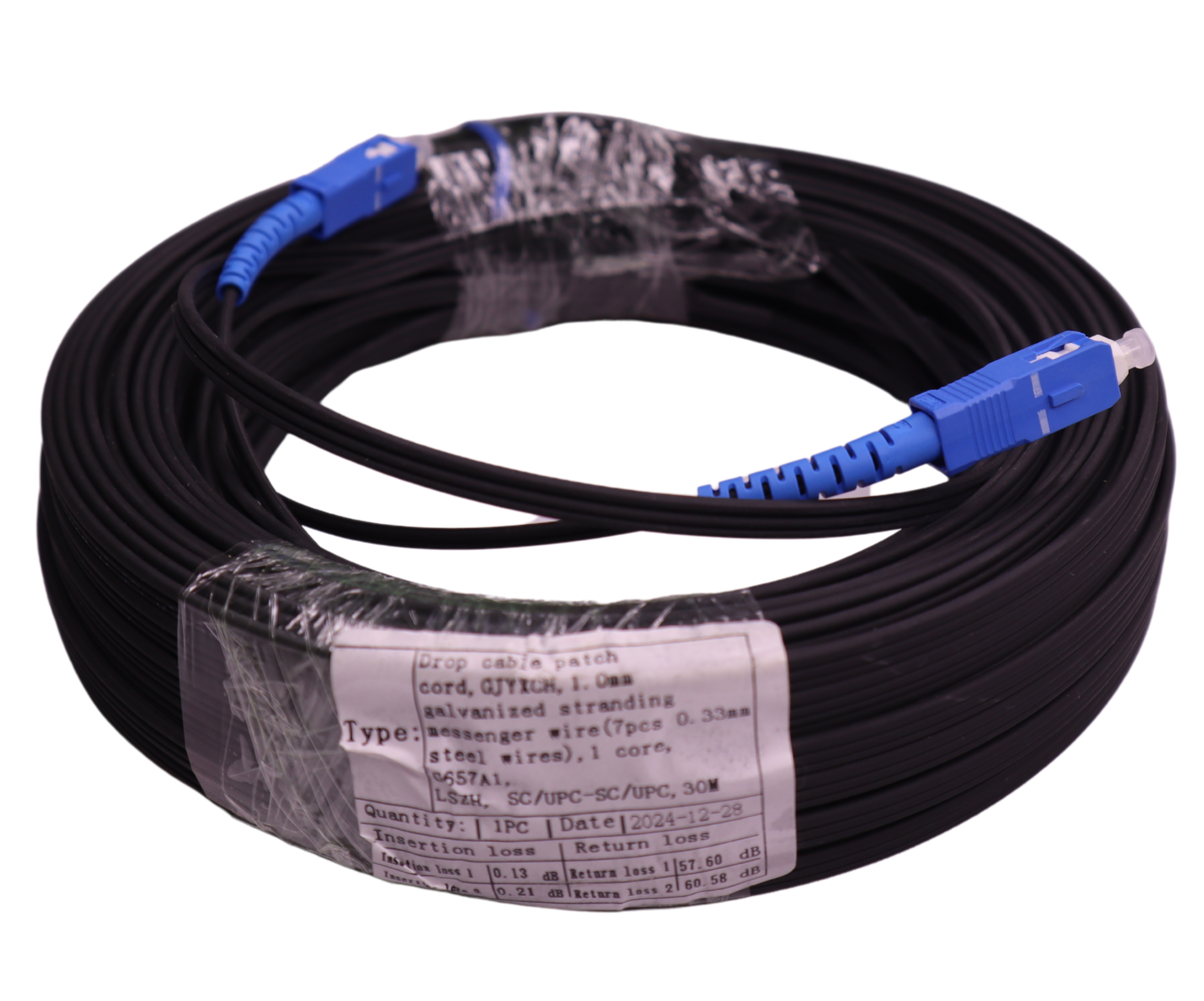

Drop Cable SC UPC to SC UPC -30M

Discover our latest products and services

Drop Cable SC UPC to SC UPC -30M

Rs 288.05

(3 Reviews)
Product Info
  • Unit: Roll(1)
  • Weight: 0.5000 kg
  • Product ID: 332

Cable Structure of Drop Cable:

ParameterDetails
Types of FiberG.657A1
No. of Fibers1
Strength Member2 pieces of 0.45mm steel wires
Messenger Wire1. 0 mm galvanized stranding steel wire (7 pieces of 0.33 mm steel wire)
Cable Dimension2.0*5.0mm
Cable Weight1kg/km (±5%)
Cable PrintCompany name: D-Tech Trading  Production time: **

Cable Performance of Drop cable:

Long-Term Tension Load300N
Short-Term Tension Load600N
Long-Term Crush Load1000N
Short-Term Crush Load2200N
Minimum Static Bending Radius20mm
Minimum Dynamic Bending Radius40mm
Installing Temperature-10°C to +40°C
Operating Temperature-40 °C to +60 °C

 Connector of Drop Cable:

ModeSingle-mode: G657A1
Cord typeSimplex
length(M)30m, 50m, 75m, 100m, 150m, 200m, 300m, etc
PolishUPCAPC
Insertion Loss≤0.3dB≤0.3dB
Return Loss≥50dB≥55dB

Here are some related drop cable links below:

Drop Cable SC UPC to SC UPC -50M

Drop Cable SC UPC to SC UPC -75M

Drop Cable SC UPC to SC UPC -100M

Drop Cable SC UPC to SC UPC -125M

Drop Cable SC UPC to SC UPC -150M

Drop Cable SC UPC to SC UPC -200M

Product Specifications
  • Weight: 229-TRIAL-0.5 Kg 14
  • More Details: 268-TRIAL-1 Full Carton contains 36 Rolls 255
  • Delivery Time (if import required): 97-TRIAL-China to Nepal 35-45Days 206

Cable Structure of Drop Cable:

ParameterDetails
Types of FiberG.657A1
No. of Fibers1
Strength Member2 pieces of 0.45mm steel wires
Messenger Wire1. 0 mm galvanized stranding steel wire (7 pieces of 0.33 mm steel wire)
Cable Dimension2.0*5.0mm
Cable Weight1kg/km (±5%)
Cable PrintCompany name: D-Tech Trading  Production time: **

Cable Performance of Drop cable:

Long-Term Tension Load300N
Short-Term Tension Load600N
Long-Term Crush Load1000N
Short-Term Crush Load2200N
Minimum Static Bending Radius20mm
Minimum Dynamic Bending Radius40mm
Installing Temperature-10°C to +40°C
Operating Temperature-40 °C to +60 °C

 Connector of Drop Cable:

ModeSingle-mode: G657A1
Cord typeSimplex
length(M)30m, 50m, 75m, 100m, 150m, 200m, 300m, etc
PolishUPCAPC
Insertion Loss≤0.3dB≤0.3dB
Return Loss≥50dB≥55dB

Here are some related drop cable links below:

Drop Cable SC UPC to SC UPC -50M

Drop Cable SC UPC to SC UPC -75M

Drop Cable SC UPC to SC UPC -100M

Drop Cable SC UPC to SC UPC -125M

Drop Cable SC UPC to SC UPC -150M

Drop Cable SC UPC to SC UPC -200M

Additional Specifications
Weight 0.5000 kg
Base Unit Roll(1)
Category Optical Fiber Cable and Accessories
SKU
Product Code
Trackable Yes
Taxable Yes
