HDMI 2.0 Fiber Optic Cable 165
Discover our latest products and services
Product Info
- Unit: pc(1)
- Product ID: 1177
HDMI Cable with Fiber
Optic 2.0 Version
- This product is easy to use, securely
connected, and suitable for any location were high- definition video displays,
such as home video distribution, conference room presentation system,
room projection systems, digital signage.
- Fiber optic provides
the speed and bandwidth needed for the best picture quality for high-definition
videos supporting the long distance required in commercial video solutions.
- Fiber Optic HDMI is
better for gaming.
Product Description:
Features
• Support HDR, Audio
Return Channel (ARC), CEC, EDID, 3D, HDCP2.2.7.Resolution: 4K(3840×2160)@60Hz
(Downward compatibility)
• Ultra-slim lightweight design (4.8mm cable diameter) makes your cabling work
easier for this thin flexible wire can be routed around the tight space as you
want
• The fiber optic HDMI Cable is one direction transmission, connects Blu-ray
players, Fire TV, Apple TV, PS4, PS3, Xbox One, Xbox 360, computers, and other
HDMI-enabled devices to display devices such as TVs, displays, A/V receivers,
and more.
• Support resolutions up to 4K Ultra HD 2160p at 60Hz 4:4:4 format
• Active optical cable (AOC) uses fiber optic technology to send HDMI signal
• Supports 18Gbps bandwidth and all formats
• Plug and Play, no extra power needed and no signal loss
• Gold plated connectors to prevent rust over time
• Connectors marked source and display for directional use
• Photoelectric composite cable
• Plug and Play, no extra power needed and no signal loss.
• Thin, light, and flexible compared to traditional HDMI cables
• Source and Display are easily identifiable
• Available in multiple standard lengths from 10 to 100 meters
• The customized length is available.
Specification:
|
Parameter |
Description |
|
Product Series |
4K Fiber Optic
HDMI2.0 AOC Cable |
|
Part Number |
AOC-HDMI20-A-A-xM |
|
Connector Type |
HDMI-A
to HDMI-A |
|
Connector Plating |
Gold plated,
long-life design |
|
Jacket Material |
PVC |
|
Fiber Type |
OM3 |
|
Maximum Resolution |
4K@60Hz |
|
Power Requirements |
No external power
needed |
|
Power Consumption |
250mW |
|
Bandwidth |
18 Gbps |
|
Supported HDMI
Features |
4K, FHD, 3D, Deep
Color, HDMI-CEC, HDCP™, HD Audio |
|
Cable Thickness |
4.8mm |
|
Minimum Bend Radius |
20mm |
|
Operating
Temperature/Humidity |
32 to 158°F
(0 to 70°C), 10% to 85% RH, Non-Condensing |
|
Storage
Temperature/Humidity |
-40 to 185°F
(-40 to 85°C), 5% to 90% RH, Non-Condensing |
Product Specifications
- Warranty: 222-TRIAL-1 Year 271
- Origin: 111-TRIAL-China 90
- Delivery Time (if import required): 38-TRIAL-15-20 Days 41
HDMI Cable with Fiber
Optic 2.0 Version
- This product is easy to use, securely
connected, and suitable for any location were high- definition video displays,
such as home video distribution, conference room presentation system,
room projection systems, digital signage.
- Fiber optic provides
the speed and bandwidth needed for the best picture quality for high-definition
videos supporting the long distance required in commercial video solutions.
- Fiber Optic HDMI is
better for gaming.
Product Description:
Features
• Support HDR, Audio
Return Channel (ARC), CEC, EDID, 3D, HDCP2.2.7.Resolution: 4K(3840×2160)@60Hz
(Downward compatibility)
• Ultra-slim lightweight design (4.8mm cable diameter) makes your cabling work
easier for this thin flexible wire can be routed around the tight space as you
want
• The fiber optic HDMI Cable is one direction transmission, connects Blu-ray
players, Fire TV, Apple TV, PS4, PS3, Xbox One, Xbox 360, computers, and other
HDMI-enabled devices to display devices such as TVs, displays, A/V receivers,
and more.
• Support resolutions up to 4K Ultra HD 2160p at 60Hz 4:4:4 format
• Active optical cable (AOC) uses fiber optic technology to send HDMI signal
• Supports 18Gbps bandwidth and all formats
• Plug and Play, no extra power needed and no signal loss
• Gold plated connectors to prevent rust over time
• Connectors marked source and display for directional use
• Photoelectric composite cable
• Plug and Play, no extra power needed and no signal loss.
• Thin, light, and flexible compared to traditional HDMI cables
• Source and Display are easily identifiable
• Available in multiple standard lengths from 10 to 100 meters
• The customized length is available.
Specification:
|
Parameter |
Description |
|
Product Series |
4K Fiber Optic
HDMI2.0 AOC Cable |
|
Part Number |
AOC-HDMI20-A-A-xM |
|
Connector Type |
HDMI-A
to HDMI-A |
|
Connector Plating |
Gold plated,
long-life design |
|
Jacket Material |
PVC |
|
Fiber Type |
OM3 |
|
Maximum Resolution |
4K@60Hz |
|
Power Requirements |
No external power
needed |
|
Power Consumption |
250mW |
|
Bandwidth |
18 Gbps |
|
Supported HDMI
Features |
4K, FHD, 3D, Deep
Color, HDMI-CEC, HDCP™, HD Audio |
|
Cable Thickness |
4.8mm |
|
Minimum Bend Radius |
20mm |
|
Operating
Temperature/Humidity |
32 to 158°F
(0 to 70°C), 10% to 85% RH, Non-Condensing |
|
Storage
Temperature/Humidity |
-40 to 185°F
(-40 to 85°C), 5% to 90% RH, Non-Condensing |
Additional Specifications
| Base Unit | pc(1) |
|---|---|
| Category | Electronics & Electrical Goods |
| SKU | |
| Product Code | 26 |
| Trackable | Yes |
| Taxable | Yes |
Fusce dapibus, tellus ac cursus commodo, tortor mauris condimentum nibh, ut fermentum massa justo sit amet risus. Integer posuere erat a ante venenatis dapibus posuere velit aliquet. Cras mattis consectetur purus sit amet fermentum. Maecenas sed diam eget risus varius blandit sit amet non magna. Sed posuere consectetur est at lobortis. Curabitur blandit tempus porttitor. Aenean lacinia bibendum nulla sed consectetur. Nulla vitae elit libero, a pharetra augue. Morbi leo risus, porta ac consectetur ac, vestibulum at eros. Praesent commodo cursus magna, vel scelerisque nisl consectetur et.

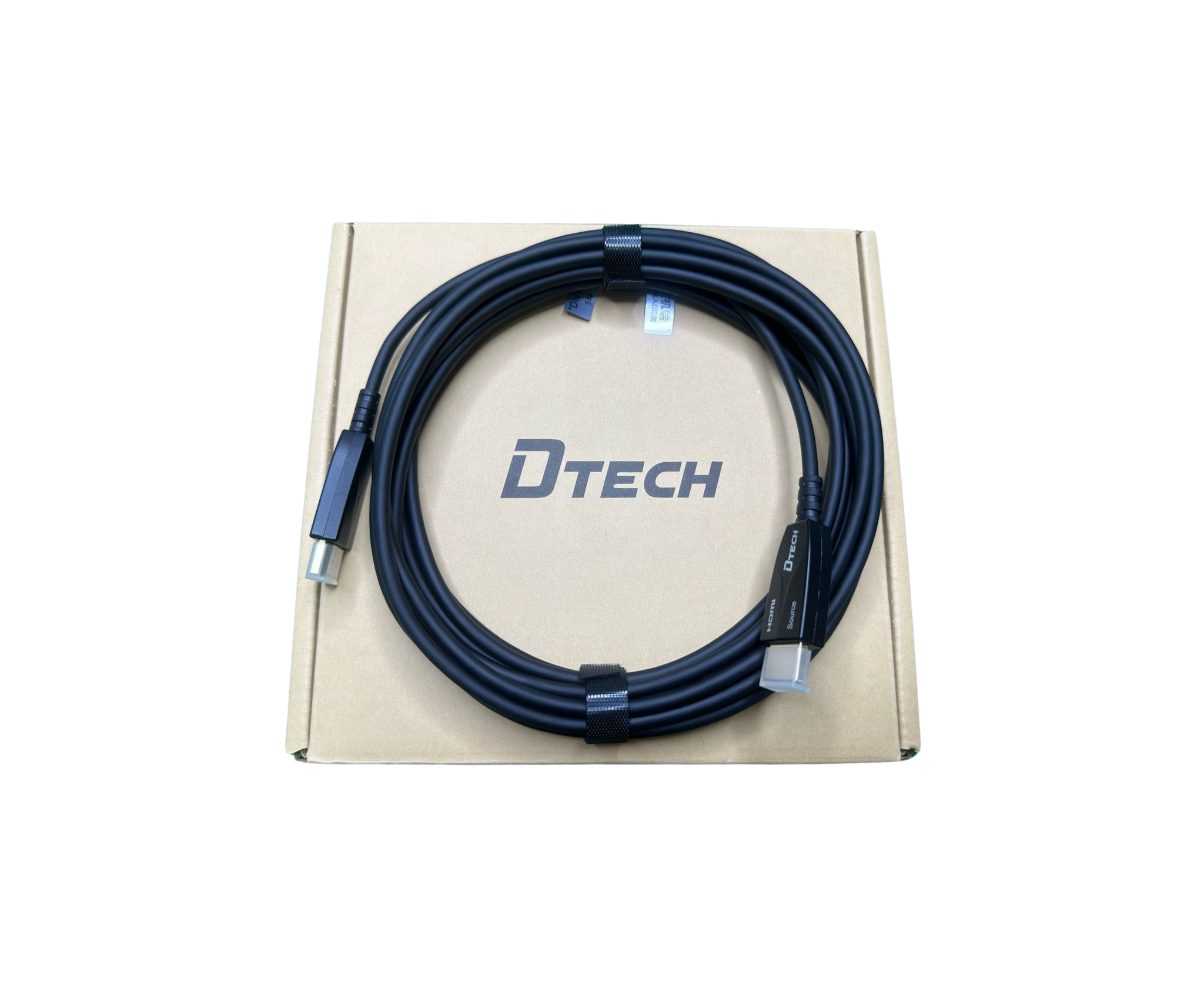

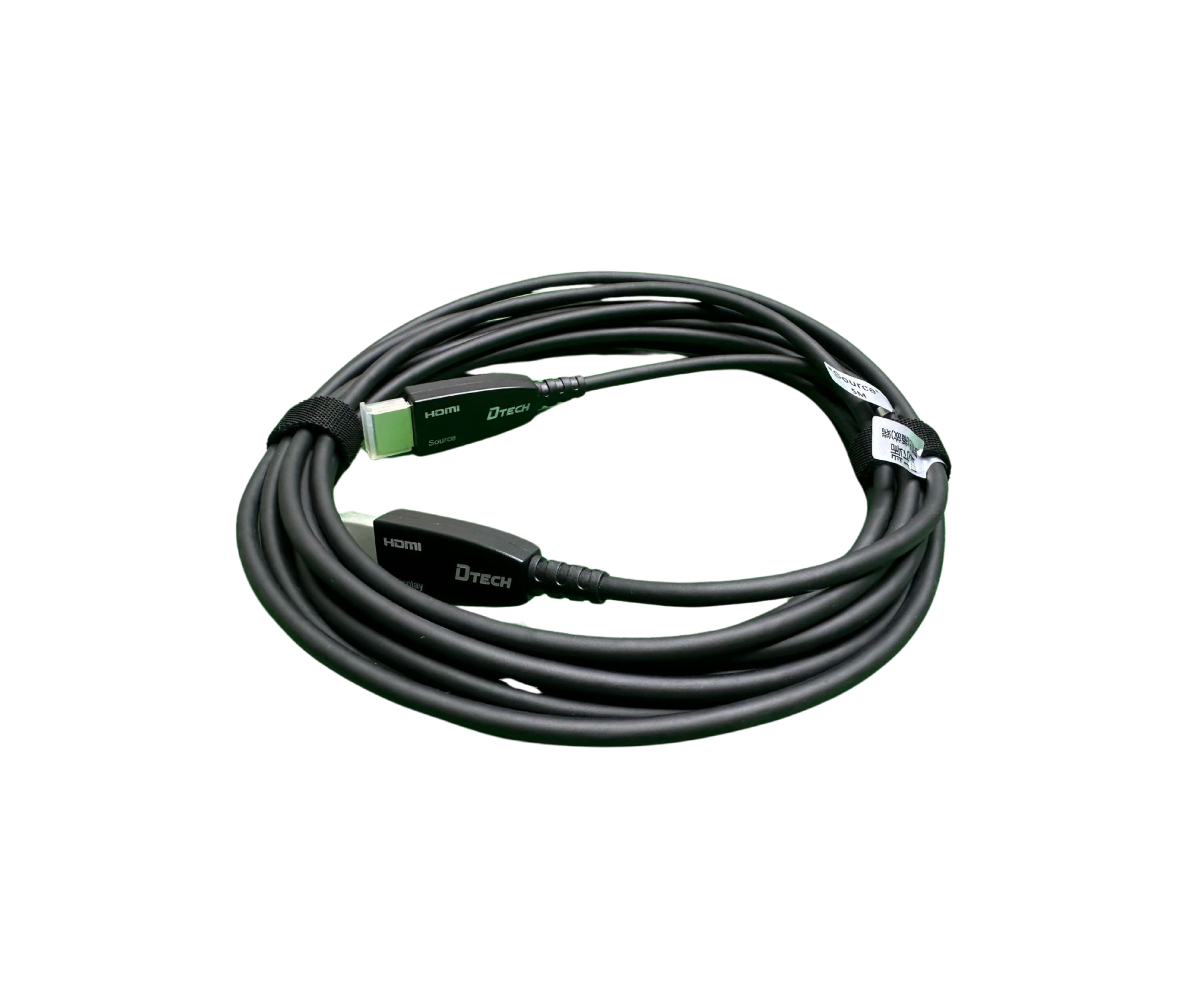

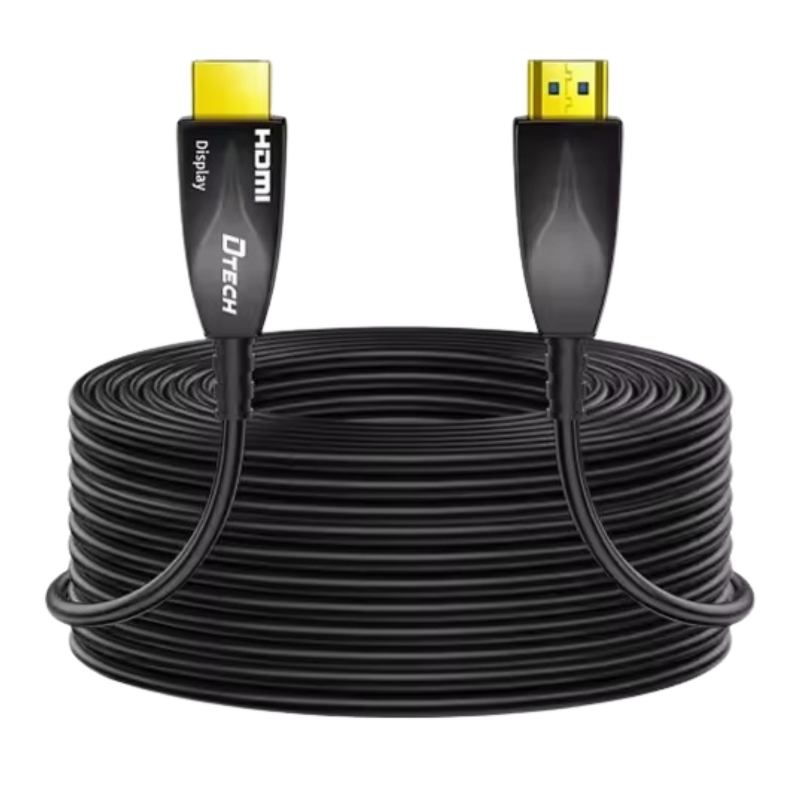

FIber Cable HDMI
