Optical Fiber MPO(F)-MPO(F)-MO3-3.0-8 pin-5M in Nepal
Overview:

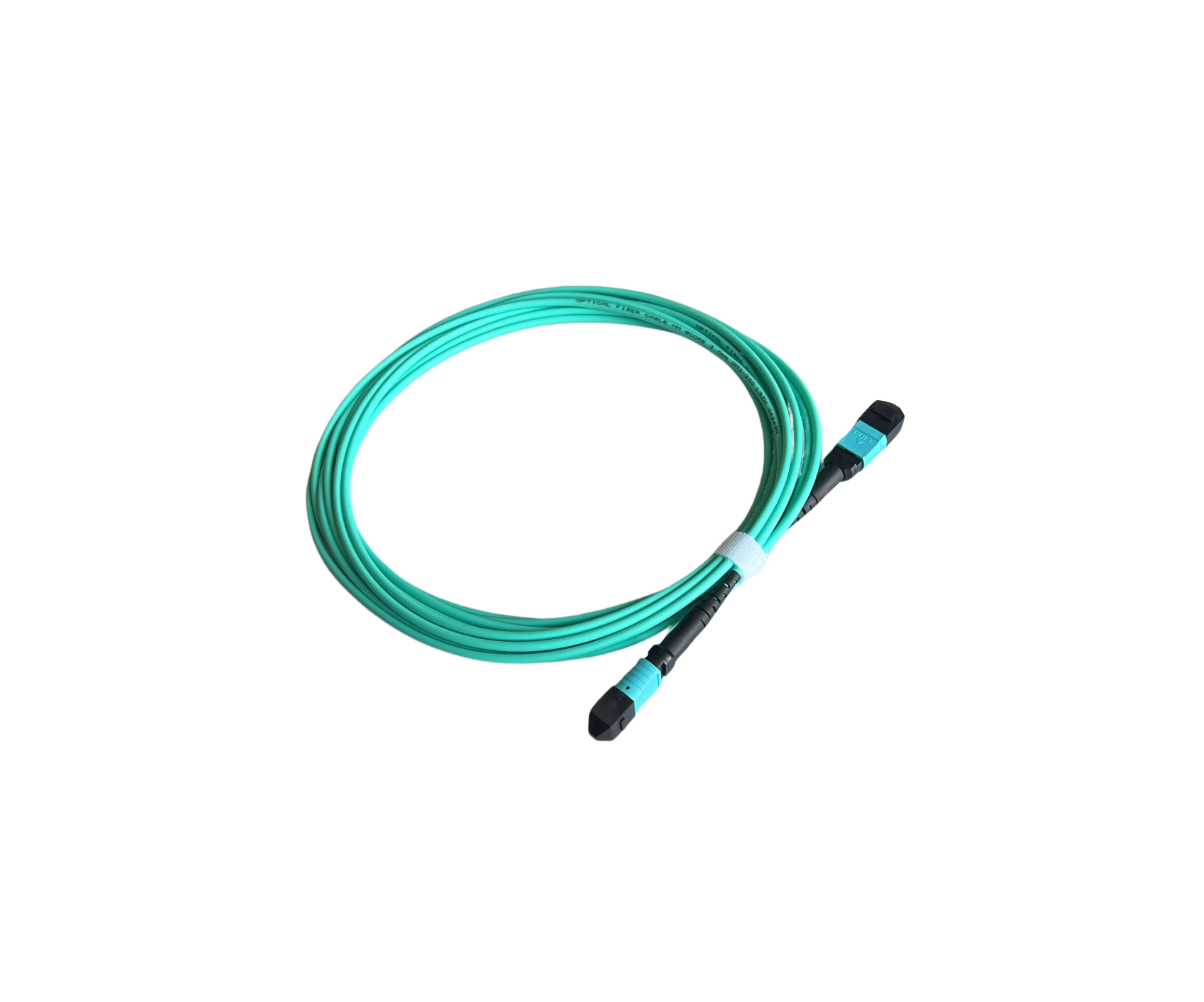

The MPO(F)-MPO(F)-MO3-3.0-8 pin-1M/MPO Female to MPO Female Multimode Fiber Optic Cable Assembly with 3.0mm diameter, 8 Pin Configuration, and 5 Meter Length is a high-performance, multi-fiber optical cable designed for advanced data center and high-density fiber network applications. This 5-meter cable efficiently handles high-bandwidth data transmission with superior reliability and speed.
Key Features:
- MPO Female to Female Connectors: Equipped with MPO female connectors on both ends, ensuring seamless integration with existing MPO/MTP-based systems.
- 8 Fiber Pins: Features an 8-fiber configuration, optimizing data transmission for medium to high-density applications.
- High-Quality Build: Constructed with premium materials, the MO3-3.0 cable provides durability and resistance against environmental factors.
- 5 order Meter Length: Perfectly sized for patching within racks and across adjacent devices, minimizing cable clutter.
- Low Insertion Loss: Engineered to have a low insertion loss, enhancing signal integrity and improving network performance.
Applications:
- Ideal for data centers, telecommunications, and enterprise networks.
- Suitable for high-speed data transmission in server farms, cloud storage networks, and telecommunication rooms.
Installation and Maintenance:
- Plug-and-play connectivity simplifies the installation process.
- Compatible with standard MPO/MTP interfaces and equipment.
- Easy to handle and maintain, with minimal requirements for upkeep.
OM3 12 core MPO/PC(male)tunk cable,method A
Note:
1.Insertion loss:MPO<= 0.5dB@850nm L<50M
MPO<=0.5dB+(L-50M)*3dB/km@850nm L>50M
Return loss:TyPICAL mtp >=20dB@850nm
2.Durability:500 matings
3.OPreation temperature:-20 degree Celsius to 70 degree Celsius
| Description | Quantity | Unit |
|---|---|---|
| Fiber MM 50/125um OM3 moni breakout | 1 | Cable |
| MPO boot, round | 2 | PCS |
| MPO(MALE) MM connector, aqua | 2 | PCS |
| Dust cover | 2 | PCS |
OM3 12 Core MPO/PC(MALE) Elite trunk cable,method B
Note:
1.Insertion loss:MPO<=0.5dB@850nm L<50M
MPO<=0.5dB+(L-50M)*3dB/km@850nm L>50M
Return loss:Typical MTP>=20dB@850nm
2.Durability:500 matings
3.OPertaion temperature:-20 degree celsius to +70 degree celsisus
|
Description |
Quantity |
Unit |
|
12Fiber MM 50/125um OM3 moni breakout aqua cable |
1 |
Cable |
|
MPO boot, round |
2 |
PCS |
|
MPO(MALE) MM connector, aqua |
2 |
PCS |
|
Dust cover |
2 |
PCS |
|
No description |
QTY |
Unit |
Optical Fiber MPO(F)-MPO(F)-MO3-3.0-8 pin-5M in Nepal
Overview:
The MPO(F)-MPO(F)-MO3-3.0-8 pin-1M/MPO Female to MPO Female Multimode Fiber Optic Cable Assembly with 3.0mm diameter, 8 Pin Configuration, and 5 Meter Length is a high-performance, multi-fiber optical cable designed for advanced data center and high-density fiber network applications. This 5-meter cable efficiently handles high-bandwidth data transmission with superior reliability and speed.
Key Features:
- MPO Female to Female Connectors: Equipped with MPO female connectors on both ends, ensuring seamless integration with existing MPO/MTP-based systems.
- 8 Fiber Pins: Features an 8-fiber configuration, optimizing data transmission for medium to high-density applications.
- High-Quality Build: Constructed with premium materials, the MO3-3.0 cable provides durability and resistance against environmental factors.
- 5 order Meter Length: Perfectly sized for patching within racks and across adjacent devices, minimizing cable clutter.
- Low Insertion Loss: Engineered to have a low insertion loss, enhancing signal integrity and improving network performance.
Applications:
- Ideal for data centers, telecommunications, and enterprise networks.
- Suitable for high-speed data transmission in server farms, cloud storage networks, and telecommunication rooms.
Installation and Maintenance:
- Plug-and-play connectivity simplifies the installation process.
- Compatible with standard MPO/MTP interfaces and equipment.
- Easy to handle and maintain, with minimal requirements for upkeep.
OM3 12 core MPO/PC(male)tunk cable,method A
Note:
1.Insertion loss:MPO<= 0.5dB@850nm L<50M
MPO<=0.5dB+(L-50M)*3dB/km@850nm L>50M
Return loss:TyPICAL mtp >=20dB@850nm
2.Durability:500 matings
3.OPreation temperature:-20 degree Celsius to 70 degree Celsius
| Description | Quantity | Unit |
|---|---|---|
| Fiber MM 50/125um OM3 moni breakout | 1 | Cable |
| MPO boot, round | 2 | PCS |
| MPO(MALE) MM connector, aqua | 2 | PCS |
| Dust cover | 2 | PCS |
OM3 12 Core MPO/PC(MALE) Elite trunk cable,method B
Note:
1.Insertion loss:MPO<=0.5dB@850nm L<50M
MPO<=0.5dB+(L-50M)*3dB/km@850nm L>50M
Return loss:Typical MTP>=20dB@850nm
2.Durability:500 matings
3.OPertaion temperature:-20 degree celsius to +70 degree celsisus
|
Description |
Quantity |
Unit |
|
12Fiber MM 50/125um OM3 moni breakout aqua cable |
1 |
Cable |
|
MPO boot, round |
2 |
PCS |
|
MPO(MALE) MM connector, aqua |
2 |
PCS |
|
Dust cover |
2 |
PCS |
|
No description |
QTY |
Unit |
