OLP (Optical Protection Card) 40

Rs 1.00

(3 Reviews)
Product Info
  • Unit: pc(1)
  • Product ID: 1455

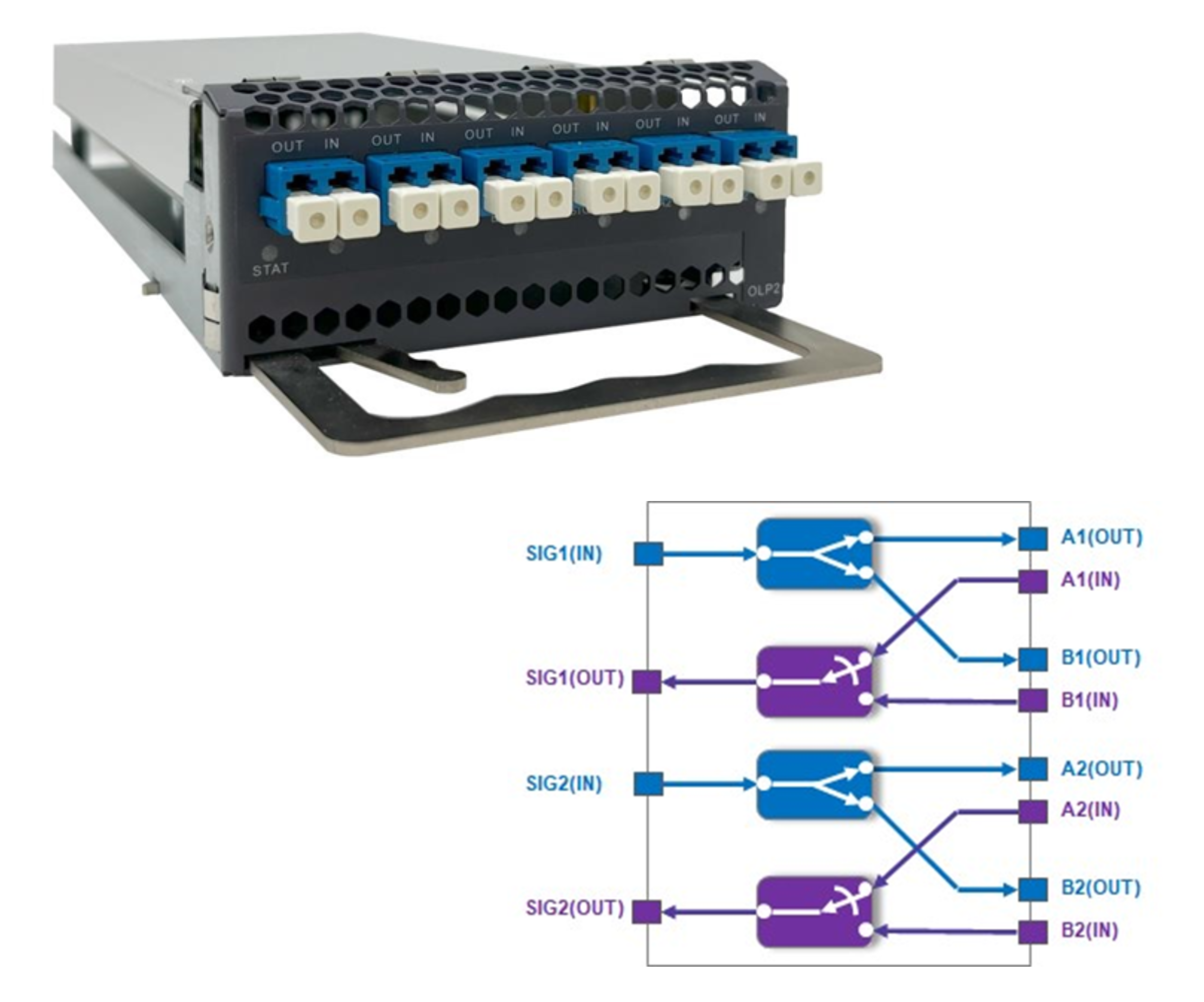

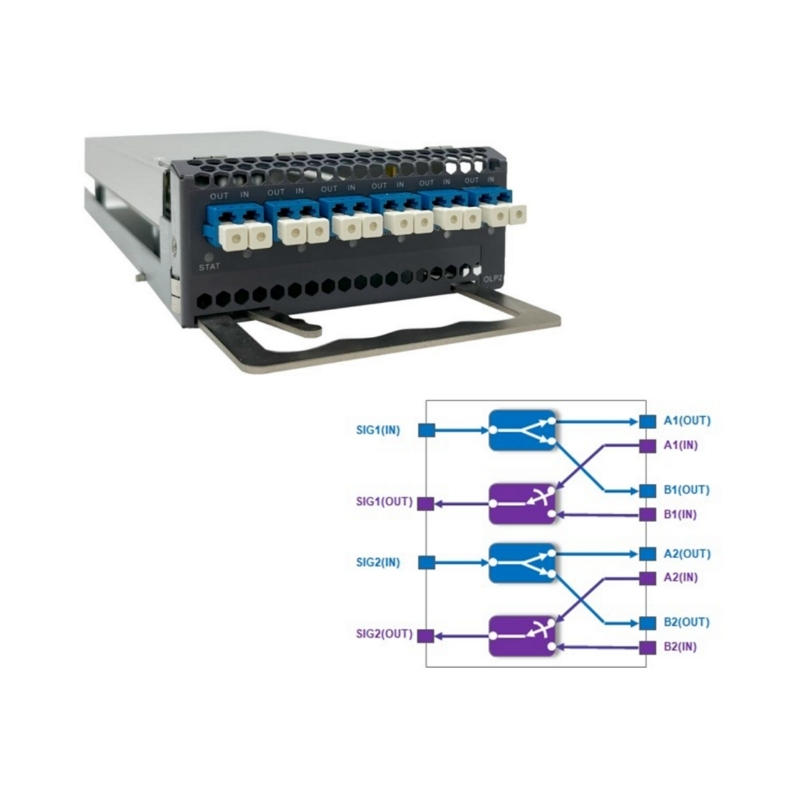

The main function of the optical protection card (OLP) launched by D Tech Trading is to assist the wavelength division system to complete optical layer protection solutions such as optical line 1+1 protection and optical wavelength 1+1 protection. It can monitor the optical signal status of the main and standby routes in real time. Once the optical signal is interrupted or the performance is degraded, it can automatically make a safe switch on the main and standby routes to ensure the rapid recovery of the optical signal of the system. OLP technology is to complete the route switching operation in the optical layer. Optical layer protection has incomparable advantages over upper layer service protection, and is the best solution to provide users with nonblocking communication.

Application case

  •  Suitable for optical line 1+1 protection (OLP)
  •  Suitable for optical multiplexing section 1+1 protection (OMSP)
  •  Suitable for optical channel 1+1 Protection (OCHP)

Product Specification:

Specification Value
Function Support optical signal 1+1 protection, double transmitting and selective receiving, single terminal switching
Slot number 1 slot
Integration Support 1 or 2 groups of optical protection modules (optional according to the application scenario)
Working wavelength range 1528nm ~ 1568nm
Insertion loss TX≤4 dB, RX≤1.5 dB
Switching time <5 ms (switching time of pure optical switch)
Input optical power -25 dBm ~ +21 dBm
Optical power detection accuracy ±0.5 dBm (@>-25 dBm or above)
Polarization dependent loss ≤0.1 dB
Isolation degree >50 dB
Return loss >45 dB
Switching time >(10)^7
Switching condition Relative power difference and absolute power value
Switching method Support locking, forced switching, manual switching and automatic switching
Reliability Power down / power on latch, hot pluggable, and main control card failure does not affect protection switching

The main function of the optical protection card (OLP) launched by D Tech Trading is to assist the wavelength division system to complete optical layer protection solutions such as optical line 1+1 protection and optical wavelength 1+1 protection. It can monitor the optical signal status of the main and standby routes in real time. Once the optical signal is interrupted or the performance is degraded, it can automatically make a safe switch on the main and standby routes to ensure the rapid recovery of the optical signal of the system. OLP technology is to complete the route switching operation in the optical layer. Optical layer protection has incomparable advantages over upper layer service protection, and is the best solution to provide users with nonblocking communication.

Application case

  •  Suitable for optical line 1+1 protection (OLP)
  •  Suitable for optical multiplexing section 1+1 protection (OMSP)
  •  Suitable for optical channel 1+1 Protection (OCHP)

Product Specification:

Specification Value
Function Support optical signal 1+1 protection, double transmitting and selective receiving, single terminal switching
Slot number 1 slot
Integration Support 1 or 2 groups of optical protection modules (optional according to the application scenario)
Working wavelength range 1528nm ~ 1568nm
Insertion loss TX≤4 dB, RX≤1.5 dB
Switching time <5 ms (switching time of pure optical switch)
Input optical power -25 dBm ~ +21 dBm
Optical power detection accuracy ±0.5 dBm (@>-25 dBm or above)
Polarization dependent loss ≤0.1 dB
Isolation degree >50 dB
Return loss >45 dB
Switching time >(10)^7
Switching condition Relative power difference and absolute power value
Switching method Support locking, forced switching, manual switching and automatic switching
Reliability Power down / power on latch, hot pluggable, and main control card failure does not affect protection switching
Additional Specifications
Base Unit pc(1)
Category OFC Passive Devices
SKU
Product Code 76
Trackable Yes
Taxable Yes
