Optical fiber Cable 6 core Steel

​The 6 Core Optical Fiber Cable with a 6mm diameter and steel strength members is designed to provide reliable and efficient data transmission for various applications. Below is an overview of its key aspects:​

1) Product Introduction: This cable incorporates six optical fibers, typically single-mode, arranged symmetrically within the cable's core. The design includes a protective buffer layer around each fiber, with an overall reinforcement layer and an outer sheath to enhance mechanical strength and environmental protection.

2) Technical Parameters:

• Fiber Type: Single-Mode or Multi-Mode​
• Number of Fibers: 6​
•  Cable Diameter: Approximately 8-10mm​
• Strength Member: Steel wire or synthetic fiber reinforcement layer​
• Outer Sheath Material: High-Density Polyethylene (HDPE)​
• Tensile Strength: High tensile strength suitable for various environmental conditions​

3) Key Features:

• High Tensile Strength: The steel wire reinforcement provides excellent tensile strength, allowing the cable to withstand mechanical stresses during installation and operation.​
• Environmental Protection: The HDPE outer sheath offers resistance to environmental factors, making the cable suitable for both indoor and outdoor installations.​
• Efficient Data Transmission: The cable's design ensures low signal attenuation, supporting high-speed data transmission over long distances.​

4) Product Advantages:

• Durability: The robust construction with steel reinforcement ensures a long service life, even in demanding environments.​
• Versatility: Suitable for various applications, including telecommunications networks, CATV, and broadband infrastructure.​
• Cost-Effective: The cable's durability and performance can lead to reduced maintenance costs over time.​

This 6 Core Optical Fiber Cable with steel strength members is an excellent choice for projects requiring reliable and high-speed data transmission, combined with durability and flexibility to adapt to various installation environments.

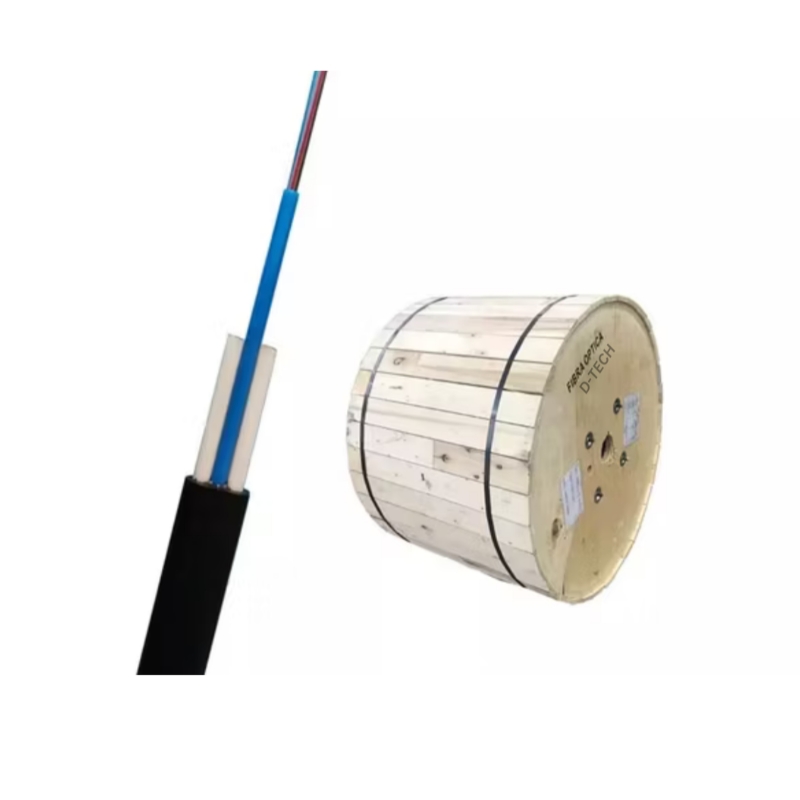

Product Overview of Optical fiber Cable 6 core Steel 6MM (Coil):

Acrylate primary coated fiber placed loosely in a jelly-filled uni-tube, HDPE jacketed, steel wire embedded in HDPE jackets as strength member, fiber optic cable for CATV application.

• Optical Characteristics or G 652D Fibers
• Attenuation (dB/Km) @1310nm@1550nm
• fiber cut off wavelength
• Mode Field Diameter @1310nm < 9.3+-0.5mm
• Mode Field Diameter @1310nm < 9.3+-0.5mm
• Mode Field Diameter @1550nm < 10.4+-0.5mm

Cable Construction Details of Optical fiber Cable 6 core Steel 6MM (Coil):

• No. of Fibers in Tube : 2/4/6/12 fibers per tube as per fiber count
• Loose Tube: PBT Loose Tube Filled in Thixotropic Jelly
• Strength Member: Fiber Reinforced Plastic
• Outer sheath: High density polyethylene - Black Color -1.8mm Nominal
• Standard Length: 3000m+- 10

Additional Information of Optical fiber Cable 6 core Steel 6MM (Coil):

Item Code	6F_FRP_OFC
Delivery Time	As per market Demand
Production Capacity	500 Km
Packaging Details	Roll And Drum
