Suspension Clamp 4.7-6.2 mm 207

Discover our latest products and services

Suspension Clamp 4.7-6.2 mm 207

Rs 0.00

(3 Reviews)
Product Info
  • Unit: pc(1)
  • Weight: 0.6000 kg
  • Product ID: 1369

Suspension Clamp Overview:

Suspension Clamps for Insulated Neutral Messenger System are used along with a bracket or other supporting hardware to suspend and grip, without damaging, the insulated neutral messenger of a LV-ABC system by means of an adjustable lock that accommodates a range of cable sizes. The clamp and bracket are available factory-assembled or separately.

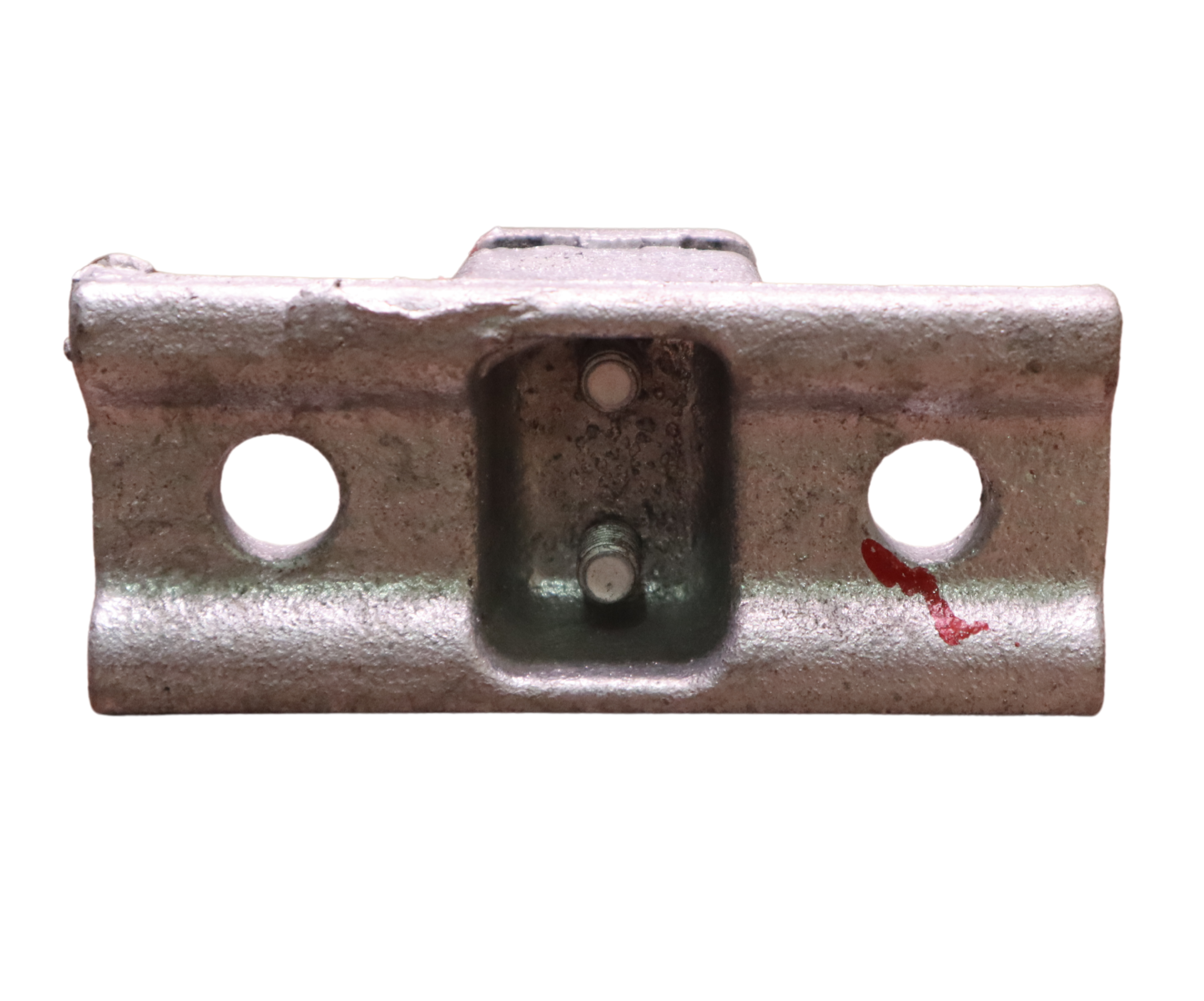

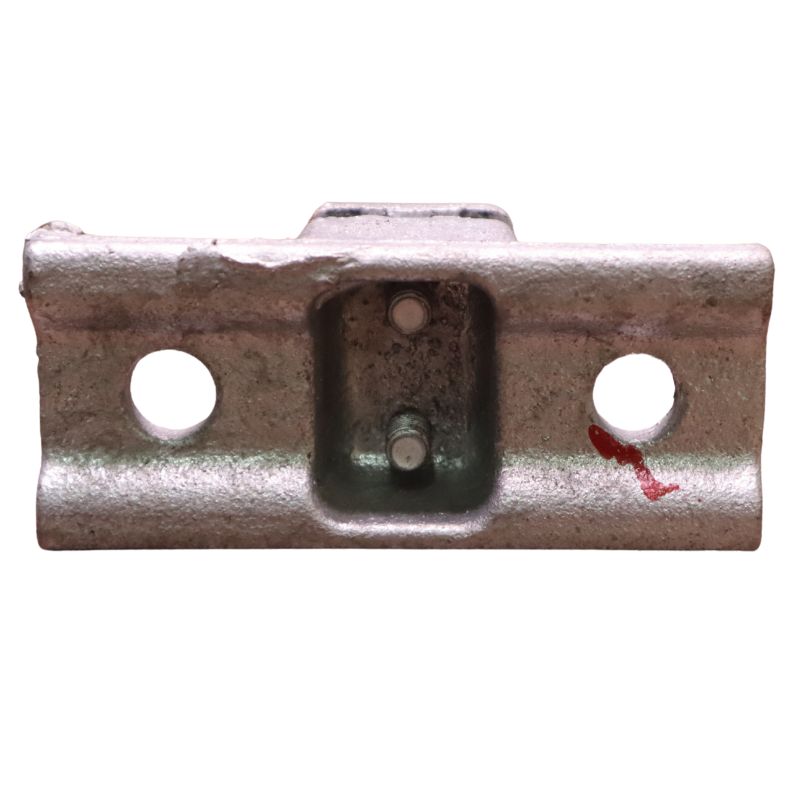

A suspension clamp designed for materials ranging from 4.7mm to 6.2mm in thickness, constructed from malleable cast iron, features two hexagonal bolts sized M6 with a length of 35mm. It is capable of withstanding a load of up to 3 kN. Additionally, there should be an indelible red marking clearly visible on the top of the groove."

Features & Benefits of Suspension Clamps:

  • Exceeds the requirements of NF C 33-040 and other international standards.
  • It withstands extreme conditions, leading to long life, safety, low maintenance, and reduced lifetime costs.
  • The engineering plastics used provide additional insulation and strength and enable live line working without additional tools.
  • The design facilitates longitudinal and transversal movements, allowing easy turning in congested areas.

Suspension Clamp Overview:

Suspension Clamps for Insulated Neutral Messenger System are used along with a bracket or other supporting hardware to suspend and grip, without damaging, the insulated neutral messenger of a LV-ABC system by means of an adjustable lock that accommodates a range of cable sizes. The clamp and bracket are available factory-assembled or separately.

A suspension clamp designed for materials ranging from 4.7mm to 6.2mm in thickness, constructed from malleable cast iron, features two hexagonal bolts sized M6 with a length of 35mm. It is capable of withstanding a load of up to 3 kN. Additionally, there should be an indelible red marking clearly visible on the top of the groove."

Features & Benefits of Suspension Clamps:

  • Exceeds the requirements of NF C 33-040 and other international standards.
  • It withstands extreme conditions, leading to long life, safety, low maintenance, and reduced lifetime costs.
  • The engineering plastics used provide additional insulation and strength and enable live line working without additional tools.
  • The design facilitates longitudinal and transversal movements, allowing easy turning in congested areas.
Additional Specifications
Weight 0.6000 kg
Base Unit pc(1)
Category OFC TELECOM GOODS
SKU
Product Code 47
Trackable Yes
Taxable Yes
