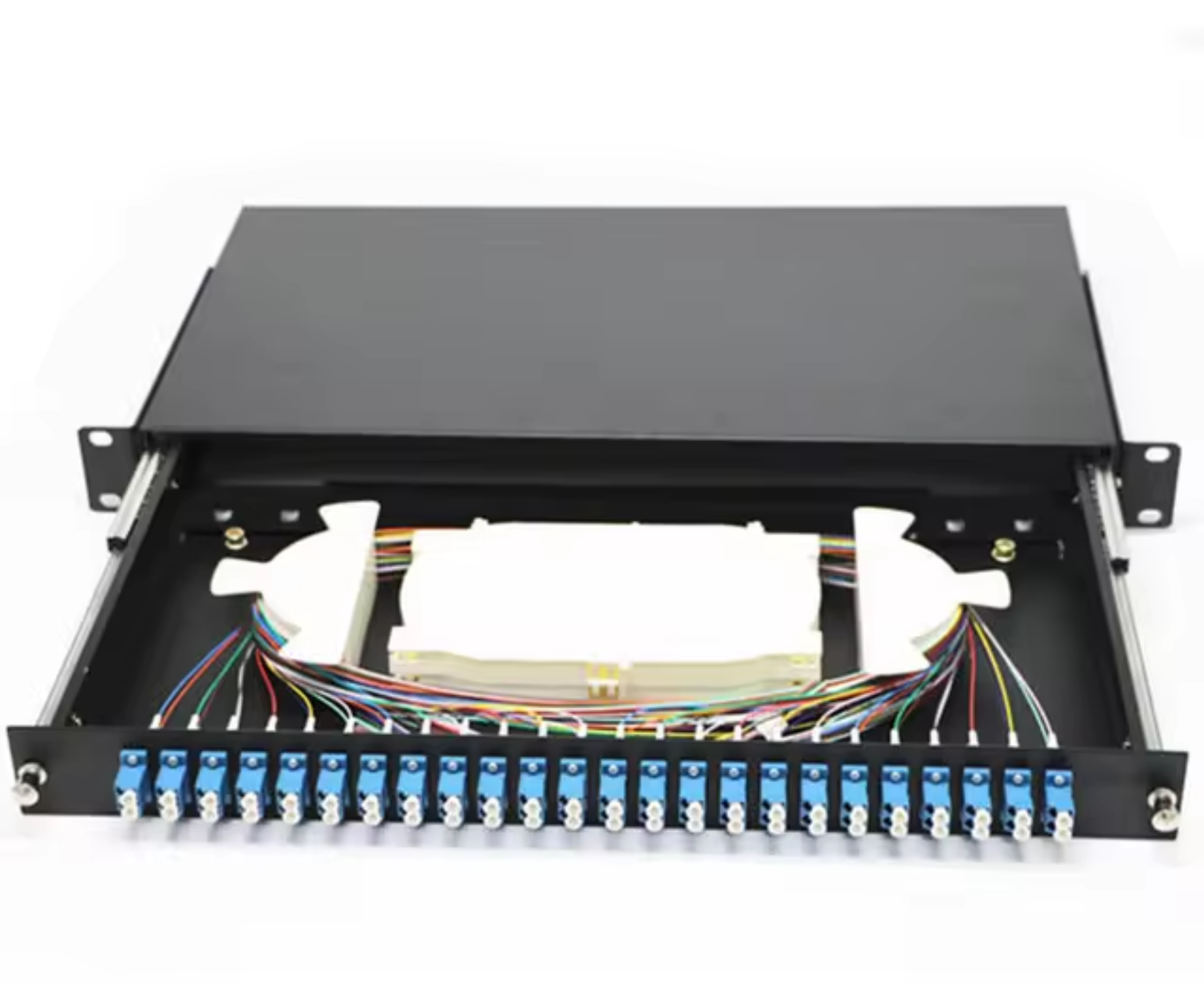

Patch Panel ODF 24 Core LC UPC 94
Discover our latest products and services
.png)
Product Info
- Unit: Set(1)
- Weight: 4.5000 kg
- Product ID: 526
Rack Mount Patch
Panel – Product Details
Description
This
rack mount patch panel is designed for terminating the provider's side of an optical fiber cable. Constructed from
high-quality steel, it allows splicing
of external optical fibers to pigtails. The unit includes splice trays for storing splices and spare fibers, while
pigtails are connected via simplex
adapters at the front. Ideal for rack or cabinet mounting in compact spaces, it ensures efficient fiber
patching management.
Features
a. Durable
Construction: Made
from top-quality steel with electrostatic paint for strength and an appealing
finish.
b. Compatibility: Fits standard 1U racks (custom widths
available upon request).
c. Stability: Fully stable design prevents movement
during operation.
d. Ease
of Use: Features a
rotate-style mechanism for easy access.
e. Cable
Management:
i.
Fiber
cables enter from the rear.
ii.
Patch
cords exit from the right front.
iii.
Full
front access for user convenience.
f. Adapter
Panels: Enable
quick and easy adapter installations.
g. Protection: Secures adapters, patch cords, and
pigtails in a safe environment.
h. High
Density: Supports
high-capacity fiber management (see capacity chart).
i. Adapter
Compatibility:
i.
FC,
SC simplex adapters.
ii.
LC
duplex adapters.
Dimensions and Capacity
|
Height |
Depth (mm) |
Width |
Max Capacity (Cores) |
|
1U |
300 |
Standard |
SC 24 /
LC 48 |
|
Customized designs
available upon request. |
Material Quality
|
Component |
Thickness (mm) |
|
Top/Bottom
of Box, Cabinet Frame |
1.2 |
Operating Conditions
|
Parameter |
Range |
|
Temperature |
-5°C to
60°C |
|
Humidity |
≤90% at
30°C |
|
Air
Pressure |
70 kPa to
100 kPa |
Shipping Information
|
Detail |
Specification |
|
Package
Contents |
Patch
panel (3–5 units) |
|
Package
Dimensions |
Varies
based on product size |
|
Material |
Carton
box |
|
Weight |
Depends
on product dimensions |
|
Lead Time |
10–15
working days (standard) |
Rack Mount Patch
Panel – Product Details
Description
This
rack mount patch panel is designed for terminating the provider's side of an optical fiber cable. Constructed from
high-quality steel, it allows splicing
of external optical fibers to pigtails. The unit includes splice trays for storing splices and spare fibers, while
pigtails are connected via simplex
adapters at the front. Ideal for rack or cabinet mounting in compact spaces, it ensures efficient fiber
patching management.
Features
a. Durable
Construction: Made
from top-quality steel with electrostatic paint for strength and an appealing
finish.
b. Compatibility: Fits standard 1U racks (custom widths
available upon request).
c. Stability: Fully stable design prevents movement
during operation.
d. Ease
of Use: Features a
rotate-style mechanism for easy access.
e. Cable
Management:
i.
Fiber
cables enter from the rear.
ii.
Patch
cords exit from the right front.
iii.
Full
front access for user convenience.
f. Adapter
Panels: Enable
quick and easy adapter installations.
g. Protection: Secures adapters, patch cords, and
pigtails in a safe environment.
h. High
Density: Supports
high-capacity fiber management (see capacity chart).
i. Adapter
Compatibility:
i.
FC,
SC simplex adapters.
ii.
LC
duplex adapters.
Dimensions and Capacity
|
Height |
Depth (mm) |
Width |
Max Capacity (Cores) |
|
1U |
300 |
Standard |
SC 24 /
LC 48 |
|
Customized designs
available upon request. |
Material Quality
|
Component |
Thickness (mm) |
|
Top/Bottom
of Box, Cabinet Frame |
1.2 |
Operating Conditions
|
Parameter |
Range |
|
Temperature |
-5°C to
60°C |
|
Humidity |
≤90% at
30°C |
|
Air
Pressure |
70 kPa to
100 kPa |
Shipping Information
|
Detail |
Specification |
|
Package
Contents |
Patch
panel (3–5 units) |
|
Package
Dimensions |
Varies
based on product size |
|
Material |
Carton
box |
|
Weight |
Depends
on product dimensions |
|
Lead Time |
10–15
working days (standard) |
Additional Specifications
| Weight | 4.5000 kg |
|---|---|
| Base Unit | Set(1) |
| Category | OFC Passive Devices |
| SKU | |
| Product Code | 72 |
| Trackable | Yes |
| Taxable | Yes |
