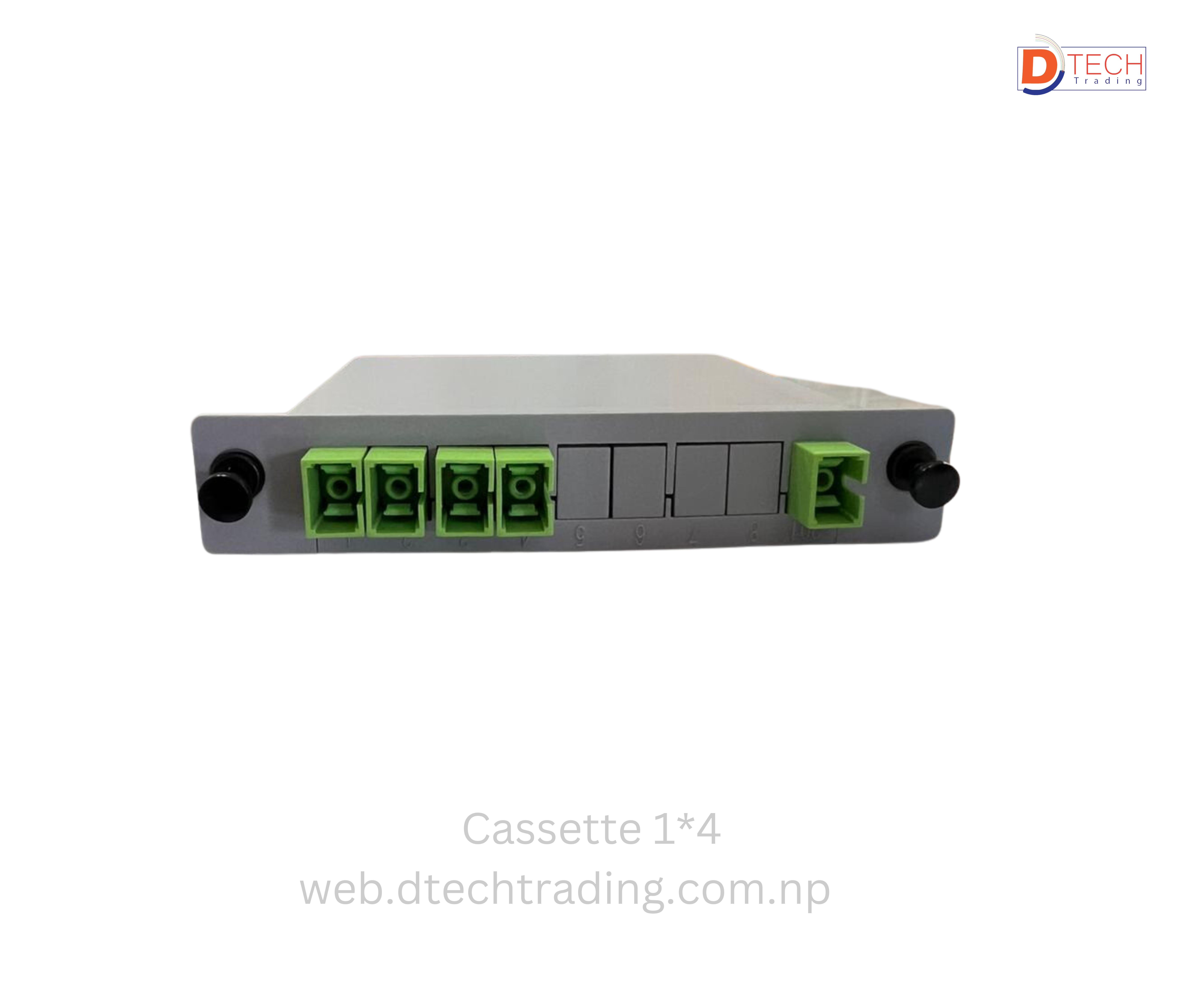

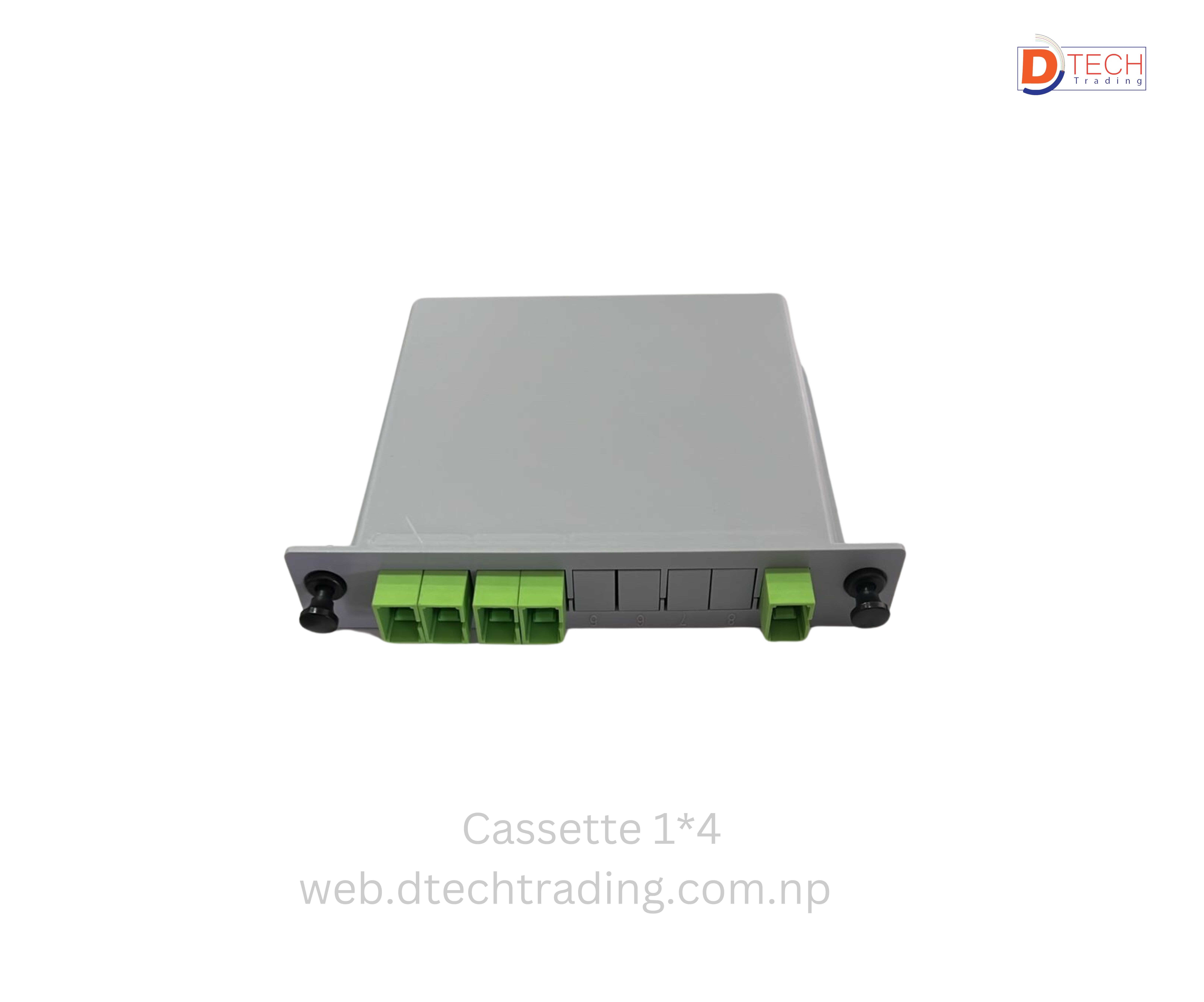

Cassette 1*4 SC/APC 33

The 1×4 SC/APC Cassette-Type PLC Splitter is a compact and highly reliable passive optical device designed for evenly splitting one input fiber into four output fibers with minimal loss. Housed in a robust, modular cassette form factor, this splitter is ideal for high-density FTTx (Fiber to the x), PON(Passive Optical Network), and data center applications.

          Key Features:

1.     Splitter Type: Planar Lightwave Circuit (PLC)

2.     Configuration: 1 input × 4 output

3.     Connector Type: SC/APC (blue housing, ultra physical contact)

4.     Fiber Type: Single-mode G.657A1 or G.652D (customizable)

5.     Insertion Loss: ≤ 7.3 dB (typical)

6.     Return Loss: ≥ 55 dB

7.     Uniformity: ≤ 0.8 dB

8.     Operating Wavelength: 1260 nm – 1650 nm

9.     Operating Temperature: -40°C to +85°C

10. Form Factor: Cassette-style ABS or LGX box (optional rack-mountable)

11. Cable Length: Typically 1.0m with 0.9mm or 2.0mm fiber (customizable)

          Applications:

1.     FTTH (Fiber to the Home) deployments

2.     PON/GPON/EPON networks

3.     CATV systems

4.     Optical signal distribution

5.     Data centers and telecom rooms

6.     Test and measurement environments

Technical Overview:

Utilizing advanced silica glass waveguide technology, this 1×4 PLC splitter ensures stable performance and uniform optical signal splitting. The SC/APC connectors provide low insertion loss and high return loss, making them suitable for sensitive optical systems.
