Product overview:

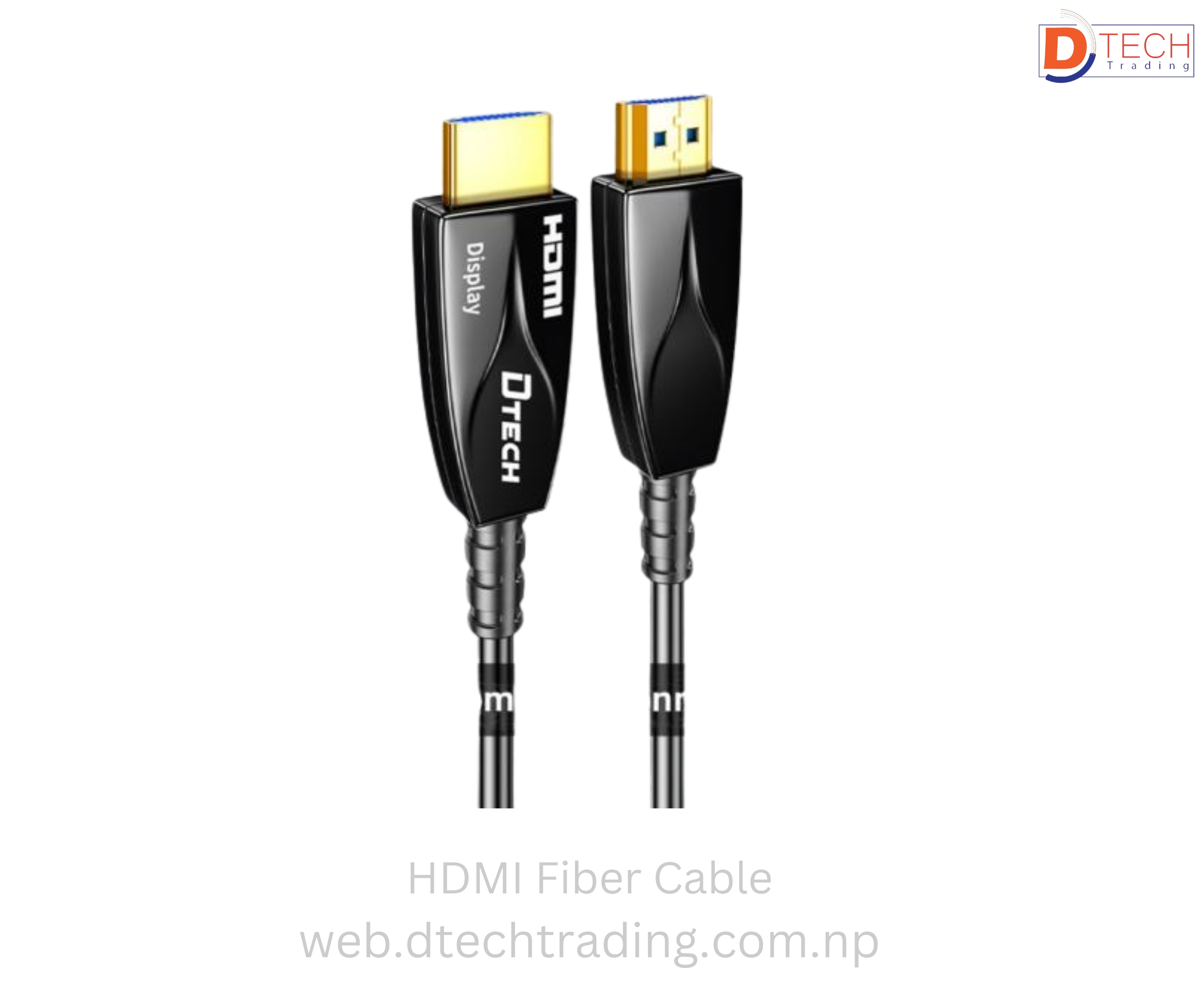

This product is an armored fiber optic HDMI2.0 cable, an easy-to-use secure connection for Home video distribution, conference room presentation systems, classroom projection systems, digital signage, and high-definition video displays. Fiber optics provide the speed and bandwidth needed for the highest image quality; there is no need for extenders, balanced-to-unbalanced conversion amplifiers, or amplifiers. DTECH fiber optic cables are EMI-free and can be installed with multiple cable pulls for remote assembly. Location provides flexibility. Support 18.2Gbps and 4K @ 60Hz performance, backward compatible with 1080P and 720P resolution; HDMI 2.0 compliant. Solve long-distance HDMI and hidden Frequently asked questions about shielding installations

Detailed parameters:

Data rate: 18.2 GB/s
Resolution: Up to 4K @ 60Hz
Supported functions: HDCP2.2, EDID, CEC, ARC
Audio: 32 uncompressed audio channels; 1563kHz sampling rate
Cable outer diameter: 4.8mm
Limit bending radius: 20mm
Tensile force tolerance: 25 kg
Lifting weight capacity: 15 kg
Working temperature: -20°C to +50°C

Performance report:

Product performance inspection report Product model:

DT-HF2000K Product name
HDMI 2.0 Fiber cable Test cycle time
72 hours

Parameters of instruments and equipment used in the test:

Signal Source	Display Device	Test Resolution
Sony Blu-ray player	Sony 55-inch 4K TV	1920x1080P60HZ, 3840x2160P60HZ
Samsung Blu-ray player	Samsung 48-inch 4K TV	1920x1080P60HZ, 3840x2160P60HZ
Soyo-assembled PC	Panasonic 40-inch 4K TV	1920x1080P60HZ, 3840x2160P60HZ
PS4 Game Console	Konka 40-inch 4K TV	1920x1080P60HZ, 3840x2160P60HZ
Apple Mini	Konka 43-inch 2K TV	1920x1080P60HZ, 3840x2160P60HZ
Apple TV	Sharp 40-inch 2K TV	1920x1080P60HZ, 3840x2160P60HZ
Mango Hi	Xiaomi 50-inch Display	1920x1080P60HZ, 3840x2160P60HZ
HUAWEI Box	LeEco 50-inch 4K TV	1920x1080P60HZ, 3840x2160P60HZ
Honor Box	Skyworth 50-inch 4K TV	1920x1080P60HZ, 3840x2160P60HZ
Jacko Blu-ray player	LG 50-inch 4K TV	1920x1080P60HZ, 3840x2160P60HZ
SL-881	TCL 50-inch 4K TV	1920x1080P60HZ, 3840x2160P60HZ
Hualu Blu-ray player	Toshiba 43-inch 4K TV	1920x1080P60HZ, 3840x2160P60HZ
Mi Box	Samsung 55-inch 4K TV	1920x1080P60HZ, 3840x2160P60HZ
Dell Notebook	Philips 28-inch 4K Monitor	1920x1080P60HZ, 3840x2160P60HZ
ASUS 950 graphics card	Samsung 40-inch 4K TV	1920x1080P60HZ, 3840x2160P60HZ
MSI 1050TI graphics card	Samsung (144HZ) 27-inch monitor	1920x1080P60HZ, 3840x2160P60HZ
MURIDEO transmit+receive		1920x1080P60HZ, 3840x2160P60HZ

Safety Precautions:

Do not use liquid or spray cleaners when cleaning; just use a damp cloth. Non-professionals are not allowed to disassemble the case to avoid damage to the product.
Keep away from moisture, magnetic, and flammable surfaces or substances.
Do not place any heavy objects or equipment on them.

Product accessories:

One fiber-optic cable. Note: Please check your accessories after unpacking; if the accessories are incomplete, please consult.

Installation matters:

Carefully open the contents of the shipping group and close the entire system before connecting
Plug the DTECH cable labeled "Source" into the connector on the end of the silver shell directly into the HDMI output of the video source. Out ports (DVD, Blu-ray, gaming enclosures, etc.). Make sure the cable is inserted firmly.
Insert one end of the DTECH cable marked with "Display" into the HDMI input port of the monitor (HDTV, LCD screen, projector, etc.). Make sure the cable is inserted firmly.
Turn on the power of the signal source and display NOTE: Do not connect any intermediate cables or adapters between them, as this may cause signal transfer Performance drops
