Fiber Preparation Tool

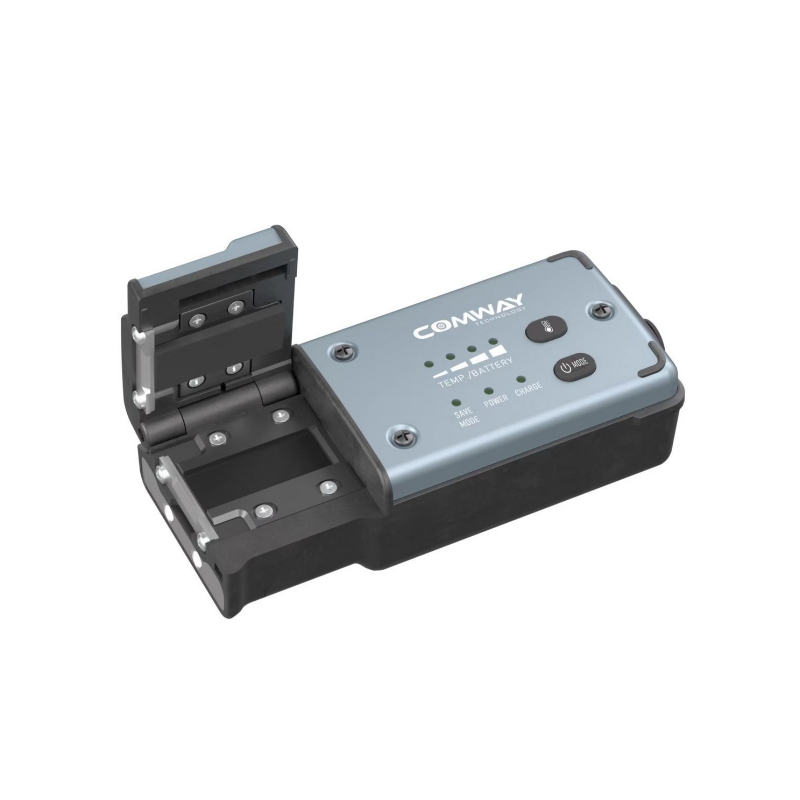

Fiber Stripping Tool CS-06

Professional thermal fiber stripping tool designed for bundle fibers, ribbon fibers, bare fibers, pigtails and invisible optical fibers. Compact, lightweight and powered by a rechargeable lithium battery for field deployment.

Heating Time

4–5 sec

Battery

2000mAh

Charging

USB-C

Weight

290 g

Product Overview

The CS-06 Fiber Stripping Tool is a precision thermal stripping device engineered for optical fiber installation and maintenance. It supports multiple fiber types with adjustable heating temperatures, fast stripping cycles, USB Type-C charging, and long battery endurance, making it ideal for FTTH, FTTx, ISP, and telecom applications.

Key Features

✔ Supports bundle, bare, pigtail, ribbon and invisible fibers

✔ Adjustable heating temperatures (90°C–140°C)

✔ Fast stripping in approximately 4–5 seconds

✔ USB Type-C fast charging

✔ Long battery life up to 660 stripping cycles

✔ Compact and lightweight portable design

Technical Specifications

Parameter	Specification
Model	CS-06
Applicable Fiber	Bundle Fiber, Bare Fiber, Pigtail Fiber, Ribbon Fiber, Invisible Fiber
Number of Stripped Fiber	Bundle Fiber: 1–12 cores Bare Fiber: 1–36 cores Pigtail Fiber: 1 core Ribbon Fiber: 2–36 cores Invisible Fiber: 1–12 cores
Cladding Diameter	125 µm
Coating Diameter	200 – 400 µm
Stripping Length	Up to 30 mm
Power Mode	Normal Mode / Power Save Mode
Temperature Setting	Approx. 90°C / 100°C / 110°C / 140°C
Heating Time	Normal Mode: Approx. 4 seconds Power Save Mode: Approx. 5 seconds
Battery	Lithium-ion Battery 7.4V / 2000mAh
Endurance	Approx. 660 stripping cycles per full charge
Power Supply	USB Type-C (5V–20V, Max 20W)
Operating Conditions	Temperature: -10°C to +40°C Humidity: 0% – 95%
Dimensions	108 × 48 × 32 mm
Weight	290 g
