Fiber ENCLOSURE (FTTH Networking) CH 288

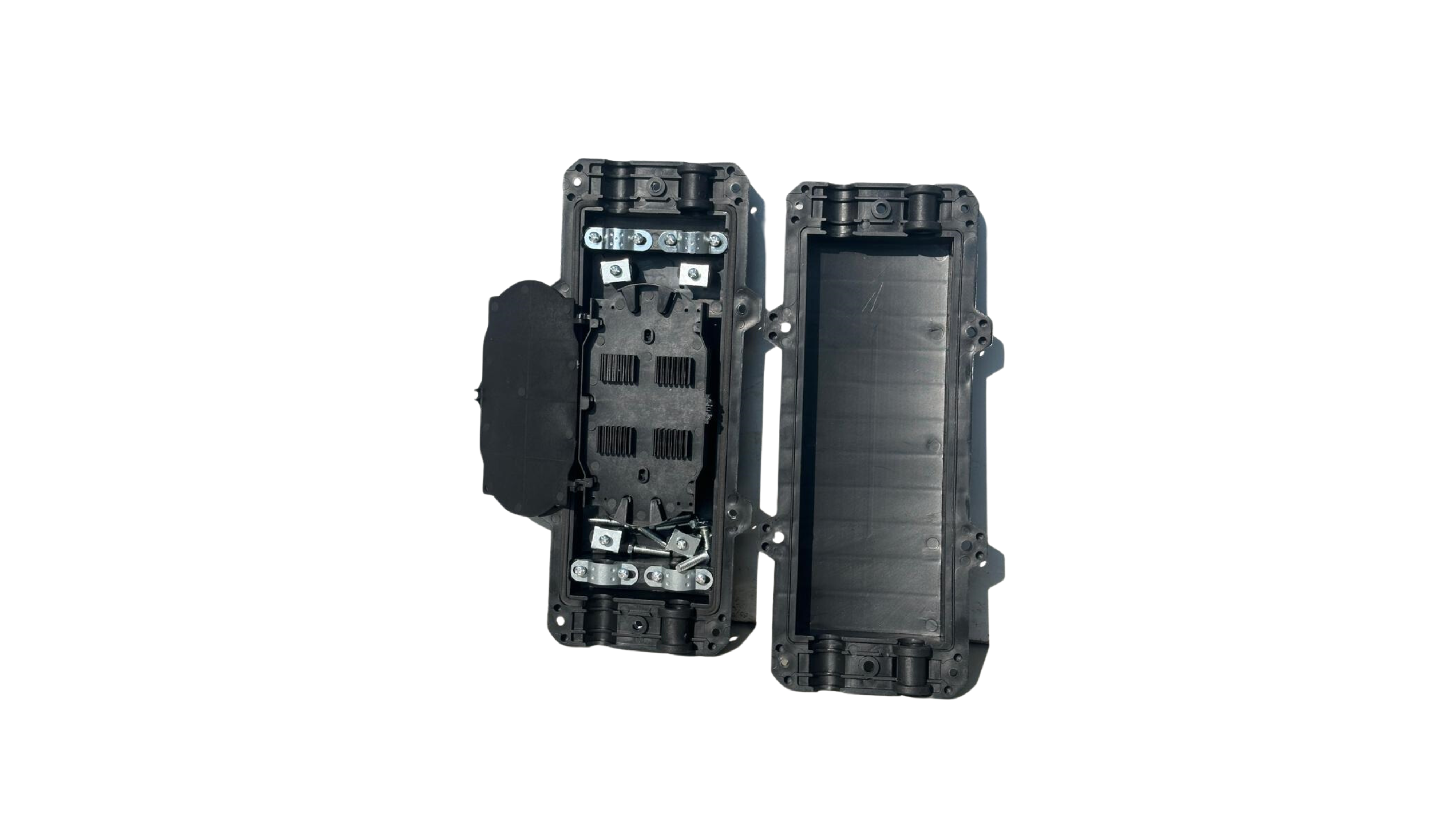

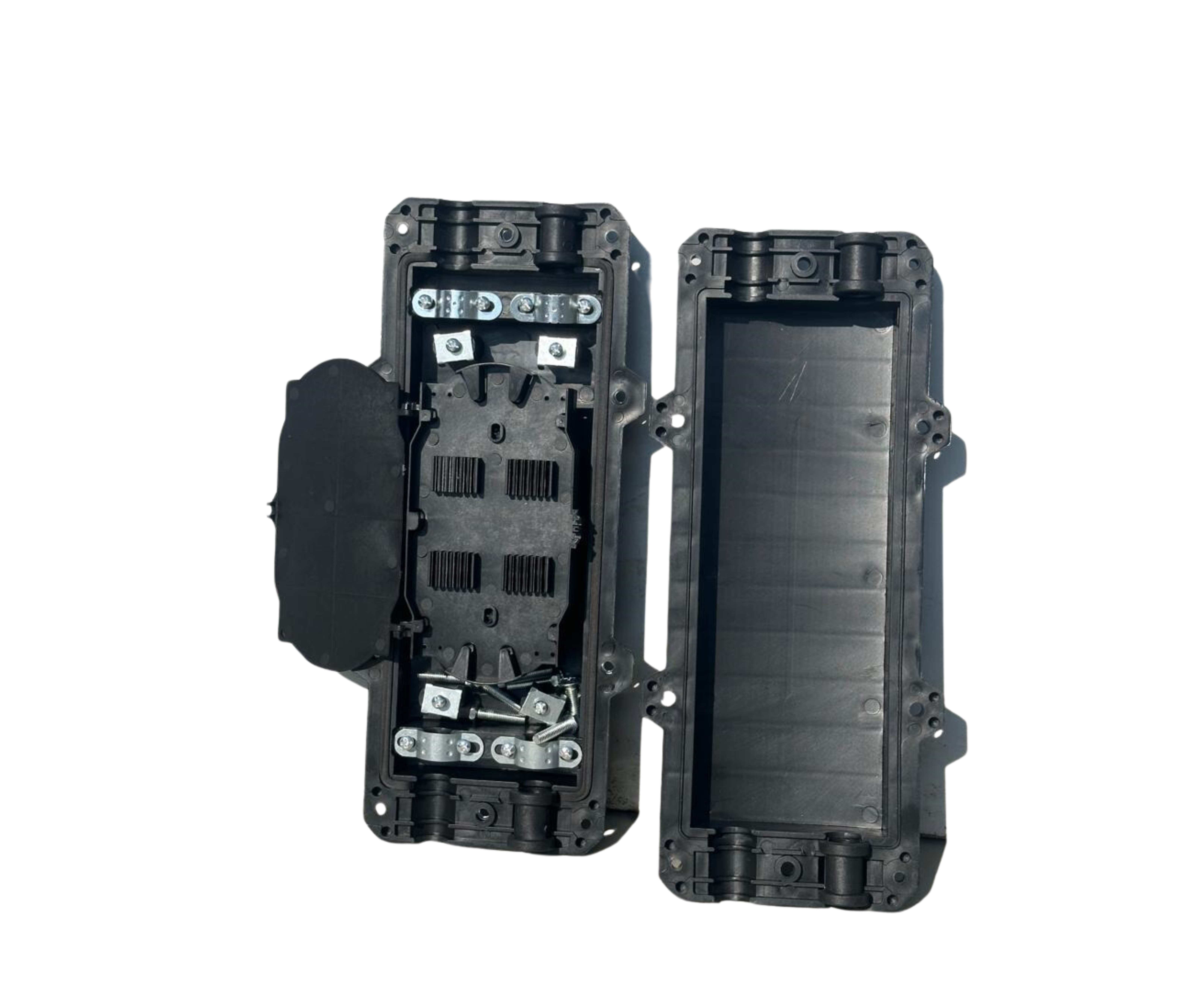

Fiber Optic Splice Closure

Overview

FH-F102 fiber optic splice closures (FOSC) are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. Applicable to situations such as overhead, man-well of pipeline, embedded situation etc

Features
 The protection grade reaches IP 65.
Aerial and wall-mounting.
Ambient temperature ranges from-20 to 55°C.
The closure is of small volume, big capacity and convenient maintenance. The closure casing
is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.

The mechanical structure is reliable and has the performance of resisting wild environment
and intensive climate changes and serious working environment.
The splice trays(FOST) inside the closure are tum-able like booklets, and have adequate
curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm. Each optical cable and fiber can be operated individually.
Dimensions and Capacity
Outside Dimensions (L*W*H) 320mm*150mm*70mm Weight (excluding outside box) 560g
Number of Inlet / Outlet Ports 2 pieces / 2 ports Diameter of Fiber Cable 4-20mm
Capacity of FOSC Bunchy: 12 cores -24 cores t Shipping Information
