Overview:

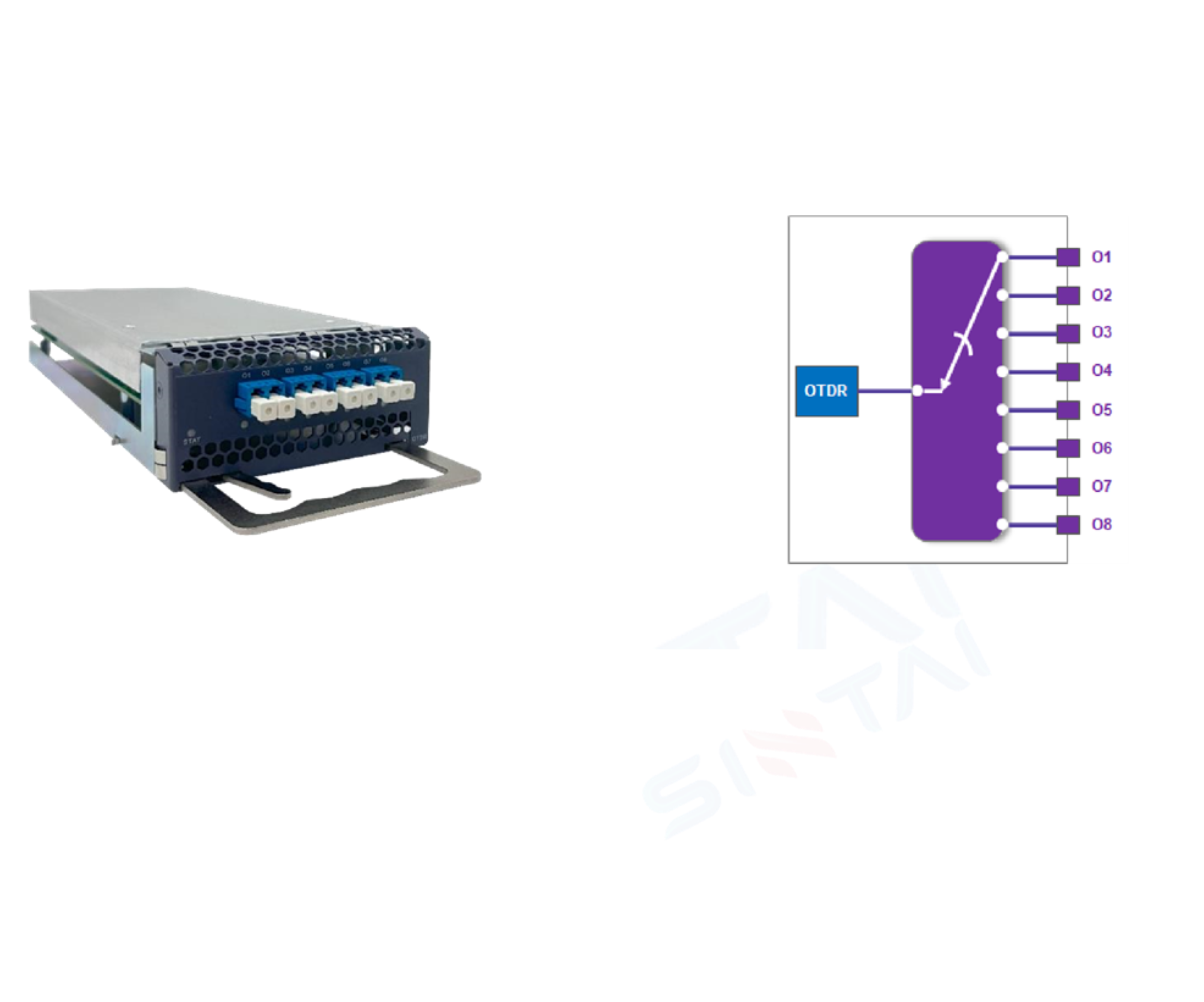

The optical line monitoring card (OTDR) launched by Eman Communicaions supports the monitoring of 8-core optical fiber links, which is used to transmit probe light, analyze the power of the detection signal reflected by the optical reflector, and carry out fault location and performance statistics of optical fiber lines. With the outstanding characteristics of high dynamic range and high-level resolution, it is an essential core device in optical transmission system.
Product Description:
Application:
- Suitable for rapid diagnosis and centralized management of optical fiber faults.
Product Specification:
|
Function |
It supports the testing of parameters such as distance, attenuation and total loss of optical fiber links. |
|
Slot number |
1 Slot |
|
port |
Provide 8 test interfaces(selected by optical switch) |
|
Working wavelength |
1625nm |
|
Dynamic range |
>=30db |
|
Pulse width range |
0.02 _20us |
|
Max detection distance |
>=80 km |
|
Loss test accuracy |
+=0.5dB |
|
Distance test accuracy |
<20m |
|
Event blind zone |
<10m |
|
Attenuation blind zone |
<20m |
