Face Plate ONU XPON HSGQ-853

Face Plate ONU  Description:

1*GPON and EPON adaptive PON interface

1*10M/100M/1000M RJ45 adaptive interface

1*POTS RJ11 voice interface

Management function features of Face Plate ONU :

•  Support port speed limit and bandwidth control
•  Fully compatible with IEEE802.3ah Standard and ITU-U G.984
•  Support up to 20KM transmission distance
•  Support data encryption, broadcast suppression, VLAN configuration, etc.
•  Support dynamic bandwidth allocation (DBA) )
• Support ONU automatic discovery/link detection/remote software upgrade
• Support port VLAN mode configuration
• Support power-down alarm
• Support broadcast suppression
• Support port isolation
• Support flow control
• Support ACL
• Support TR069 management method
• Support PPPoE/ DHCP Server/IPTV/VoIP/NAT

Face Plate ONU Parameter:

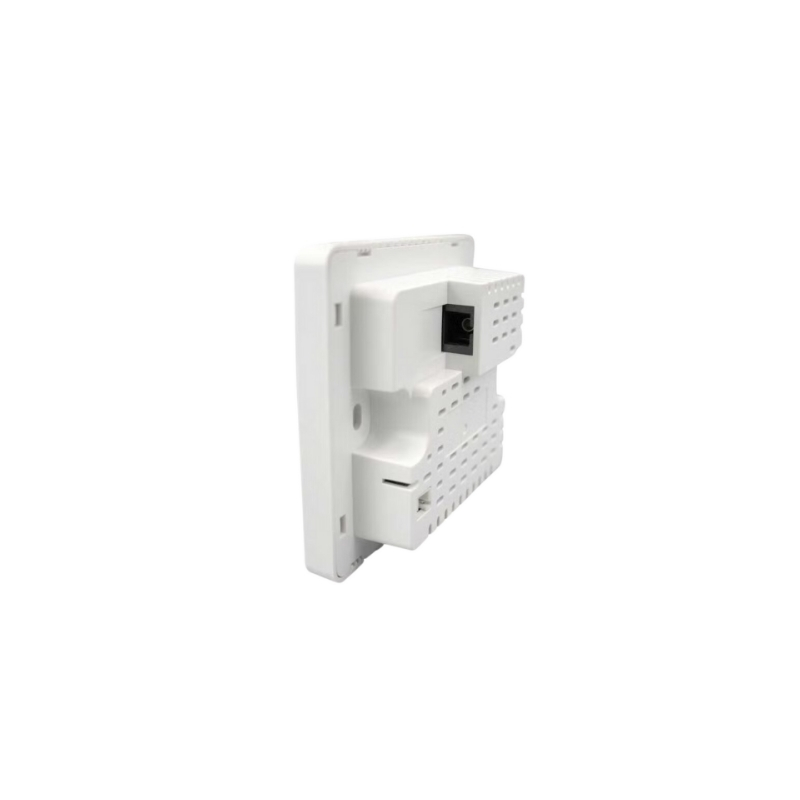

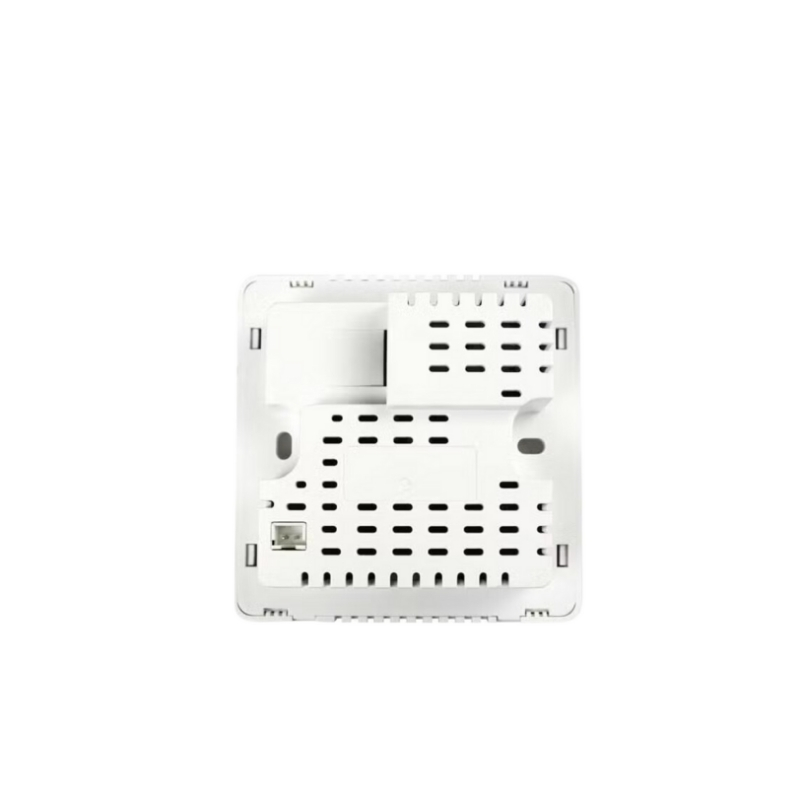

• 86mm X 86mm panel ONU
• wall or desk desktop, elegant and space-saving.
• 11000M adaptive electrical port+1 voice port
• Support EPON/GPON mode and automatic switching mode
• Support HGU&SFU two morphological modes
• The transmission distance can reach 20KM
