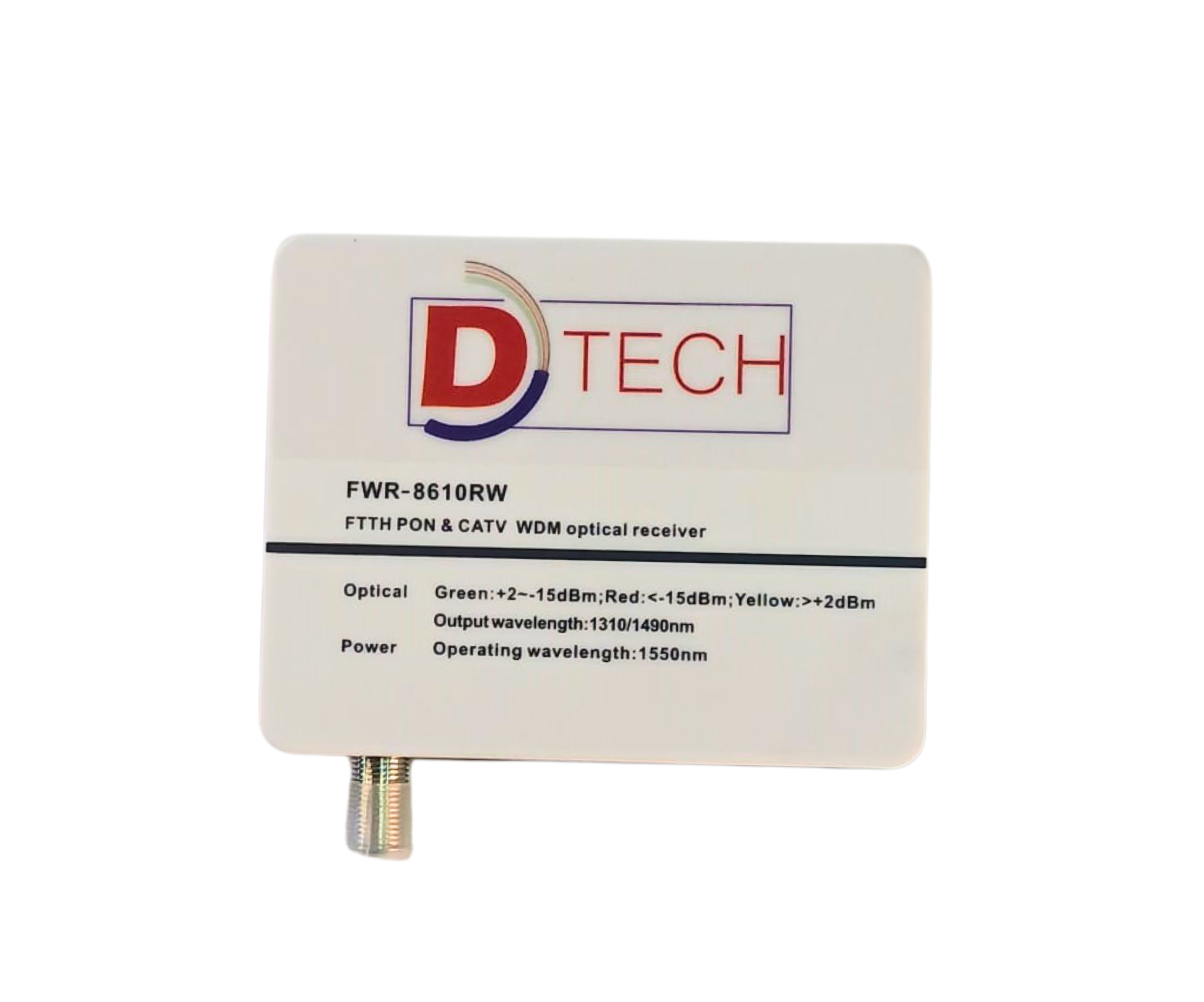

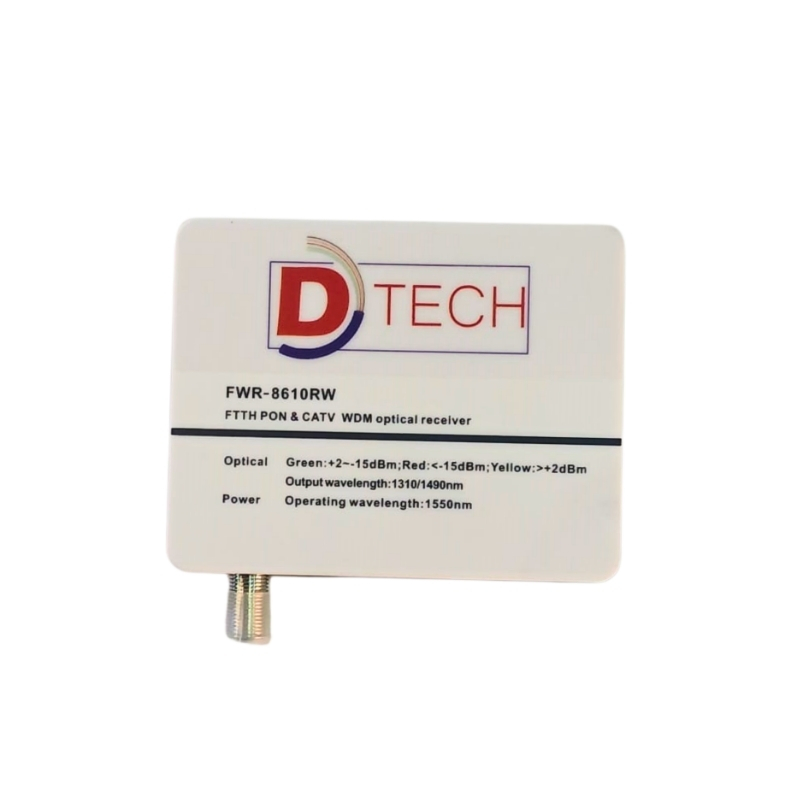

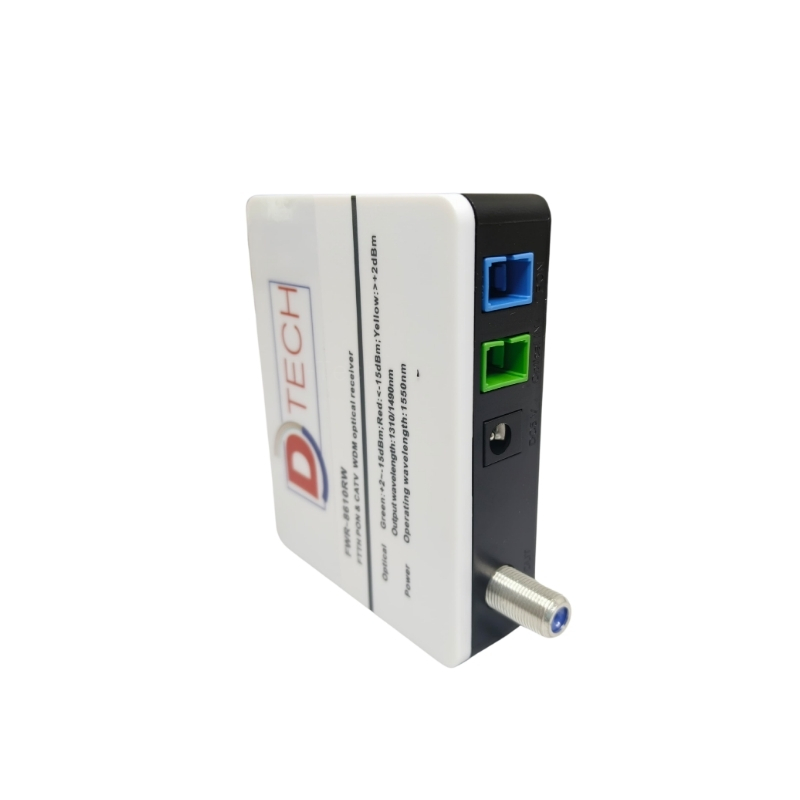

FTTH PON & CATV WDM OPTICAL RECEIVER

1. Introduction
Fiber to the home ( FTTH ) broadband access is the ultimate development goal, the FWR-8610RW optical receiver is the target terminal products for this goal. FWR-8610W device adopts the technology of high isolation WDM in order to separate CATV and ONU signal. Furthermore, it also adopts low optical power receiving and RF-AGC control technique, which could achieve the requirement of ≤-9dBmCATV receiving for FTTH. The optical power receiving monitoring indicator LED ( ≥-15dBm) is provided on the pane and it supports RF outputs constantly, the convenience of customers use, which is the ideal receiver equipment for FTTH


Technical Index

ItemUnitPerformance Parameter
Optical  characteristicinput wavelength(nm)1310,1490,1550
 Output wavelength(nm)1310,1490
 operation wavelength(nm)1540~1560
 channel separation(dB)≥40(1310/1490nm and 1550nm )
 response(A/W)≥0.9
 receive power range(dB)+3~-18
 reflection loss(dB)≥55
 fiber linker/SC/UPC and SC/APC
RF characteristicBandwidth/flatnessMHz/dB47-1000/≤±1
 output leveldBuv82/76/70±1/(-2~--9/-12/-15dBm)
 output level adjustmentdB0~-18
 reflection lossdB≥14(75Ω characteristic impedance)
 RF output interface/Metric (one-way output)
 CNR/MERdB≥44/34(PAL-D 60CH,OMI3.8%,-9dBm)
 CTB/CSO/HUMdB≥65/≥60/≥60(-1dBm receive)
Another requirementpower supply/consumptionV/WExternal AC155~255V→DC12,/5
 working/storage temperatureºC-35~50/-40~75(humidity 5~90%)
 sizemm130×60×22

Packing: 1 pc per inner box, 80 Pcs Per carton
