Horizontal Enclosure 48 core 120

Discover our latest products and services

Horizontal Enclosure 48 core 120

Rs 3252.21

(3 Reviews)
Product Info
  • Unit: pc(1)
  • Product ID: 1043

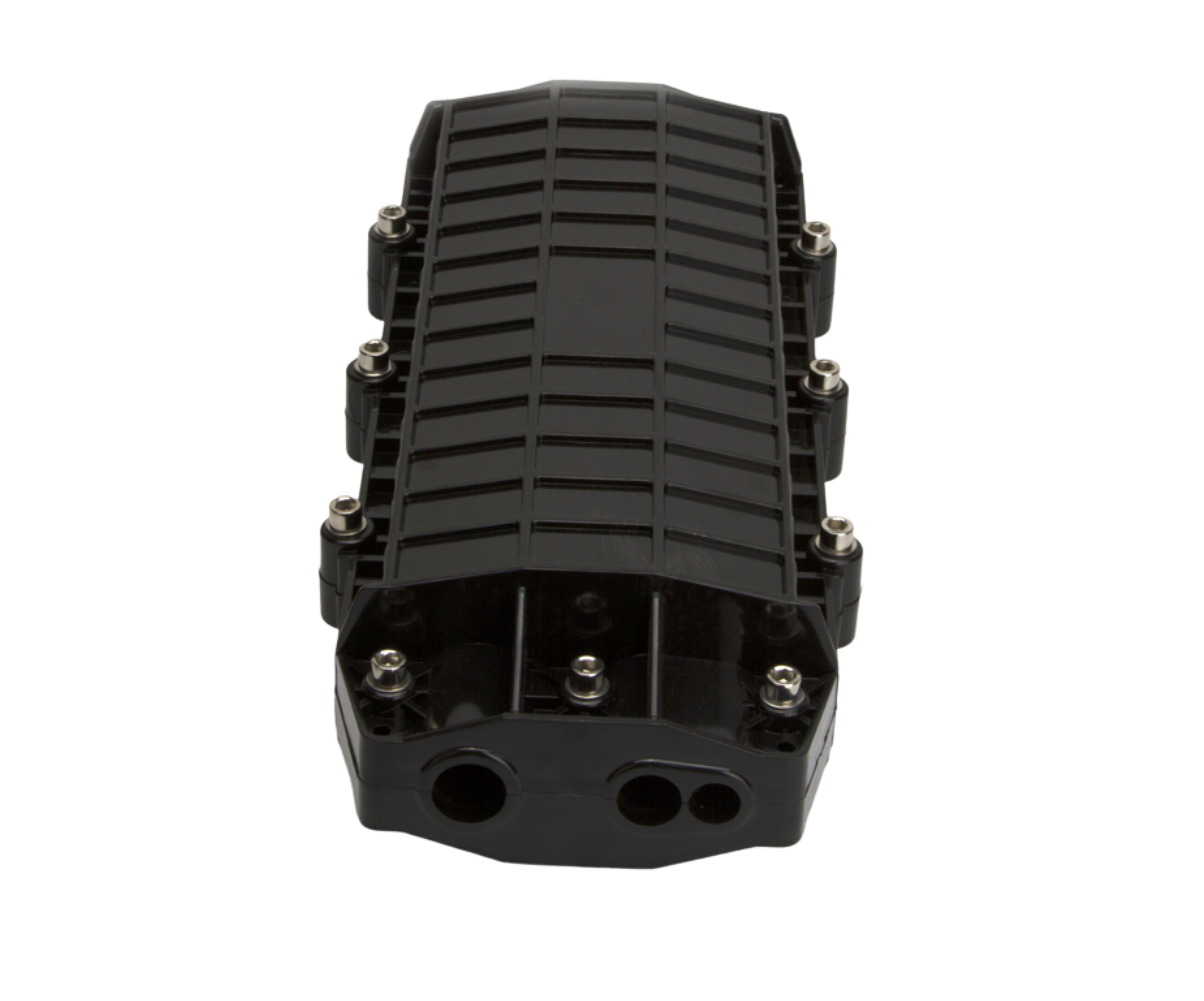

 Fiber Optic Splice Closure

Overview

FH-F102 fiber optic splice closures (FOSC) are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of  the closure. There are two connection ways: direct connection and splitting connection. Applicable to situations such as overhead, man-well of pipeline, embedded situation etc.

          Features

a.      The protection grade reachFH-F102 fiber optic splice closures (FOSC) are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. Applicable to situations such as overhead, man-well of pipeline, embedded situation etc.FH-F102 fiber optic splice closures (FOSC) are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. Applicable to situations such as overhead, man-well of pipeline, embedded situation etc. es IP 68.



b.     Aerial and wall-mounting.



c.      Ambient temperature ranges from-40 to 60.



d.     The closure is of small volume, big capacity and convenient maintenance. The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.



e.      The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.

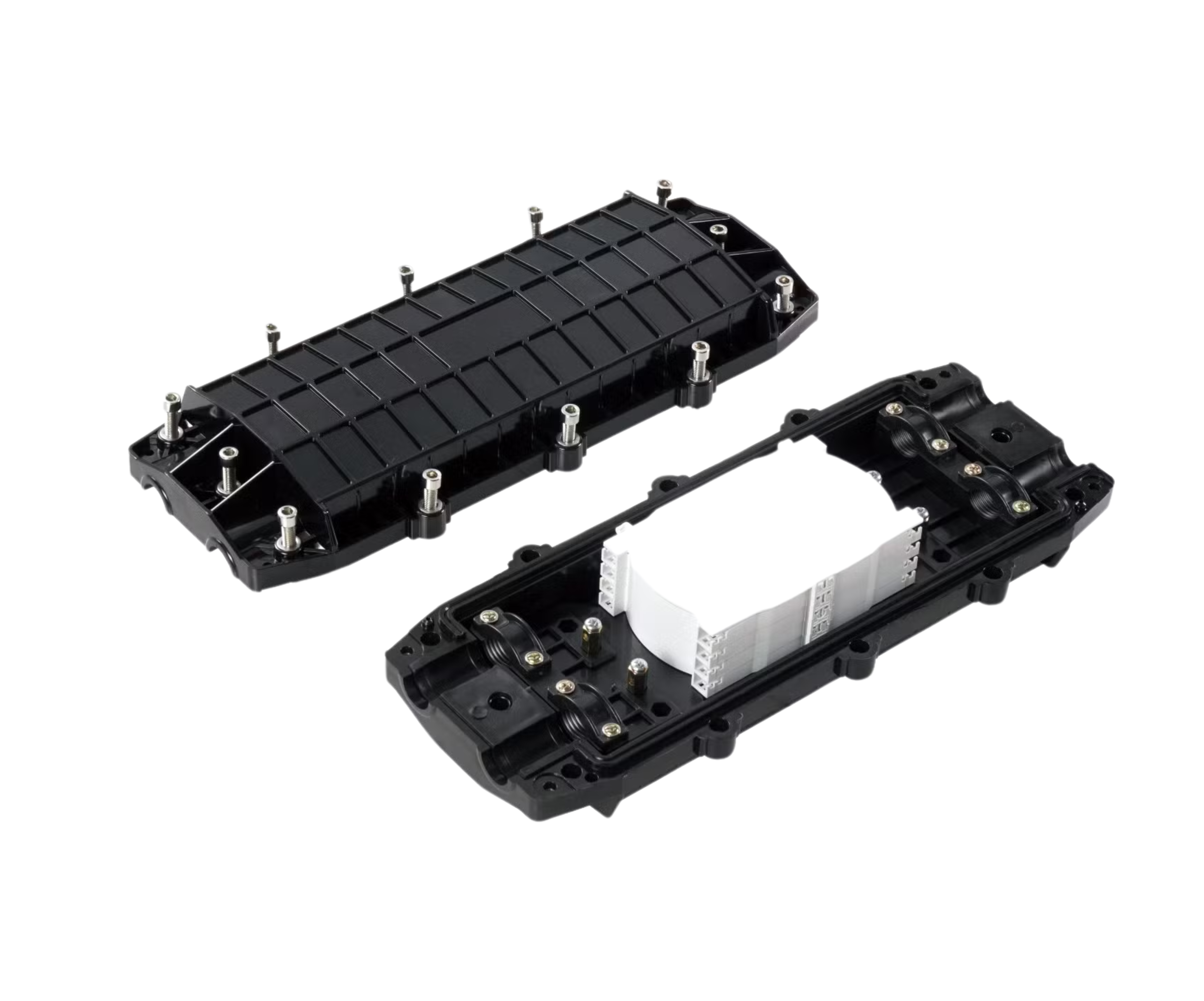

f.       The splice trays (FOST) inside the closure are tum-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm. Each optical cable and fiber can be operated individually.



Specifications

Details

Outside Dimensions (L × W × H)

450mm × 170mm × 100mm

Weight (excluding outside box)

2kg

Number of Inlet / Outlet Ports

2 pieces / 2 ports

Diameter of Fiber Cable

4–20mm

Capacity of FOSC

Bunchy: 12 cores–48 cores



 Fiber Optic Splice Closure

Overview

FH-F102 fiber optic splice closures (FOSC) are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of  the closure. There are two connection ways: direct connection and splitting connection. Applicable to situations such as overhead, man-well of pipeline, embedded situation etc.

          Features

a.      The protection grade reachFH-F102 fiber optic splice closures (FOSC) are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. Applicable to situations such as overhead, man-well of pipeline, embedded situation etc.FH-F102 fiber optic splice closures (FOSC) are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. Applicable to situations such as overhead, man-well of pipeline, embedded situation etc. es IP 68.



b.     Aerial and wall-mounting.



c.      Ambient temperature ranges from-40 to 60.



d.     The closure is of small volume, big capacity and convenient maintenance. The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.



e.      The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.



f.       The splice trays (FOST) inside the closure are tum-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm. Each optical cable and fiber can be operated individually.



Specifications

Details

Outside Dimensions (L × W × H)

450mm × 170mm × 100mm

Weight (excluding outside box)

2kg

Number of Inlet / Outlet Ports

2 pieces / 2 ports

Diameter of Fiber Cable

4–20mm

Capacity of FOSC

Bunchy: 12 cores–48 cores



Additional Specifications
Base Unit pc(1)
Category OFC Passive Devices
SKU
Product Code 174
Trackable Yes
Taxable Yes
