Product Description:
G02 is a small-capacity cassette GPON OLT, meeting the requirements of ITU-T G.964/G.988 and relative standards of China Telecom/Unicom GPON, with super GPON access capacity, carrier-class reliability and a complete security function. It can satisfy long-distance optical fiber access requirements on account of its excellent management, maintenance, and monitoring capabilities, abundant service features, and flexible network mode. G02 can be used with network management system so as to provide users with comprehensive access and perfect solution

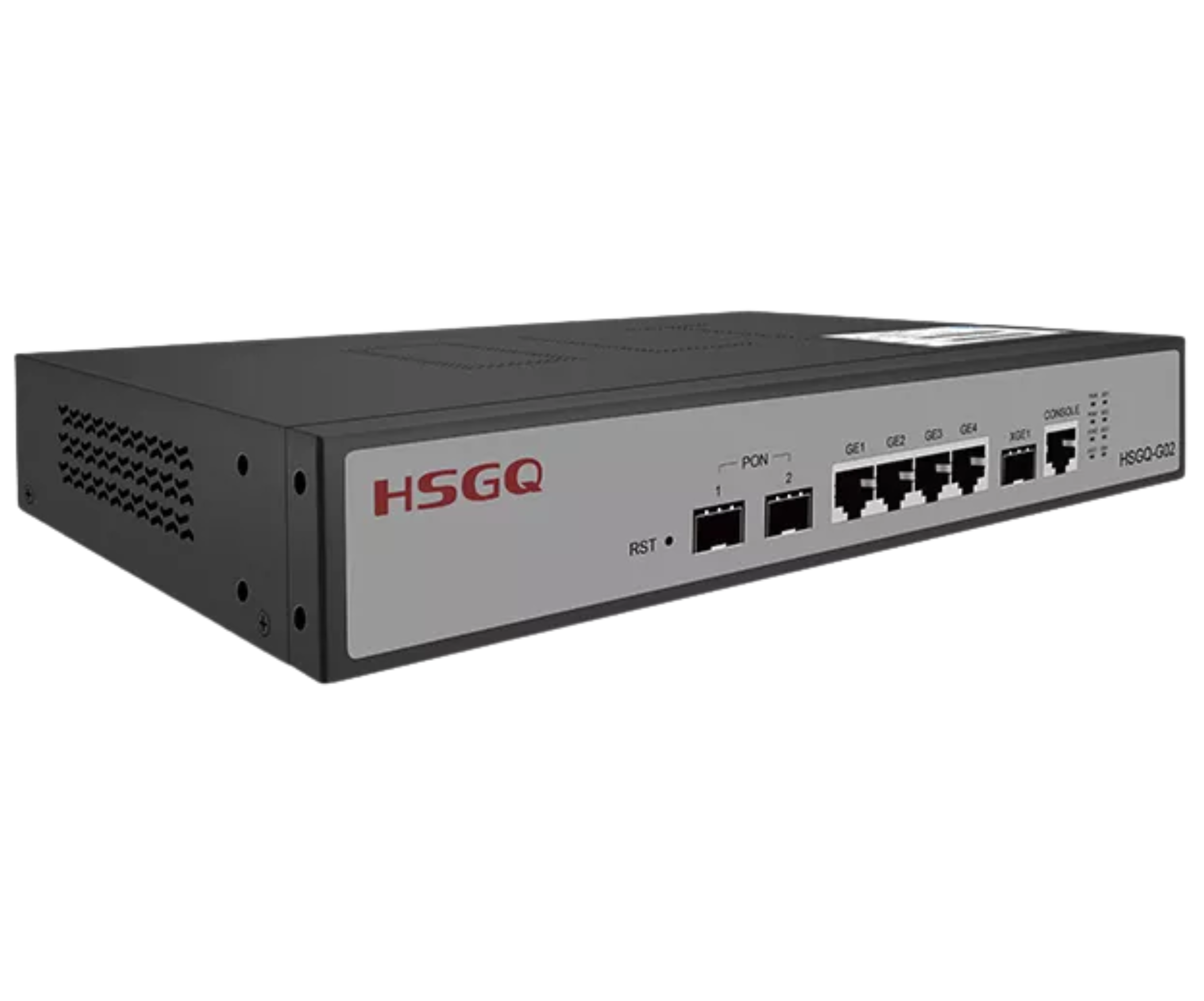

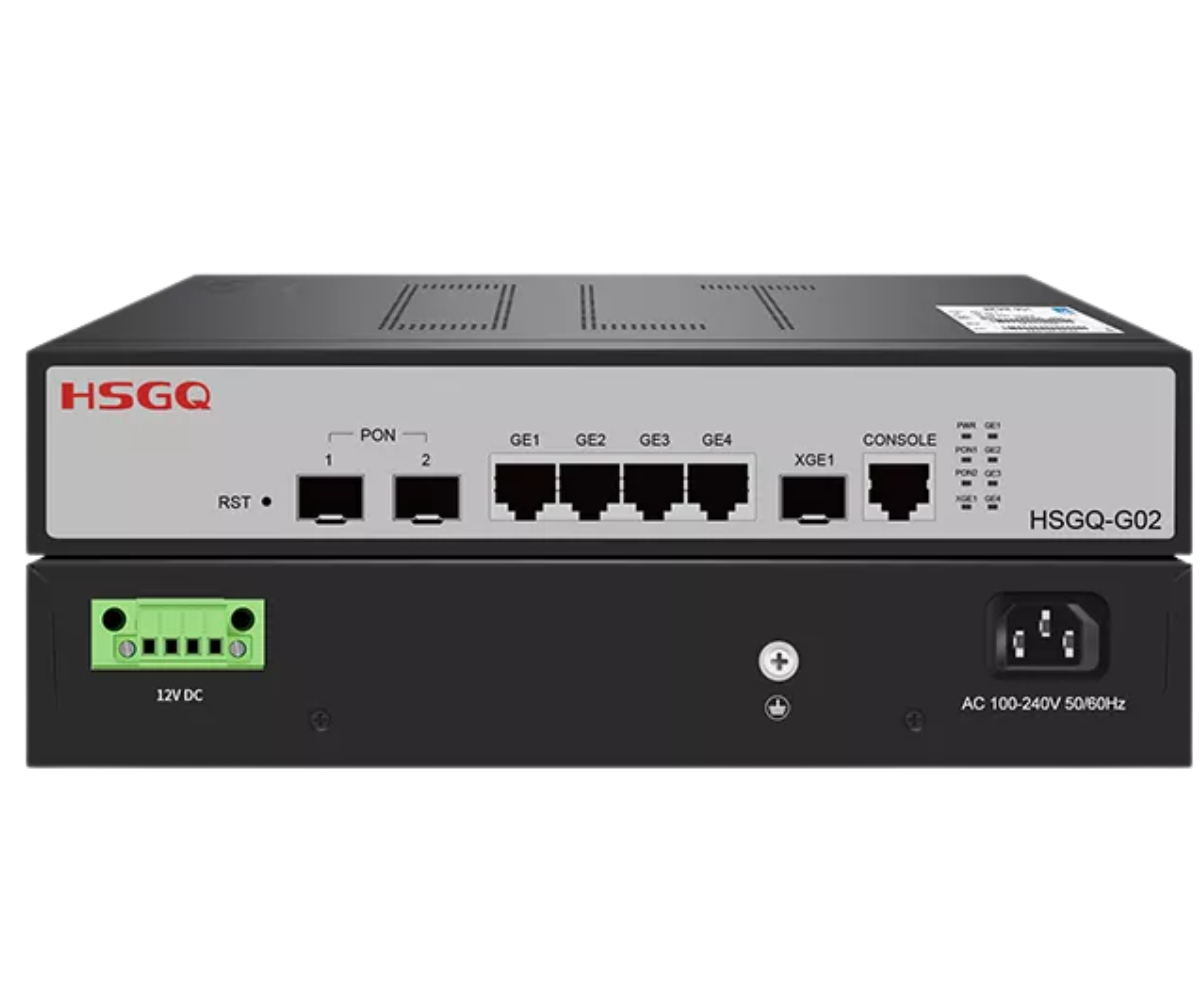

G02 provides 2-downlink GPON port, 4xGE RJ45 port, and 1-10G SFP+ port. The height is only 1U for easy installation and space-saving. G02 is suitable for Broadcast three-in-one, video surveillance network, enterprise LAN, Internet of Things, etc.
Product Specifications:
|
Category |
Description |
|
Product Specifications |
|
|
Interface |
2 GPON Ports |
|
4 x GE RJ45 |
|
|
1 x 10G SFP+ |
|
|
ITUT G.984.x/G.988 |
|
|
Password Authentication Modes |
Terminal Access |
|
Distance |
Up to 60km on a single fiber |
|
Split Ratio |
1:128 split ratio on single PON port |
|
DBA Algorithm |
Particle for 64 Kbs |
|
Management Functions |
Standard OMCI management function |
|
ONU batch software upgrade |
|
|
PON port optical parameter detection |
|
|
Auto registration ONU bound with default profile |
|
|
Memory |
128MB |
|
Flash |
512MB |
|
DDR Size |
|
|
Weight |
<5kg |
|
Management Ports |
Console port |
|
Environment |
Operating Temperature: -10°C - 55°C |
|
Storage Temperature: -40°C ~ 70°C |
|
|
Storage Humidity: 5%–95% (non-condensing) |
|
|
Power Supply |
AC 100V-240V 50/60Hz |
|
DC 12V |
|
|
Redundancy Design |
dual power supply can be chosen |
|
Power Consumption |
<10W |
|
Platform Management Features |
|
|
Device List |
Project Management |
|
Version Release |
|
|
License Management |
|
|
Permission Management |
|
|
User Management |
|
|
CLI, WEB, SNMP, NMS, and CLOUD |
|
|
Software and Bootrom Upgrade by TFTP and FTP |
|
|
Product Specifications |
Status |
|
L2 Function |
|
|
PON Status |
|
|
Uplink Status |
|
|
Performance Monitor |
|
|
System Monitor |
|
|
Support VLAN |
|
|
Support Port Mirror |
|
|
Support Storm Control |
|
|
Support IGMP Snooping/Proxy |
|
|
Support MAC Black Hole |
|
|
Support Port Isolation |
|
|
Encryption of PON port transmitting data |
|
|
Key Features |
|
|
MAC Address Table |
18K MAC address table |
|
DBA |
Flexible DBA for up-and-down traffic speed control |
|
Traffic Control |
Port-based traffic control |
|
Traffic shaping |
|
|
ONL Identification |
Automatic identification, auto-discovery, and auto-registration |
|
VLAN Support |
Flexible and controllable multicast support supports IGMP snooping |
|
Cloud Management |
|
|
Product Advantages |
|
|
Uplink Flexibility |
Support for electrical and optical modules and flexible configuration according to different networking |
|
Optical Link Diagnosis |
Warning mechanism for optical links |
|
High Reliability |
Dual power supply support |
|
Dimension |
1U cassette design saves space and has low power consumption |
|
Capacity |
Each PON supports up to 128 terminals; the whole device supports up to 256 ONUs under full configuration. |
|
Ordering Information |
|
|
Product Model |
HSGQ-G02 |
|
Description |
2 GPON Ports |
|
4 x GE RJ45 |
|
|
1 x 10G SFP |
