P614 (400G Muxponder Service Board)

Product Description

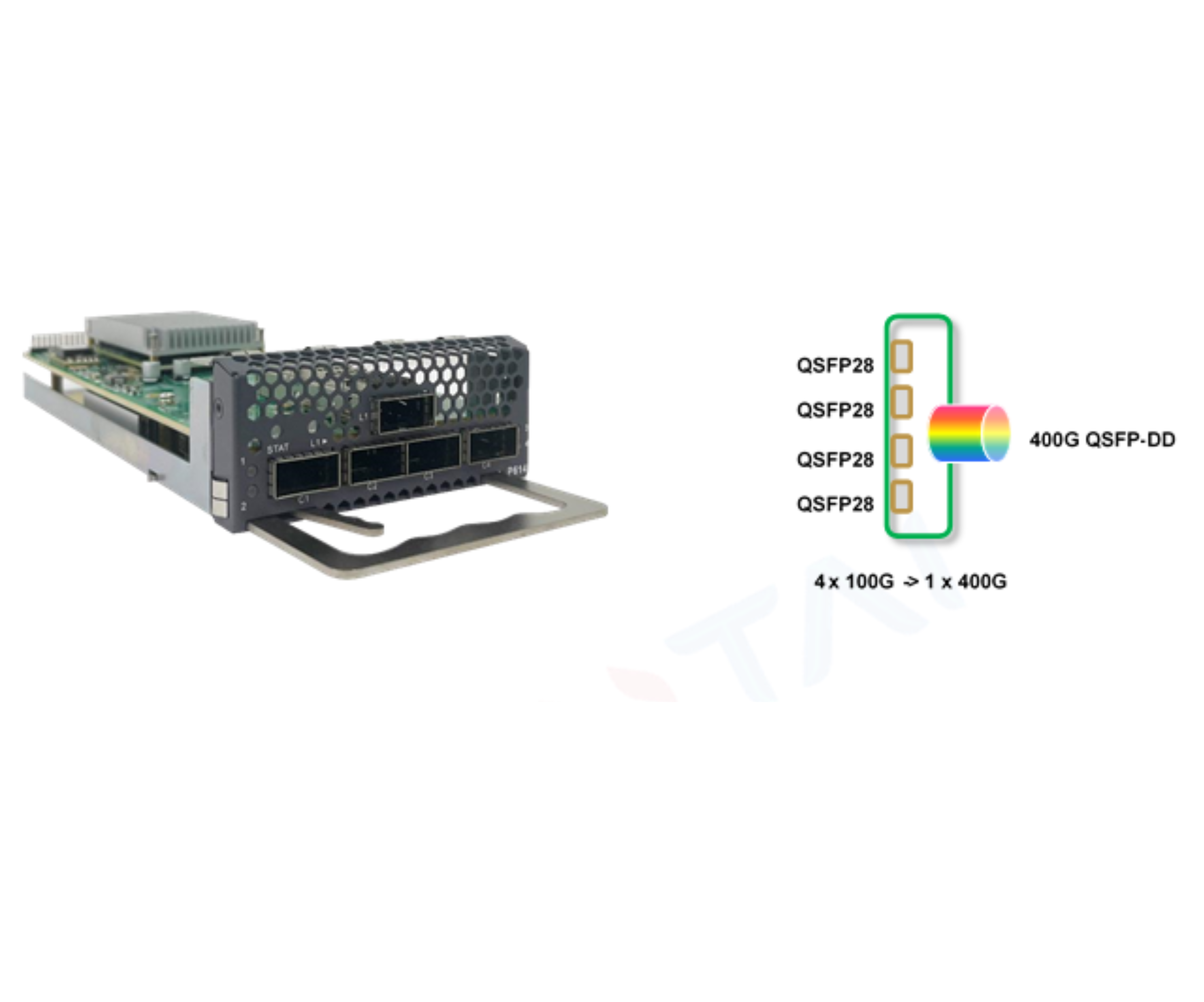

The 400G Muxponder Service Board (P614) from Guangzhou eman communications supports mapping 4x100G signals received on the customer side into one OTUC4 signal and interconverting the OTUC4 signal with ITU-T compliant WDM wavelength optical signals. The line side adopts pluggable QSFP-DD DCO to realize ultra-long distance transmission based on advanced technologies such as coherent detection.

Application scenario

  •  Suitable for metro and long-haul network transmission up to 450 kilometers
  •  Suitable for high-capacity DCI network transmission in enterprises, parks, cloud computing, etc.
  •  400G links for existing OTN/DWDM infrastructure

Product Technical specification:

400G Muxponder (P616)

Function

● Support 1x400G or 4x100G service signal mapping to 1 OTUC4 signal

Slot number

1 slot

Line side

  • Support 1 CFP2 port: adopts 400G CFP2-DCO module, hot-pluggable ● Support wavelength adjustable, the range covers 191.35~196.1 THz.
  • Support light-emitting power adjustable
  • Support 100G/200G/400G rate adjustable.
  • Support single fiber bidirectional transmission (optional)

Client side

Support 1 QSFP-DD/ QSFP28, 3 QSFP28 modules hot-pluggable

OTN function

  • Frame format and overhead handling using ITU-T G709 recommendations
  • ODUk (k=4, C4) layer support PM and other functions
  • OTUk (k=4, C4)layer support SM functions

Support services

100GE, 100GE FlexE(Unware), 400GE, OTU4

Time delay measurement

Online delay measurement based on ODU layer

Loopback

Support line side and client-side loopbacks

LLDP

Ethernet Support

Protection function

No client-side sensing during protection reversal if with optical protection board (optional)

Performance monitoring and alarm monitoring

  • Support OTN performance monitoring and alarm monitoring functions
  • Support optical module temperature, current, optical power monitoring, etc.
  • Support Ethernet RMON monitoring
