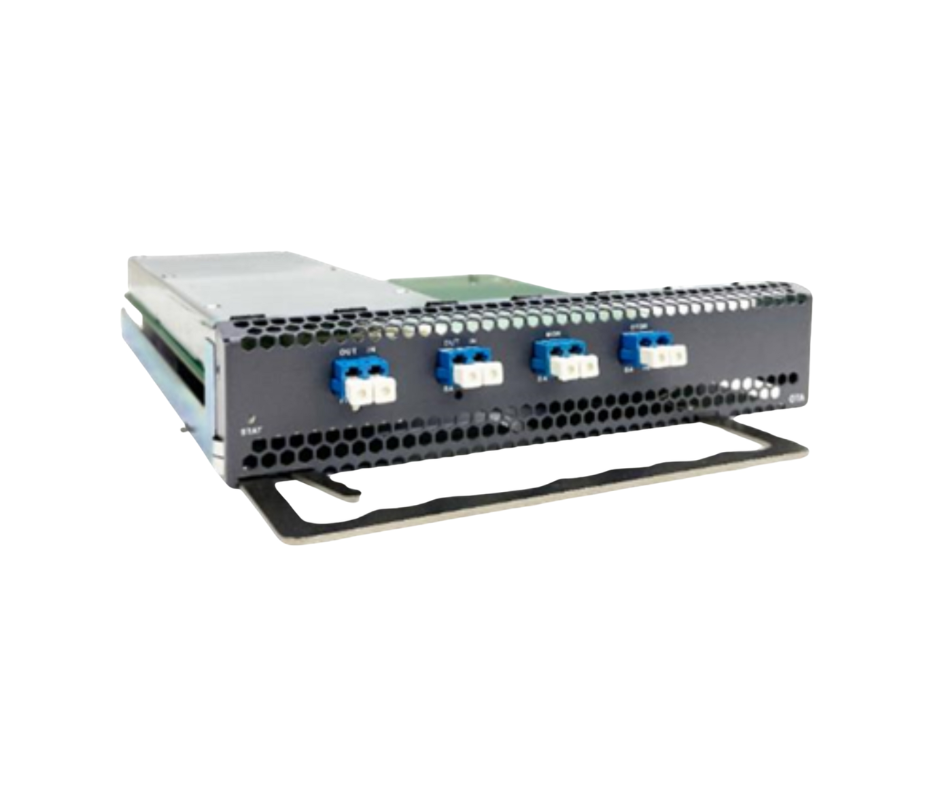

OLA (Optical Line Station Amplifier Board) 219

Discover our latest products and services

OLA (Optical Line Station Amplifier Board) 219

Rs 0.00

(3 Reviews)
Product Info
  • Unit: pc(1)
  • Product ID: 1449

Product Overview:

The main function of OLA (Optical Line Amplifier) launched by D Tech Trading is used at the intermediate optical amplifier station in the line, to periodically compensate for the loss of each section of the optical fiber, and to extend the transmission distance It can simultaneously amplify the optical signals of up to 48 channels in C-band (100GHz channel spacing) or 96 channels (50GHz channel spacing), with the features of flat gain, adjustable gain, small noise index, and so on. Meanwhile, the board has built-in OSC optical monitoring channel and supports DCN communication based on OSC, which is an indispensable part of DWDM system and future high-speed system and all-optical network for long-distance transmission.

Application case:

  •  Suitable for Optical Line Stations (OLA), to amplify bidirectional transmission signals and extend transmission distance

Product Specification:

Parameter

Description

Function

Supports bidirectional relay amplification of combined mux signals from optical relay stations, with built-in OSC channels in both east and west directions

Slot number

2 slots

Integration level

Built-in 2*LA, bidirectional OSC, VOA, passive filter, etc.

Safety

Supports Automatic Power Reduction (APR) technology

Monitoring Port

Reserved OCM and OTDR monitoring port for line side transmit and receive directions, can be connected to external OCM and OTDR board

Line side VOA location

LA front input

VOA Intrinsic insertion loss

<1dB

VOA Adjustment range

0 ~ 15dB

OSC operating wavelength

1510nm

OSC operating rate

1.25Gb/s

OTDR channel wavelength

1625nm

OTDR Channel Loss

<1dB



Optical Amplification Parameter:

Certainly! Here's the optical amplification parameter information presented in a tabular format:

Parameter

LA: 21G20V

LA: 21G30V

Wavelength range

1528 nm~1568nm

1528 nm~1568nm

Operating modes

AGC or APC configurable

AGC or APC configurable

Gain Range

15 ~ 25dB configurable

22 ~ 35dB configurable

Maximum total optical power output

≥21 dBm

≥21 dBm

Gain Flatness

<1.5dB

<1.5dB

Gain slope

-3 ~ 0dB

-3 ~ 0dB

Polarization-related losses

< 0.5dB

< 0.5dB

Input Optical Power Measurement Range

-28 ~ 6dB

-35 ~ 0dB

Output Optical Power Measurement Range

-2 ~ 22dB

-2 ~ 22dB

Reflection Coefficient

< -30dB

< -30dB

Gain Stability

±0.5dB

±0.5dB



Product Overview:

The main function of OLA (Optical Line Amplifier) launched by D Tech Trading is used at the intermediate optical amplifier station in the line, to periodically compensate for the loss of each section of the optical fiber, and to extend the transmission distance It can simultaneously amplify the optical signals of up to 48 channels in C-band (100GHz channel spacing) or 96 channels (50GHz channel spacing), with the features of flat gain, adjustable gain, small noise index, and so on. Meanwhile, the board has built-in OSC optical monitoring channel and supports DCN communication based on OSC, which is an indispensable part of DWDM system and future high-speed system and all-optical network for long-distance transmission.

Application case:

  •  Suitable for Optical Line Stations (OLA), to amplify bidirectional transmission signals and extend transmission distance

Product Specification:

Parameter

Description

Function

Supports bidirectional relay amplification of combined mux signals from optical relay stations, with built-in OSC channels in both east and west directions

Slot number

2 slots

Integration level

Built-in 2*LA, bidirectional OSC, VOA, passive filter, etc.

Safety

Supports Automatic Power Reduction (APR) technology

Monitoring Port

Reserved OCM and OTDR monitoring port for line side transmit and receive directions, can be connected to external OCM and OTDR board

Line side VOA location

LA front input

VOA Intrinsic insertion loss

<1dB

VOA Adjustment range

0 ~ 15dB

OSC operating wavelength

1510nm

OSC operating rate

1.25Gb/s

OTDR channel wavelength

1625nm

OTDR Channel Loss

<1dB



Optical Amplification Parameter:

Certainly! Here's the optical amplification parameter information presented in a tabular format:

Parameter

LA: 21G20V

LA: 21G30V

Wavelength range

1528 nm~1568nm

1528 nm~1568nm

Operating modes

AGC or APC configurable

AGC or APC configurable

Gain Range

15 ~ 25dB configurable

22 ~ 35dB configurable

Maximum total optical power output

≥21 dBm

≥21 dBm

Gain Flatness

<1.5dB

<1.5dB

Gain slope

-3 ~ 0dB

-3 ~ 0dB

Polarization-related losses

< 0.5dB

< 0.5dB

Input Optical Power Measurement Range

-28 ~ 6dB

-35 ~ 0dB

Output Optical Power Measurement Range

-2 ~ 22dB

-2 ~ 22dB

Reflection Coefficient

< -30dB

< -30dB

Gain Stability

±0.5dB

±0.5dB



Additional Specifications
Base Unit pc(1)
Category Networking Goods
SKU
Product Code 95
Trackable Yes
Taxable Yes
