Overview:

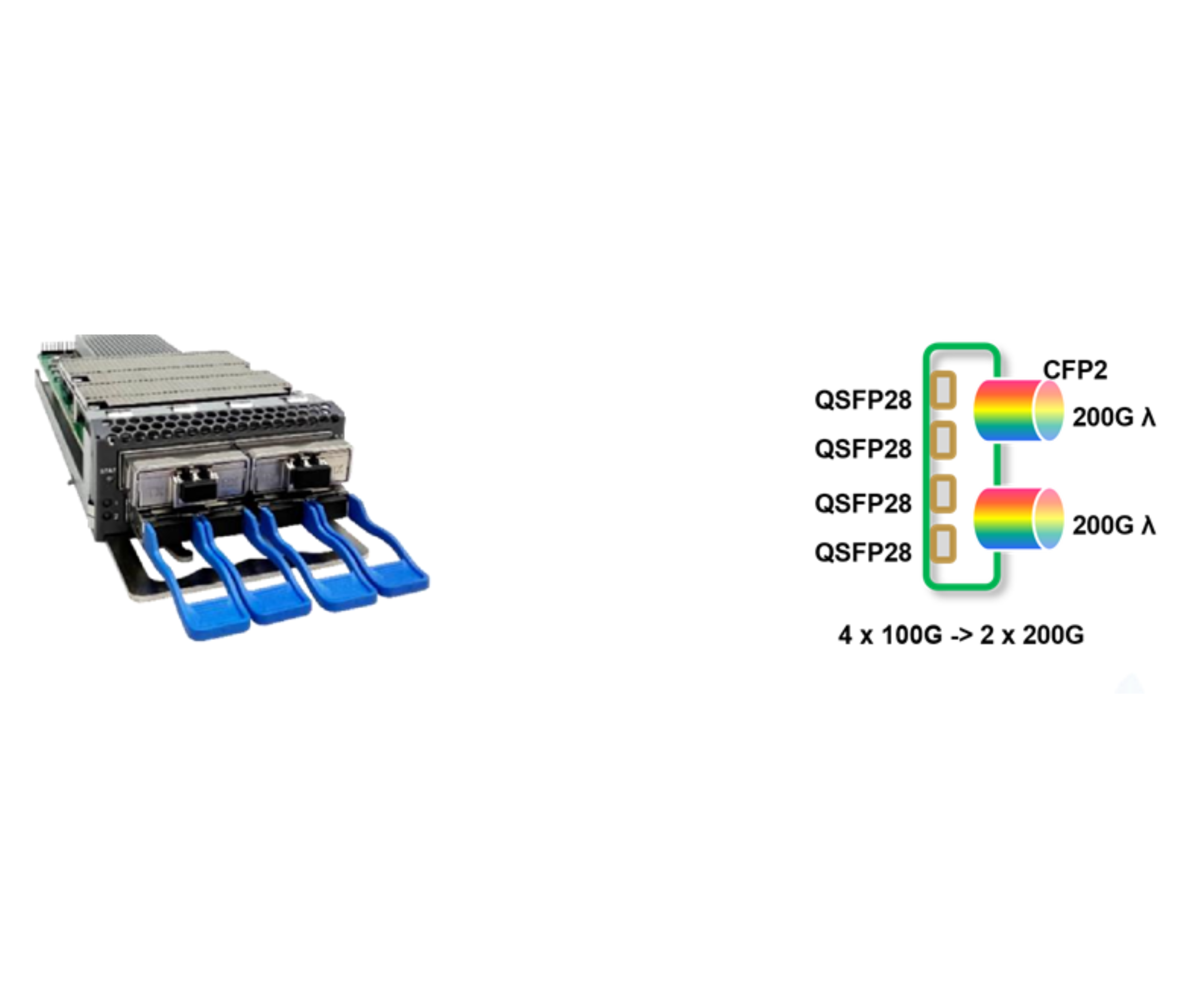

The 2*200G Muxponder service card (P524) launched by eman communications supports mapping 4x100G optical signals received on the client side into 2 OTUC2 signals and interconverting OTUC2 signals with optical signals of WDM wavelengths conforming to ITU-T standards. The line side adopts pluggable CFP2-DCO to achieve ultra-long distance transmission based on advanced technologies such as coherent detection.
Product Description:
Application case
- It is Suitable for transmission over metropolitan networks and long-distance networks up to 1000 km.
- It is Suitable for high-capacity DCI network transmission for enterprises, campuses, cloud computing, etc.
- It is Suitable for 200G links in existing OTN/DWDM infrastructures.
Technical Specification:
| Feature | Description |
|---|---|
| Function | Support 4x100G service signals mapping to 2 OTUC2 signals |
| Slot Number | - 2 CFP2 ports: using 200G & 400G CFP2-DCO modules, pluggable |
| - Support wavelength adjustable, covering 191.35~196.1 THz | |
| - Support light-emitting power adjustable | |
| - Support 100G/200G rate adjustable | |
| - Support single fiber bidirectional transmission (optional) | |
| - Support 4 QSFP28 modules hot-pluggable | |
| Frame Format & Overhead Handling | Using ITU-T G709 recommendations |
| OTN Function | - ODUk (k=4, C2) layer: support for PM and other functions |
| - OTUk (k=4, C2) layer: support for SM functions | |
| Support Services | 100GE, 100GE FlexE(Unware), OTU4 |
| Time Delay Measurement | Online delay measurement based on ODU layer |
| Loopback | Support line side and client-side loopbacks |
| LLDP | Ethernet Support |
| Protection Function | - No client-side sensing during protection reversal if with optical protection board (optional) |
| - Support OTN performance monitoring and alarm monitoring functions | |
| Performance Monitoring and Alarm Monitoring | - Support optical module temperature, current, optical power monitoring, etc. |
| - Support Ethernet RMON monitoring | |
| - Support Telemetry |
