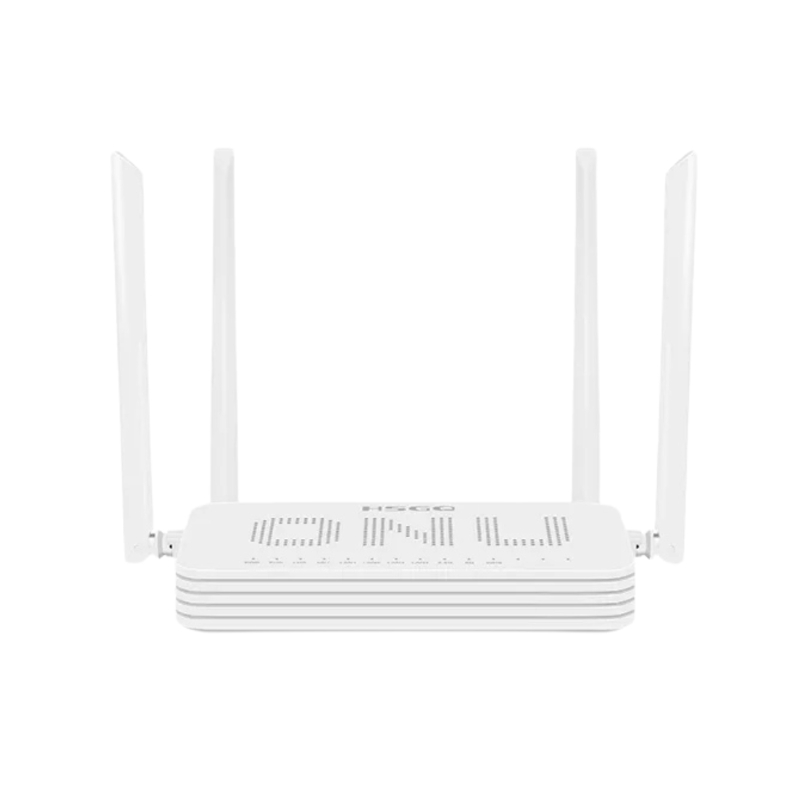

HSGQ-X200DW Dual Band GPON / EPON ONU

2GE • Dual Band Wi-Fi • EPON/GPON Adaptive • RJ11 Voice Port

The HSGQ-X200DW is a high-performance ONU device designed for FTTH, ISP, commercial, and industrial broadband networks. It supports EPON/GPON adaptive access, dual-band Wi-Fi, advanced security features, and stable high-speed connectivity.

PON Mode

EPON / GPON

Ethernet

2 × GE

Wi-Fi Speed

1166Mbps

Voice Port

RJ11

Key Features

✔ EPON / GPON Adaptive Port

✔ Dual Band 2.4GHz / 5GHz Wi-Fi

✔ Up to 1166Mbps PHY Rate

✔ 2 × Gigabit Ethernet RJ45 Ports

✔ 1 × RJ11 POTS Voice Port

✔ VLAN, DBA, QoS, ACL, NAT & Encryption

✔ WEB, TELNET, TR069, OMCI & OAM Management

✔ Remote Software Upgrade Support

Product Specifications

Category	Specification
Model	HSGQ-X200DW
Product Type	Dual Band GPON / EPON ONU
Fiber Port	APC / UPC
PON Standards	IEEE 802.3ah EPON / ITU-T G.984 GPON
Interfaces	2 × 10/100/1000M RJ45, 1 × EPON/GPON SC-UPC/APC, 1 × RJ11
Management	WEB, TELNET, TR069, OMCI, OAM

Wi-Fi Features

Wi-Fi Standard	802.11a/b/g/n/ac
Wireless Band	2.4GHz / 5GHz
PHY Rate	Up to 1166Mbps
SSID	Supports 4 × SSID
Security	WPA2 / WEP / 802.1x
Wireless Functions	Hide SSID, Auto Channel Selection

Technical Specifications

PON Speed	GPON: 2.5Gbps Down / 1.25Gbps Up; EPON: 1.25Gbps Symmetric
Sensitivity	-7dBm to -28dBm GPON, -7dBm to -27dBm EPON
Ethernet	Auto-MDI/MDI-X, 100m Range, Full/Half Duplex
Power	12V / 1.5A DC, < 9W Consumption
Environment	0°C to +60°C Operating, -40°C to +80°C Storage, 10% to 85% Humidity
Size	162mm × 112mm × 30mm

LED Indicator Details

No.	Indicator	Status
1	POWER	On: Powered • Off: No power
2	PON	On: Registered • Blinking: Registering • Off: Failed
3	LOS	On: Weak Signal • Off: Normal
4	LAN	On: Connected • Blinking: Data Transfer • Off: Disconnected
5	2.4G Wi-Fi	On: Enabled • Blinking: Data Transfer • Off: Disabled
6	5G Wi-Fi	On: Enabled • Blinking: Data Transfer • Off: Disabled
7	WPS	On: Paired • Blinking: Pairing • Off: Inactive
8	NET	On: Internet Access • Off: No Connection
