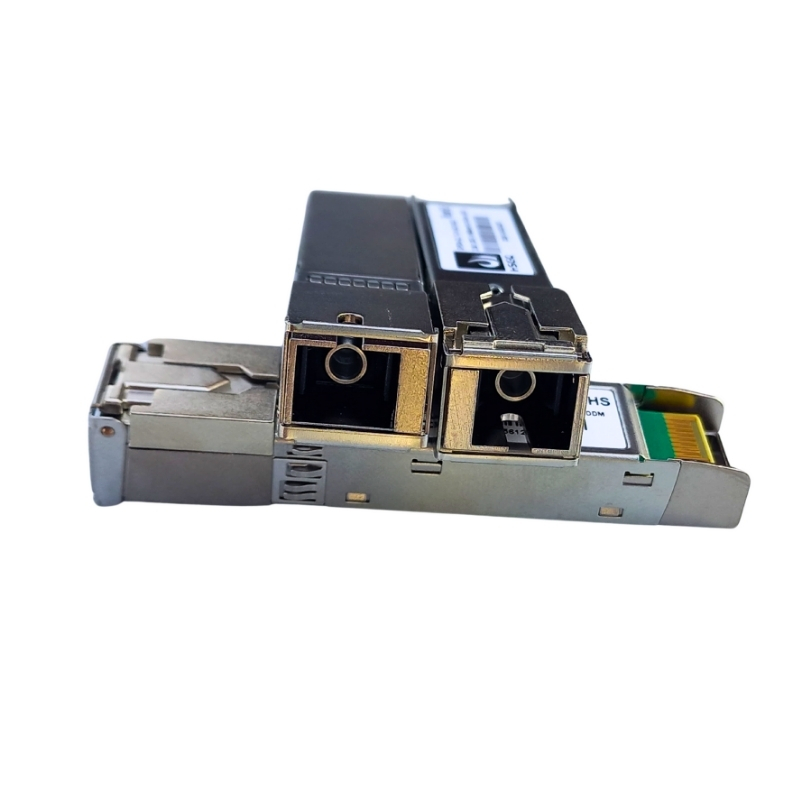

D-TECH SFP GPON

Description of SFP GPON 20KM C+ 5dbm:

The C+ SFP transceiver is the high performance module for single fiber by using 1490nm continuous-mode transmitter and 1310nm burst-mode receiver.

Quick Details of SFP GPON 20KM C+ 5dbm:

• Place of Origin: Guangdong, China
• Brand Name:FIBER-LINK
• Model Number:JHHL-GPONC+
• Item:GPON OLT Class C+ SFP 20KM SC
• Data-rate:2.5G/1.25G
• Wavelength:Tx1490nm/Rx1310nm
• connector Type:SC
• Transmission Distance:20km
• Power supply:+3.3V
• Operating case temperature: 0 to 70 degree
• Waranty:2 years
• Supply Ability:50,000pcs/month
• Certification: RoHS, ISO9001, FCC, CE

Features of SFP GPON 20KM C+ 5dbm:

• Single Single-fiber transmitter with single mode SC-receptacle
• 1490nm continuous-mode transmitter with DFB laser
• 1310 nm burst-mode receiver with APD-TIA
• Single 3.3V power supply
• Reset burst-mode receiver design
• Burst mode signal detection output, which is LVTTL compatible.
• Burst mode received signal strength indication (RSSI) output
• 20Km Reach 28dB link budget
• Complies with huawei,zte,fiberhome, and Bdcom OLTs
• Operating case temperature: Standard : 0 to +70 °C

Applications of SFP GPON 20KM C+ 5dbm:

Gigabit Passive Optical Networks (G-PON)—OLT side

Ordering information
