TFF (Dual Fiber Fixed MUX DEMUX Card) 224

Rs 0.00

(3 Reviews)
Product Info
  • Unit: pc(1)
  • Product ID: 1450

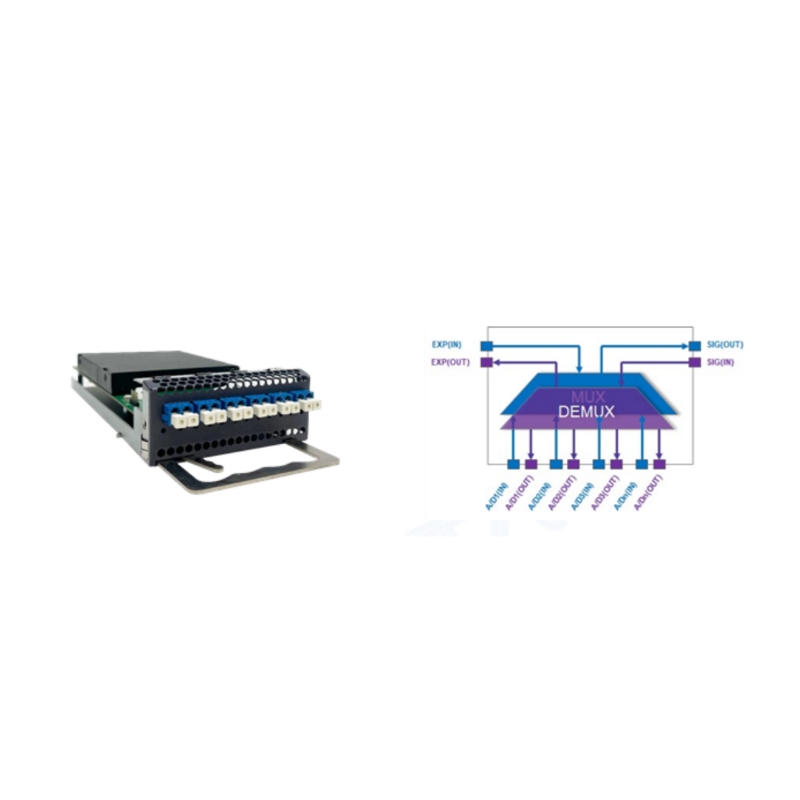

The dual fiber MUX / DEMUX board (TFF) launched by D Tech Trading is specially designed for DWDM network applications with multiple wavelengths. It can multiplex different wavelengths of optical onto one optical fiber or separate multiple optical channels multiplexed on the same optical fiber by wavelength. Based on thin film filter (TFF) technology, it works on ITU grid with 100GHz channel spacing. DWDM wavelength range is 1528nm to 1568nm, and ITU channel wavelength is optional. It has a series of advantages such as low insertion loss and high channel isolation.

Application case:

  •  It is applicable to 4-channel and 8-channel DWDM optical signal MUX and DEMUX in dual fiber transmission

Product Specification:

Specification

4 channel

8 channel

Function

Support Mux&Deux of 4 DWDM optical signals

Support Mux&Deux of 8 DWDM optical signals

Channel number

4λ@100 GHz (191.4THz~196.1THz, board model as table 1)

8λ@100 GHz (191.4THz~196.1THz, board model as table 2)

Insertion loss

≤2 dB

≤3 dB

3dB spectral width

>75GHz

>75GHz

Adjacent channels isolation

>25dB

>25dB

Non-adjacent channels isolation

>35dB

>35dB

Slot number

1 slot



Power monitoring

Support optical power monitoring of mux port (SIG)



Indicator light

Support optical power indicator light of mux port (SIG)



Extended function

Support extended cascading, and use EXP port for docking during cascading



Table 1: dual fiber 4-channel fixed mux demux board

Card model

Port Range

Center Frequency (THz)

TFF5659

A56/D56~A59/D59

195.60~195.90

TFF5255

A52/D52~A55/D55

195.20~195.50

TFF4750

A47/D47~A50/D50

194.70~195.00

TFF4346

A43/D43~A46/D46

194.30~194.60

TFF3841

A38/D38~A41/D41

193.80~194.10

TFF3437

A34/D34~A37/D37

193.40~193.70

TFF2932

A29/D29~A32/D32

192.90~193.20

TFF2528

A25/D25~A28/D28

192.50~192.80

TFF2023

A20/D20~A23/D23

192.00~192.30

TFF1619

A16/D16~A19/D19

191.60~191.90



Table 2: dual fiber 8-channel fixed mux demux board

Card model

Port Range

Center Frequency (THz)

TFF5360

A53/D53~A60/D60

195.30~196.00

TFF4552

A45/D45~A52/D52

194.50~195.20

TFF3744

A37/D37~A44/D44

193.70~194.40

TFF2936

A29/D29~A36/D36

192.90~193.60

TFF2128

A21/D21~A28/D28

192.10~192.80




The dual fiber MUX / DEMUX board (TFF) launched by D Tech Trading is specially designed for DWDM network applications with multiple wavelengths. It can multiplex different wavelengths of optical onto one optical fiber or separate multiple optical channels multiplexed on the same optical fiber by wavelength. Based on thin film filter (TFF) technology, it works on ITU grid with 100GHz channel spacing. DWDM wavelength range is 1528nm to 1568nm, and ITU channel wavelength is optional. It has a series of advantages such as low insertion loss and high channel isolation.

Application case:

  •  It is applicable to 4-channel and 8-channel DWDM optical signal MUX and DEMUX in dual fiber transmission

Product Specification:

Specification

4 channel

8 channel

Function

Support Mux&Deux of 4 DWDM optical signals

Support Mux&Deux of 8 DWDM optical signals

Channel number

4λ@100 GHz (191.4THz~196.1THz, board model as table 1)

8λ@100 GHz (191.4THz~196.1THz, board model as table 2)

Insertion loss

≤2 dB

≤3 dB

3dB spectral width

>75GHz

>75GHz

Adjacent channels isolation

>25dB

>25dB

Non-adjacent channels isolation

>35dB

>35dB

Slot number

1 slot



Power monitoring

Support optical power monitoring of mux port (SIG)



Indicator light

Support optical power indicator light of mux port (SIG)



Extended function

Support extended cascading, and use EXP port for docking during cascading



Table 1: dual fiber 4-channel fixed mux demux board

Card model

Port Range

Center Frequency (THz)

TFF5659

A56/D56~A59/D59

195.60~195.90

TFF5255

A52/D52~A55/D55

195.20~195.50

TFF4750

A47/D47~A50/D50

194.70~195.00

TFF4346

A43/D43~A46/D46

194.30~194.60

TFF3841

A38/D38~A41/D41

193.80~194.10

TFF3437

A34/D34~A37/D37

193.40~193.70

TFF2932

A29/D29~A32/D32

192.90~193.20

TFF2528

A25/D25~A28/D28

192.50~192.80

TFF2023

A20/D20~A23/D23

192.00~192.30

TFF1619

A16/D16~A19/D19

191.60~191.90



Table 2: dual fiber 8-channel fixed mux demux board

Card model

Port Range

Center Frequency (THz)

TFF5360

A53/D53~A60/D60

195.30~196.00

TFF4552

A45/D45~A52/D52

194.50~195.20

TFF3744

A37/D37~A44/D44

193.70~194.40

TFF2936

A29/D29~A36/D36

192.90~193.60

TFF2128

A21/D21~A28/D28

192.10~192.80




Additional Specifications
Base Unit pc(1)
Category Networking Goods
SKU
Product Code 192
Trackable Yes
Taxable Yes
