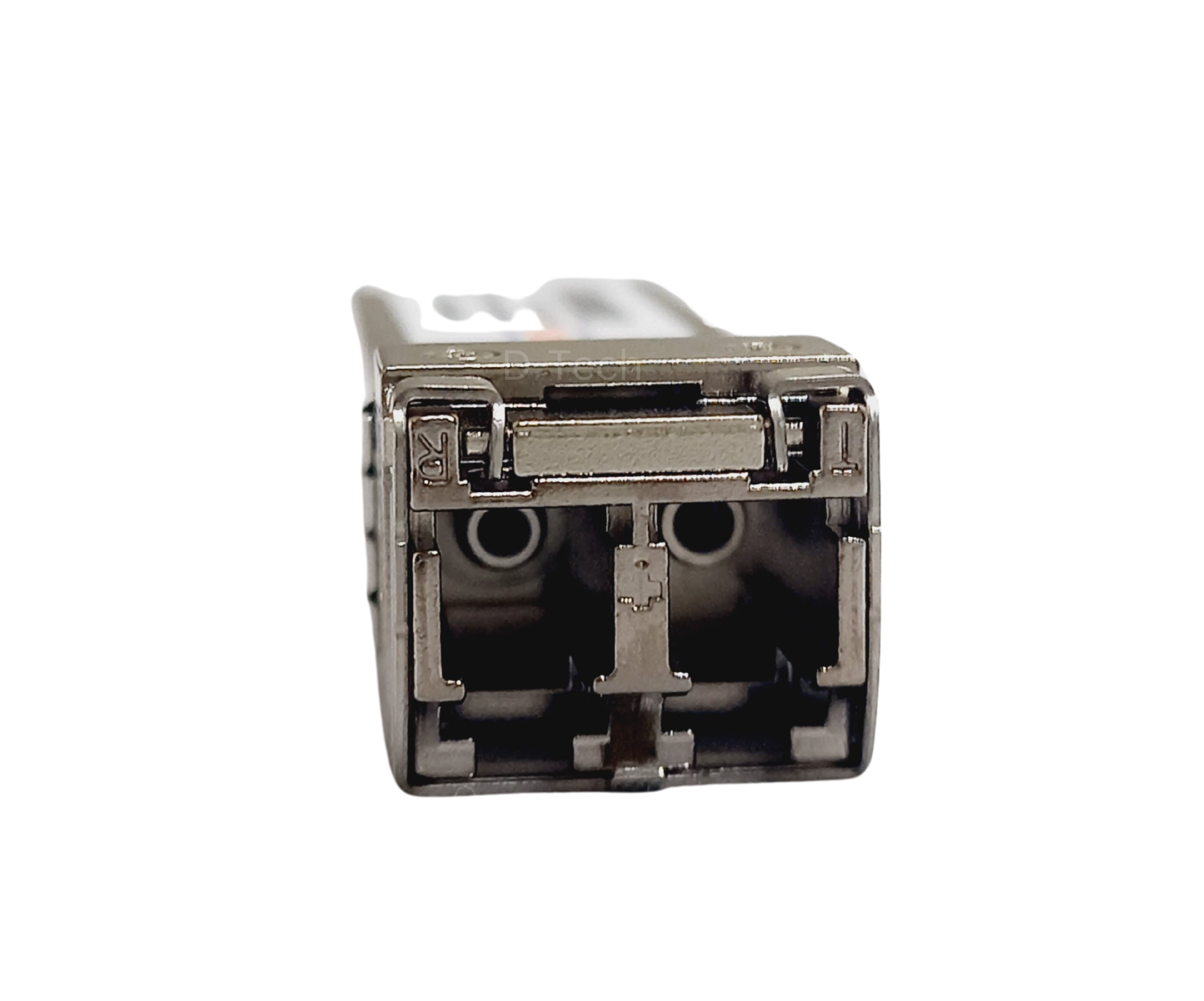

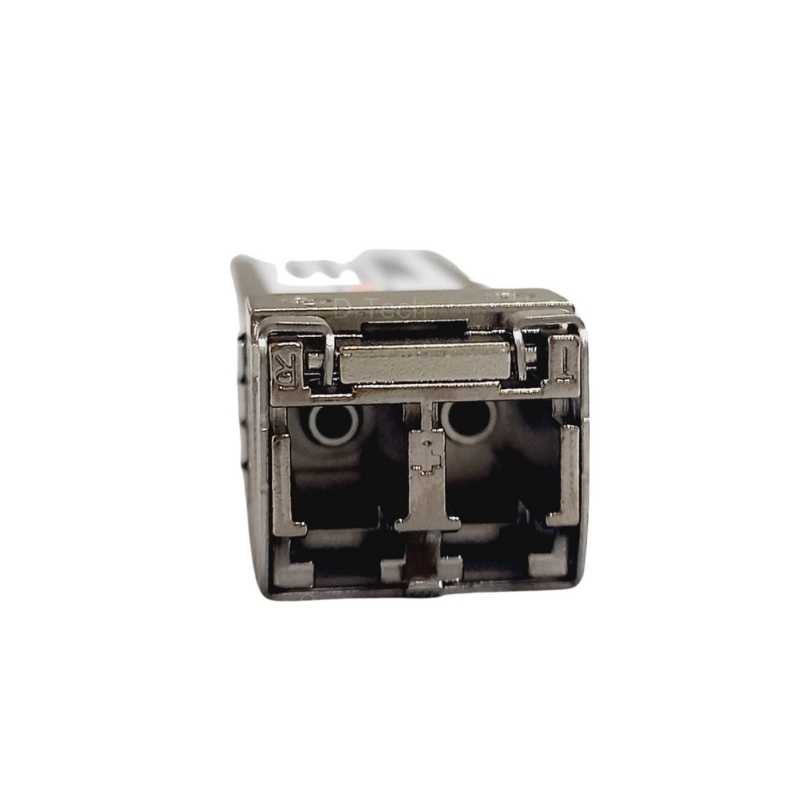

Optical Transceiver, SFP,10G,DWDM,80KM,LC

Overview:

HTF’HTSX-1Dxx96ZxSFP+transceiver isdesignedforusein10-GigabitEthernet linksupto 80kmover singlemode fiber. Themodule consists of DWDMEML Laser, APD and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are availableviaa2-wireserial interface,asspecifiedinSFF8472.Thismoduleisdesignedfor single mode fiber and operates at a nominal wavelength of 100GHz ITU Grid, C Band DWDMwavelength. HTSX-1Dxx96Zx transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range. The SFP+ MSA defines a 256-byte memory map in EEPROM that is accessible over a 2 wire serial interface at the 8 bit address 1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8 bit address 1010001X (A2h), so the originally defined serial ID memory map remains unchanged.

Product Description:

Features:

  •  Upto11.3Gb/s data links
  • DWDMEMLtransmitter and APD receiver
  •  100GHzITUchannel spacing with integrated wavelength locker
  • Upto80kmon9/125µmSMF
  •  Hot-pluggable SFP+ footprint
  •  DuplexLC/UPC type pluggable optical interface
  •  Metalenclosure, for lower EMI
  •  RoHScompliant and lead-free
  •  SupportDigital Diagnostic Monitoring interface
  •  Single +3.3V power supply
  • Maximumpower consumption 1.5W
  •  Compliant with SFF+MSA and SFF8472
  •  Caseoperating temperature Commercial: 0 ~ +70oC Extended:-10 ~ +80oC

Applicatons:

  •  10GBASE-ZR/ZW&10GEthernet
  •  SDHSTM64
  •  OtherOptical Links

Absolute Maximum Ratings

It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.

Parameter Symbol Min Max Unit Notes
Storage Temperature TS -40 85 °C
Power Supply Voltage VCC -0.5 3.6 V
Relative Humidity (non-condensation) RH 5 95 %
Damage Threshold THd 0   dBm



Recommended OperatingConditions and PowerSupply Requirements:

Parameter Symbol Min Typical Max Unit Notes
Operating Case Temperature TOP 0   70 °C Commercial: -40 to 85°C, Industrial
Power Supply Voltage VCC 3.135 3.3 3.465 V
Data Rate     10.3125   Gb/s
Control Input Voltage High   2   Vcc V
Control Input Voltage Low   0   0.8 V
Link Distance (SMF) D 80     km 9/125um
