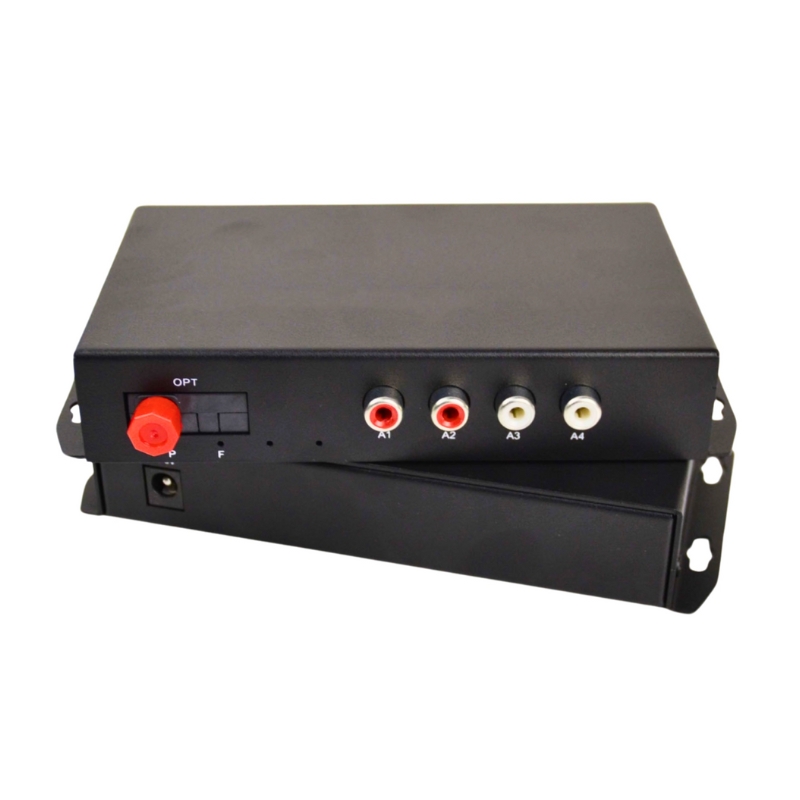

Audio to fiber converter Terminal port

Discover our latest products and services

Audio to fiber converter Terminal port

Rs 3350.00

(3 Reviews)
Available Variants
1CH Un-bidirectional (Slug missing) 1CH bidirectional (Slug missing) 2CH Un-bidirectional (Slug missing) 2CH bidirectional (Slug missing) 4CH Un-bidirectional (Slug missing) 4CH bidirectional (Slug missing)
Product Info
  • Unit: Pair(2pcs)
  • Product ID: 1803

-3.01% Rs3249.00 Rs3350.00

Per Pair(2pcs)



Audio to fiber converter

The audio converter adopts the most advanced digital fiber transmission technology in the world to realize synchronous, distortion-free and high-quality transmission on single fiber.it adopts all-digital video uncompressed transmission technology, which can meet the needs of users. It is easy to install and does not need to be adjusted on site. Its optical modules and core circuits are imported components, with stable performance and suitable for different working environments. .

▶Features

● Independent structure, suitable for 2U rack

● Uncompressed, real-time signal transmission

● Gigabit optical fiber transmission, goodcapacity, easy to upgrade

● Advanced circuit design, full hardware solution to ensure the reliability, consistency and stability of the equipment

● Power and other parameter status indicators to monitor system

● Support single-mode or multi-mode optical fiber transmission (users need to confirm the type of transmission optical cable)

● Provide commonly used FC/SC/ST optical fiber interface

● The maximum transmission distance of single mode without repeater can reach 120KM



▶Parameters



Items

Description

Fuction

Signal type

dataethernetaudiotelephone

channel

1ch

Fiber

Wavelength

850nm,1310nm,1550nm

Output power

-9.5~-3dBm@850nm

Sensitivity

-15dBm@850nm

Fiber port

Single fiberFC/SC/ST

Transmit distance

1mrt2000mrts dual mode

1mrt10km single mode

Power

Power supply mode

Power supply

Voltage

5VDC

Power Consumption

<10W

Ethernet

Ethernet port

RJ-45 10/100M

Standard

IEEE802.3 10Base-T EthernetIEEE802.3u 100Base-TX Fast Ethernet

IEEE802.3ab 1000Base-TX Giga EthernetIEEE802.3z 1000Base-LX/SX Giga Ethernet

Data

specification

Data interface: industrial-grade terminal block (Phoenix terminal)

Interface signalRS-232/422/485

Rate≤0384Kbps

Audio

specification

Audio interface signal: unbalanced audio

Audio input/output impedance: 600Ω (unbalanced)

Maximum input/output voltage 2VP-P

Frequency response10~20kHz

Total Harmonic Distortion<0.05%

SNR>95dB

Connector:terminal block

Telephone

specification

Interface signal:point-to-point hotline, program-controlled switchboard/extension mode

Voice bandwidth8KHz

Distortion<1%

SNR>95dB

PortRJ-11 or terminal block

Clousure

specification

Clousure interface signal: any passive alarm, switch

Signal input/output: support TTL, passive switch, button signal output

Connector:Industrial-grade terminal block (Phoenix terminal)

Working enviroment

Operation Temperature

055℃

StorageTemperature

-2070℃

Operation Humidity

095%

Working time

MTBF

>30000hours





Additional Specifications
Base Unit Pair(2pcs)
SKU
Product Code PR-001803 250
Trackable Yes
Taxable Yes
