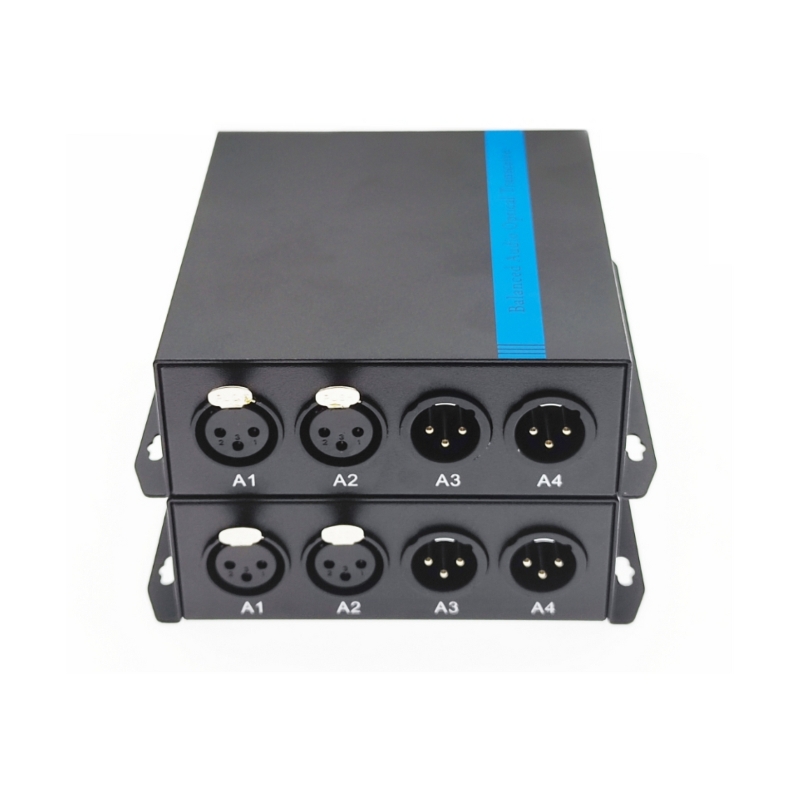

Audio to fiber converter XLR port

Discover our latest products and services

Audio to fiber converter XLR port

Rs 10000.00

(3 Reviews)
Available Variants
1CH Forward (Slug missing) 2CH Forward (Slug missing) 4CH Forward (Slug missing) 8CH Forward (Slug missing) 1CH Bidirectional (Slug missing) 2CH Bidirectional (Slug missing) 4CH Bidirectional (Slug missing)
Product Info
  • Unit: Pair(2pcs)
  • Product ID: 1802

-5.00% Rs9500.00 Rs10000.00

Per Pair(2pcs)
Product Specifications
  • Warranty: 160-TRIAL-1 Year 215

▶Introduction

The balanced audio optical transceiver adopts the internationally advanced digital Gigabit optical fiber transmission technology. Real-time synchronization without distortion on a single optical fiber, and high-quality balanced audio signals are transmitted over a minimum distance of 20KM. The optical transceiver adopts all-digital uncompressed transmission technology.

This optical transceiver has high stability, all optical and electrical interfaces comply with international standards, and is suitable for different working environments. The optical transceiver has a link status indicator. Through the indicator lights on the panel, you can know whether the transceiver and transmission link are operating normally. It can be flexibly customized according to the different needs of users. The plug-and-play design is easy to install and requires no on-site debugging. The above-mentioned optical transceiver can be installed in a stand-alone or rack-mounted manner.







Features

● All surface technology patches

●Aluminum alloy fine casing

● With APC circuit, constant output optical power and large dynamic range

● Gigabit optical fiber transmission, large capacity, easy to upgrade

● LEDs for power and other parameter status indication monitor system health

●Advanced adaptive technology, no on-site electrical or optical adjustments are required during use

Application

● Intelligent Traffic Monitoring System (ITS)

● Security system

● TV medical

● Remote multimedia teaching/campus monitoring

● Video and telephone conference

● Long-distance radio and television transmission system

● Building control system



▶Parameters

  Audio

Audio input/output impedance

600 Ohmbalanced

Audio maximum input/output voltage

3.0Vp-p

Frequency response

103kHz

Total harmonic distortion

 <0.05%

signal-to-noise ratio

> 95dB

Channel physical interface

XLR

  Fiber20KM

Wavelength

 1310nm/1550nm

Fiber type

  9/125u single mode

Output power

83dBm

Senstivity

14~17 dBm

Fiber port

 FC/SC/ST optional

■ General parameters

Power

 220V

Working temperature

35℃70℃

Working humidity

 095%(No condensation)

▶Connection


Additional Specifications
Base Unit Pair(2pcs)
SKU
Product Code PR-001802 270
Trackable Yes
Taxable Yes
