Failover Media converter

Unit: pc(1)
Product ID: 1759

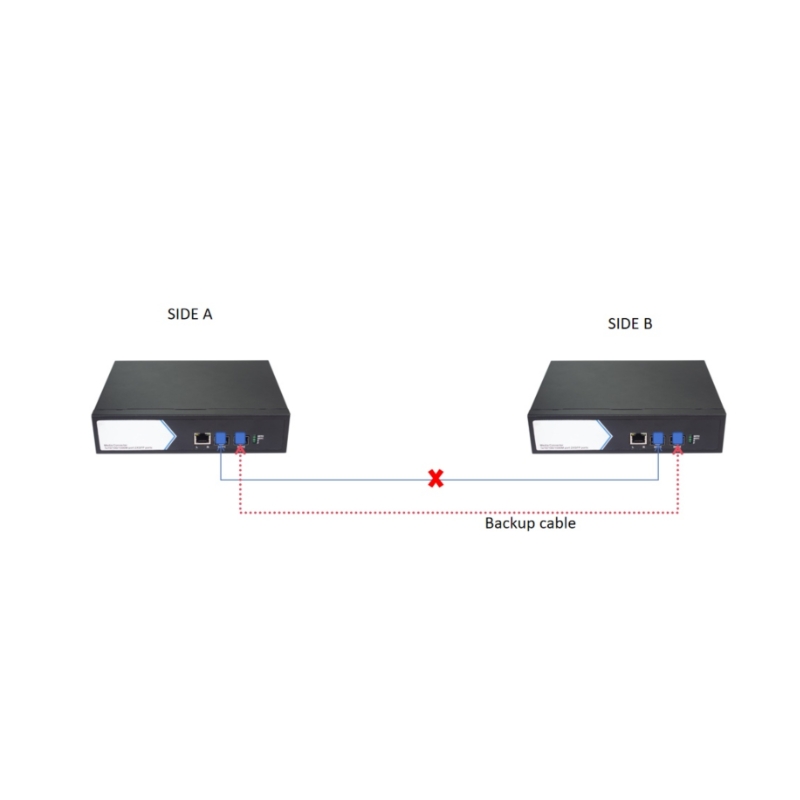

A Failover Media Converter is a device used to ensure continuous network connectivity by automatically switching to a backup network path in case of a failure. It converts media types (e.g., from fiber to copper or vice versa) and supports redundant connections for enhanced reliability. In the event of a primary link failure, the failover functionality instantly activates the secondary link, minimizing downtime and maintaining uninterrupted network performance. This Media converter is with 1x10/100/1000Mbps adaptive RJ45 ports, 2x1000M SFP uplink ports. The RJ45 port supports MDI/MDIX and wire speed forwarding functions. Store and forward to provide stable and reliable data transmission. Device provide 2 Ethernet optic port to realize 1+1 optic backup.

Fix Ports
Fixed port	1x10/100/1000 Base-T + 2x1000MBase-X SFP
Power interface	AC100-240V triangle interface
LED Indicators	P, 9, 10, Link/active, Speed
Optical fiber interface	SFP

Cable Type & Transmission Distance
Twisted-pair	0-100m/ 250m
Single mode optical fiber	20/40/60/80/100KM
Multi mode optical fiber	550M

Electrical Specifications
Input voltage	AC 100-240V 50/60Hz
Total Power consumption	<10W

L2
capacity	20G
Packet forwarding rate	14.88Mpps
MAC address table	4K
Buffer	8M
Forwarding delay	<5us
MDX/MIDX	Support
Jumbo Frame	16Kbytes

Environment
Operating temperature	-10℃~+50℃
Storage temperature	-40℃~+70℃
Relative humidity	10%~90% (non-condensing)
Thermal methods	Fan-less design, natural heat dissipation
MTBF	50,000 hours

EMC & Ingress Protection
Surge protection for Ethernet port	IEC 61000-4-5 Level 4（4/2KV）（10/700us）
DIP	IEC 61000-4-11 Level3 （10V）
ESD	IEC 61000-4-2 Level 4 （8K/15K）
Free fall	0.5m

Mechanical Dimensions
Product size	22016237mm（LxWxH）
Installation Method	Desktop; Wall mounted
Weight	0.82KG
