SBM (Single Fiber Fixed MUX DEMUX Card) 256

Discover our latest products and services

SBM (Single Fiber Fixed MUX DEMUX Card) 256

Rs 0.00

(3 Reviews)
Product Info
  • Unit: pc(1)
  • Product ID: 1451

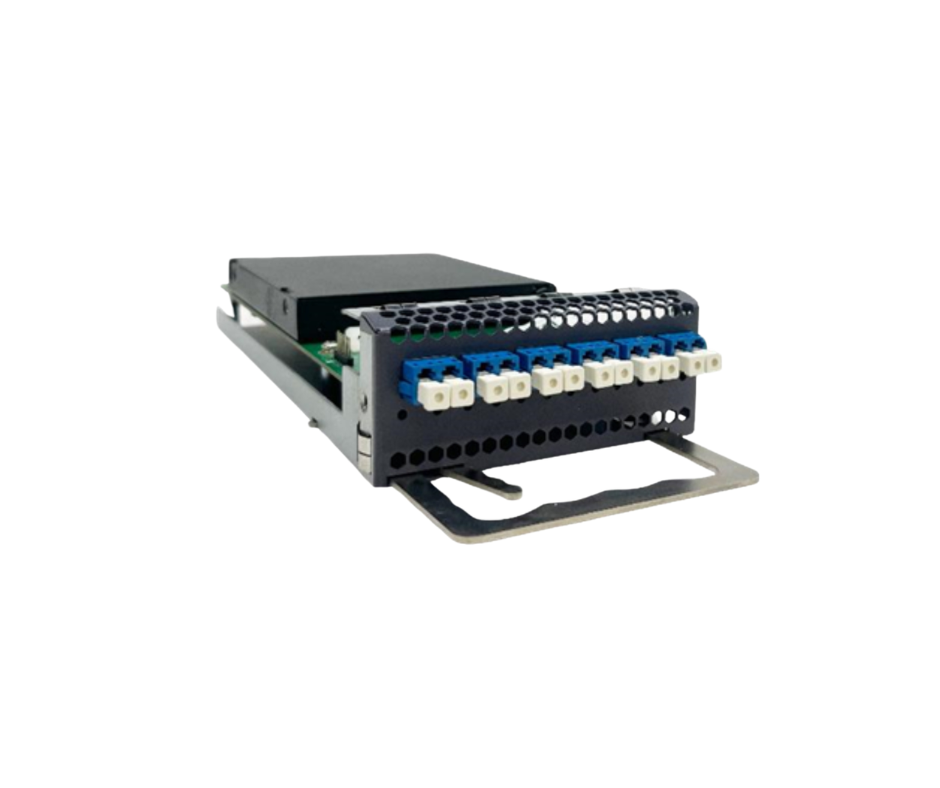

The single fiber MUX / DEMUX board (SBM) launched by D Tech Trading is specially designed for DWDM network applications with multiple wavelengths. It can multiplex different wavelengths of optical onto one optical fiber or separate multiple optical channels multiplexed on the same optical fiber by wavelength. Based on thin film filter (TFF) technology, it works on ITU grid with 100GHz channel spacing. The wavelength of the ITU channel is optional. It supports serial connection of EDFA for single fiber bidirectional long-distance transmission with built in OSC monitoring channel.

Application case:

  •  It is applicable to 4-channel and 8-channel DWDM optical signal MUX and DEMUX in single fiber transmission

Product specification:

Specification

4 channel

8 channel

Function

Support Mux&Deux of 4 DWDM optical signals

Support Mux&Deux of 8 DWDM optical signals

Channel number

4λ@100 GHz (board model as table 3)

8λ@100 GHz (board model as table 4)

Insertion loss

≤2 dB (λ-IN to SIG-OUT/SIG-IN to λ-OUT)

≤3 dB (λ-IN to SIG-OUT/SIG-IN to λ-OUT)

3dB spectral width

>75GHz

>75GHz

Adjacent channels isolation

>25dB

>25dB

Non-adjacent channels isolation

>35dB

>35dB

OSC channel

1491nm/1511nm



Single fiber bidirectional coupling insertion loss

≤1.5 dB (RC to LINE/LINE to TC)

≤1.5 dB (OSC-A to LINE/LINE to OSC-D)

Slot number

1 slot



Power monitoring

Support optical power monitoring of mux port (SIG)



Indicator light

Support optical power indicator light of mux port (SIG)



Extended function

Support extended cascading, and use EXP port

Not support for docking during cascading



Table 3: single fiber 4-channel fixed mux demux board

Card Model

Port Range

Add Center Frequency Range (THz)

Drop Center Frequency Range (THz)

SBM2242

A22/D39, A23/D40, A24/D41, A25/D42

192.20~192.50

193.90~194.20

SBM4222

A39/D22, A40/D23, A41/D24, A42/D25

193.90~194.20

192.20~192.50

SBM2646

A26/D43, A27/D44, A28/D45, A29/D46

192.60~192.90

194.30~194.60

SBM4626

A43/D26, A44/D27, A45/D28, A46/D29

194.30~194.60

192.60~192.90



Card Model

Port Range

Add Center Frequency Range (THz)

Drop Center Frequency Range (THz)

SBM2246

A22/D39, A23/D40, A24/D41, A25/D42

192.20~192.90

193.90~194.60



A26/D43, A27/D44, A28/D45, A29/D46





SBM4622

A39/D22, A40/D23, A41/D24, A42/D25

193.90~194.60

192.20~192.90



A43/D26, A44/D27, A45/D28, A46/D29




The single fiber MUX / DEMUX board (SBM) launched by D Tech Trading is specially designed for DWDM network applications with multiple wavelengths. It can multiplex different wavelengths of optical onto one optical fiber or separate multiple optical channels multiplexed on the same optical fiber by wavelength. Based on thin film filter (TFF) technology, it works on ITU grid with 100GHz channel spacing. The wavelength of the ITU channel is optional. It supports serial connection of EDFA for single fiber bidirectional long-distance transmission with built in OSC monitoring channel.

Application case:

  •  It is applicable to 4-channel and 8-channel DWDM optical signal MUX and DEMUX in single fiber transmission

Product specification:

Specification

4 channel

8 channel

Function

Support Mux&Deux of 4 DWDM optical signals

Support Mux&Deux of 8 DWDM optical signals

Channel number

4λ@100 GHz (board model as table 3)

8λ@100 GHz (board model as table 4)

Insertion loss

≤2 dB (λ-IN to SIG-OUT/SIG-IN to λ-OUT)

≤3 dB (λ-IN to SIG-OUT/SIG-IN to λ-OUT)

3dB spectral width

>75GHz

>75GHz

Adjacent channels isolation

>25dB

>25dB

Non-adjacent channels isolation

>35dB

>35dB

OSC channel

1491nm/1511nm



Single fiber bidirectional coupling insertion loss

≤1.5 dB (RC to LINE/LINE to TC)

≤1.5 dB (OSC-A to LINE/LINE to OSC-D)

Slot number

1 slot



Power monitoring

Support optical power monitoring of mux port (SIG)



Indicator light

Support optical power indicator light of mux port (SIG)



Extended function

Support extended cascading, and use EXP port

Not support for docking during cascading



Table 3: single fiber 4-channel fixed mux demux board

Card Model

Port Range

Add Center Frequency Range (THz)

Drop Center Frequency Range (THz)

SBM2242

A22/D39, A23/D40, A24/D41, A25/D42

192.20~192.50

193.90~194.20

SBM4222

A39/D22, A40/D23, A41/D24, A42/D25

193.90~194.20

192.20~192.50

SBM2646

A26/D43, A27/D44, A28/D45, A29/D46

192.60~192.90

194.30~194.60

SBM4626

A43/D26, A44/D27, A45/D28, A46/D29

194.30~194.60

192.60~192.90



Card Model

Port Range

Add Center Frequency Range (THz)

Drop Center Frequency Range (THz)

SBM2246

A22/D39, A23/D40, A24/D41, A25/D42

192.20~192.90

193.90~194.60



A26/D43, A27/D44, A28/D45, A29/D46





SBM4622

A39/D22, A40/D23, A41/D24, A42/D25

193.90~194.60

192.20~192.90



A43/D26, A44/D27, A45/D28, A46/D29




Additional Specifications
Base Unit pc(1)
Category Networking Goods
SKU
Product Code 234
Trackable Yes
Taxable Yes
