Overview:

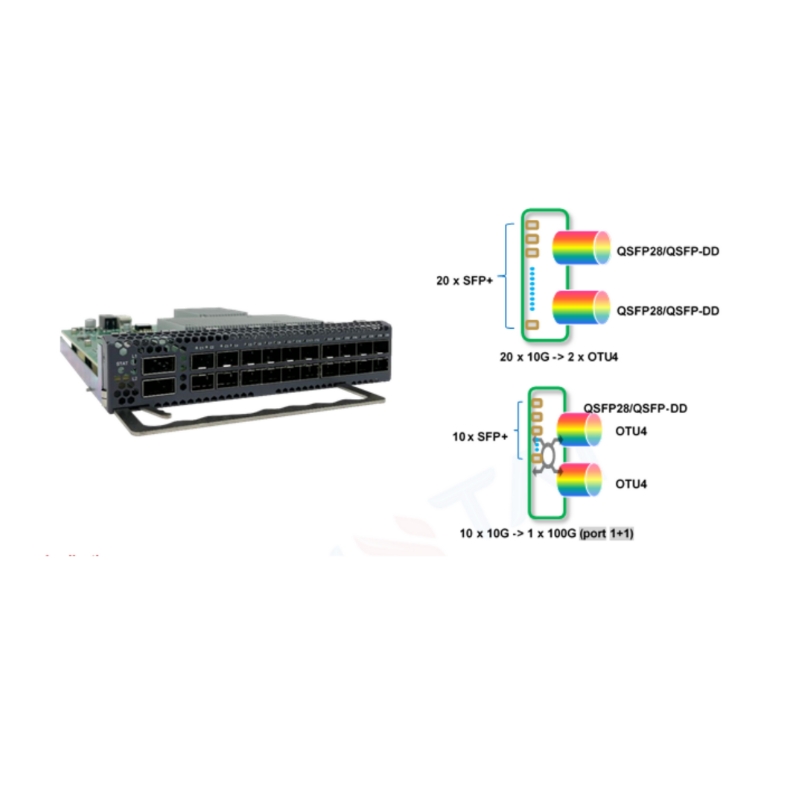

The 100G Muxponder service board (P422) launched by D Tech Trading supports mapping the 20x10G optical signal received by the client side into 2 independent OTU4 signals or 10x10G optical signals into 1x OTU4 signal with port 1+1 protection. The line side supports QSFP28 gray optical module or QSFP28/QSFP-DD DCO coherent module to achieve transmission requirements for different distances and diverse networks.



Applications:

  • For metro and long-haul network transmission up to 1500 km. QSFP28/QSFP-DD
  •  For high-capacity DCI network transmission for enterprises, campuses, cloud computing, etc.
  • 100G links for existing OTN/DWDM infrastructure

Product Specification:

Feature Details
Muxponder Type 100G Muxponder (P422)
Slots 2 slots
Line Side 2 QSFP28 / QSFP-DD ports: using 100G QSFP28 / QSFP-DD DCO module, pluggable
  Support wavelength adjustable, range covers 191.35~196.1 THz
Client Side Support 20 SFP+ modules hot-swappable
Function - Support 20x10G service signals mapping to 2 xOTU4 signals
  - Support 10x10G service signals mapping to 1 xOTU4 signal (with port 1+1 protection)
Frame Format & Overhead Handling Using ITU-T G709 recommendations
OTN Function - ODUk (k=2, 2e, 4) layer: support PM and other functions
  - OTUk (k=2, 4) layer: support SM functions
Supported Service Types 10GE, FC 8G/16G, STM-64, OTU2
Loop Back Support line side and client side loopback
Protection Function Support port 1+1 protection (10x10G on client side, 2x100G on line side)
OTN Performance Monitoring Supports OTN performance monitoring and alarm monitoring
Performance Monitoring & Alarm Monitoring - Support optical module temperature, current, optical power monitoring, etc.
  - Support Ethernet RMON monitoring
  - Support Telemetry

Overview:

The 100G Muxponder service board (P422) launched by D Tech Trading supports mapping the 20x10G optical signal received by the client side into 2 independent OTU4 signals or 10x10G optical signals into 1x OTU4 signal with port 1+1 protection. The line side supports QSFP28 gray optical module or QSFP28/QSFP-DD DCO coherent module to achieve transmission requirements for different distances and diverse networks.



Applications:

  • For metro and long-haul network transmission up to 1500 km. QSFP28/QSFP-DD
  •  For high-capacity DCI network transmission for enterprises, campuses, cloud computing, etc.
  • 100G links for existing OTN/DWDM infrastructure

Product Specification:

Feature Details
Muxponder Type 100G Muxponder (P422)
Slots 2 slots
Line Side 2 QSFP28 / QSFP-DD ports: using 100G QSFP28 / QSFP-DD DCO module, pluggable
  Support wavelength adjustable, range covers 191.35~196.1 THz
Client Side Support 20 SFP+ modules hot-swappable
Function - Support 20x10G service signals mapping to 2 xOTU4 signals
  - Support 10x10G service signals mapping to 1 xOTU4 signal (with port 1+1 protection)
Frame Format & Overhead Handling Using ITU-T G709 recommendations
OTN Function - ODUk (k=2, 2e, 4) layer: support PM and other functions
  - OTUk (k=2, 4) layer: support SM functions
Supported Service Types 10GE, FC 8G/16G, STM-64, OTU2
Loop Back Support line side and client side loopback
Protection Function Support port 1+1 protection (10x10G on client side, 2x100G on line side)
OTN Performance Monitoring Supports OTN performance monitoring and alarm monitoring
Performance Monitoring & Alarm Monitoring - Support optical module temperature, current, optical power monitoring, etc.
  - Support Ethernet RMON monitoring
  - Support Telemetry
Additional Specifications
Base Unit pc(1)
Category OFC Active Devices
SKU
Product Code 243
Trackable Yes
Taxable Yes

Fusce dapibus, tellus ac cursus commodo, tortor mauris condimentum nibh, ut fermentum massa justo sit amet risus. Integer posuere erat a ante venenatis dapibus posuere velit aliquet. Cras mattis consectetur purus sit amet fermentum. Maecenas sed diam eget risus varius blandit sit amet non magna. Sed posuere consectetur est at lobortis. Curabitur blandit tempus porttitor. Aenean lacinia bibendum nulla sed consectetur. Nulla vitae elit libero, a pharetra augue. Morbi leo risus, porta ac consectetur ac, vestibulum at eros. Praesent commodo cursus magna, vel scelerisque nisl consectetur et.

No videos available for this product.

You Might Also Like

Telephone Converter Converter 16CH 295

Telephone Converter Converter 16CH 295

Rs 1.00

WIFI-6 XPON ONU 4GE+AX3000+1FXS (IPG606) 52

WIFI-6 XPON ONU 4GE+AX3000+1FXS (IPG606) 52

Rs 0.00

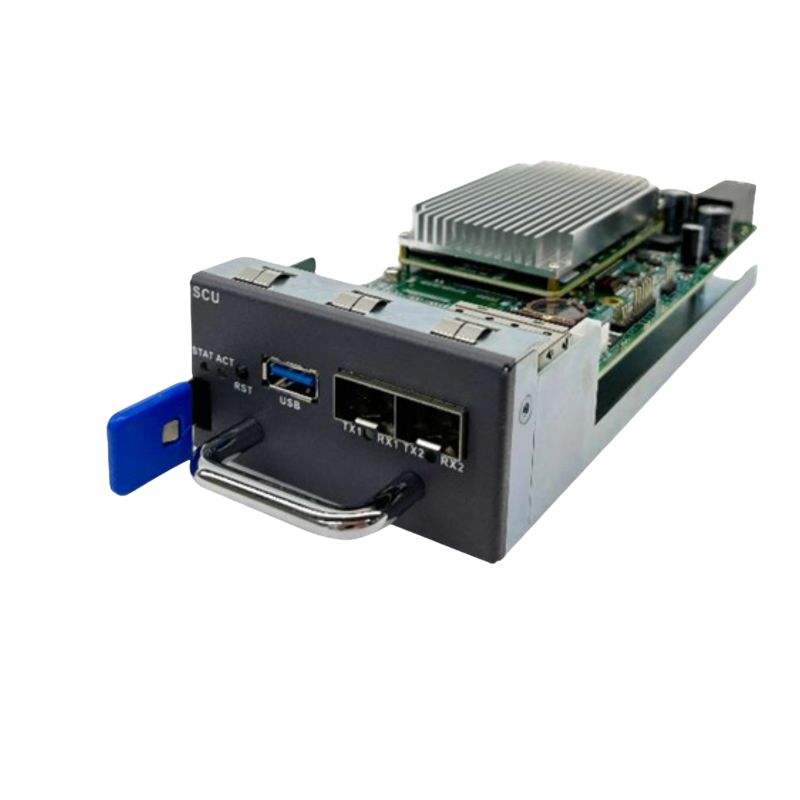

SCU (System Control Unit) 10
