P616 (400G Muxponder)

P616 (400G Muxponder)

Product Description:

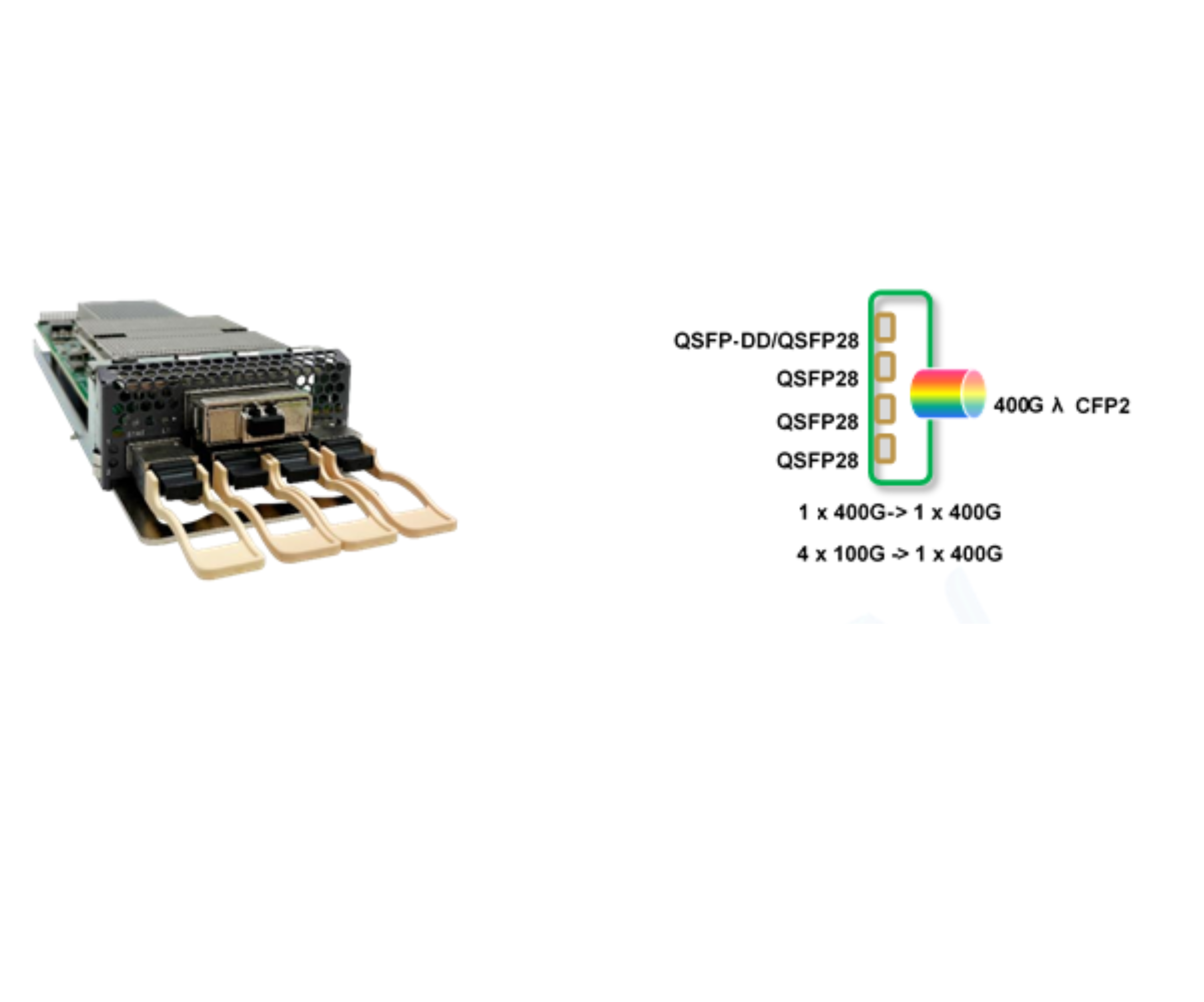

The 400G Muxponder service card (P616) launched by Eman Communications supports mapping 1x400G optical signal or 4x100G optical signals received on the client side to 1 OTUC4 signal and interconverting OTUC4 signals with optical signals of WDM wavelengths conforming to ITU-T standards. The line side adopts pluggable CFP2-DCO to achieve ultra-long distance transmission based on advanced technologies such as coherent detection.

Application case

  • Suitable for transmission over metropolitan networks and long-distance networks up to 600 km
  • Suitable for high-capacity DCI network transmission for enterprises, campuses, cloud computing, etc.
  •  Suitable for 400G links in existing OTN/DWDM infrastructures

Product Specification

Parameter Description
400G Muxponder (P616)
Function Support 1x400G or 4x100G service signals mapping to 1 OTUC4 signal
Slot number
Line side - Support 1 CFP2 port: adopts 400G CFP2-DCO module, hot-pluggable
  - Support wavelength adjustable, the range covers 191.35~196.1 THz.
  - Support light-emitting power adjustable
  - Support 100G/200G/400G rate adjustable
  - Support single fiber bidirectional transmission (optional)
Client side - Support 1 QSFP-DD/QSFP28, 3 QSFP28 modules hot-pluggable
OTN function - Frame format and overhead handling using ITU-T G709 recommendations
  - ODUk (k=4, C4) layer support PM and other functions
  - OTUk (k=4, C4) layer support SM functions
Support services 100GE, 100GE FlexE(Unware), 400GE, OTU4
Time delay measurement Online delay measurement based on ODU layer
Loopback Support line side and client-side loopbacks
LLDP Ethernet Support
Protection function No client-side sensing during protection reversal if with optical protection board (optional)
Performance monitoring and alarm monitoring
  - Support OTN performance monitoring and alarm monitoring functions
  - Support optical module temperature, current, optical power monitoring, etc.
  - Support Ethernet RMON monitoring
