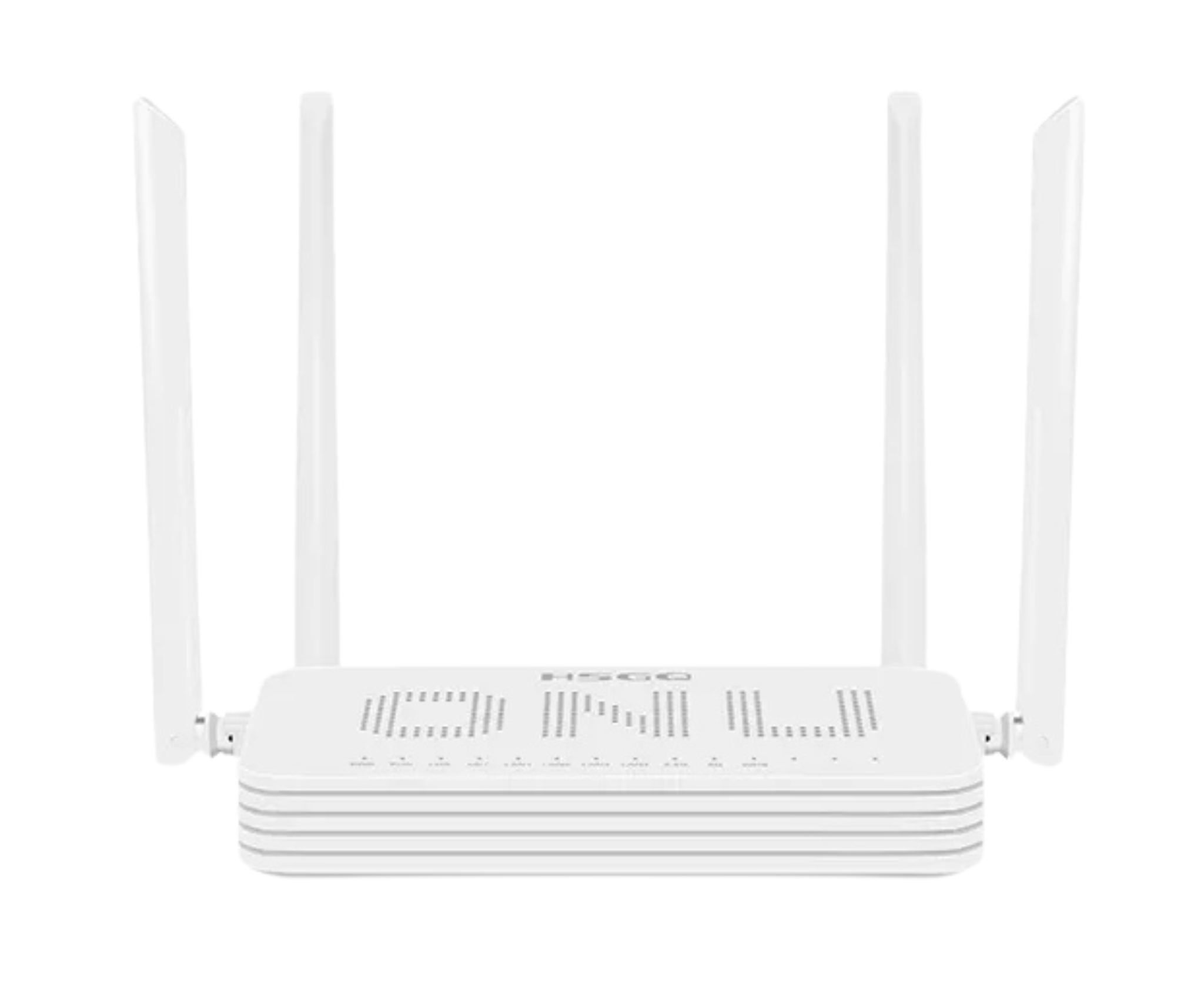

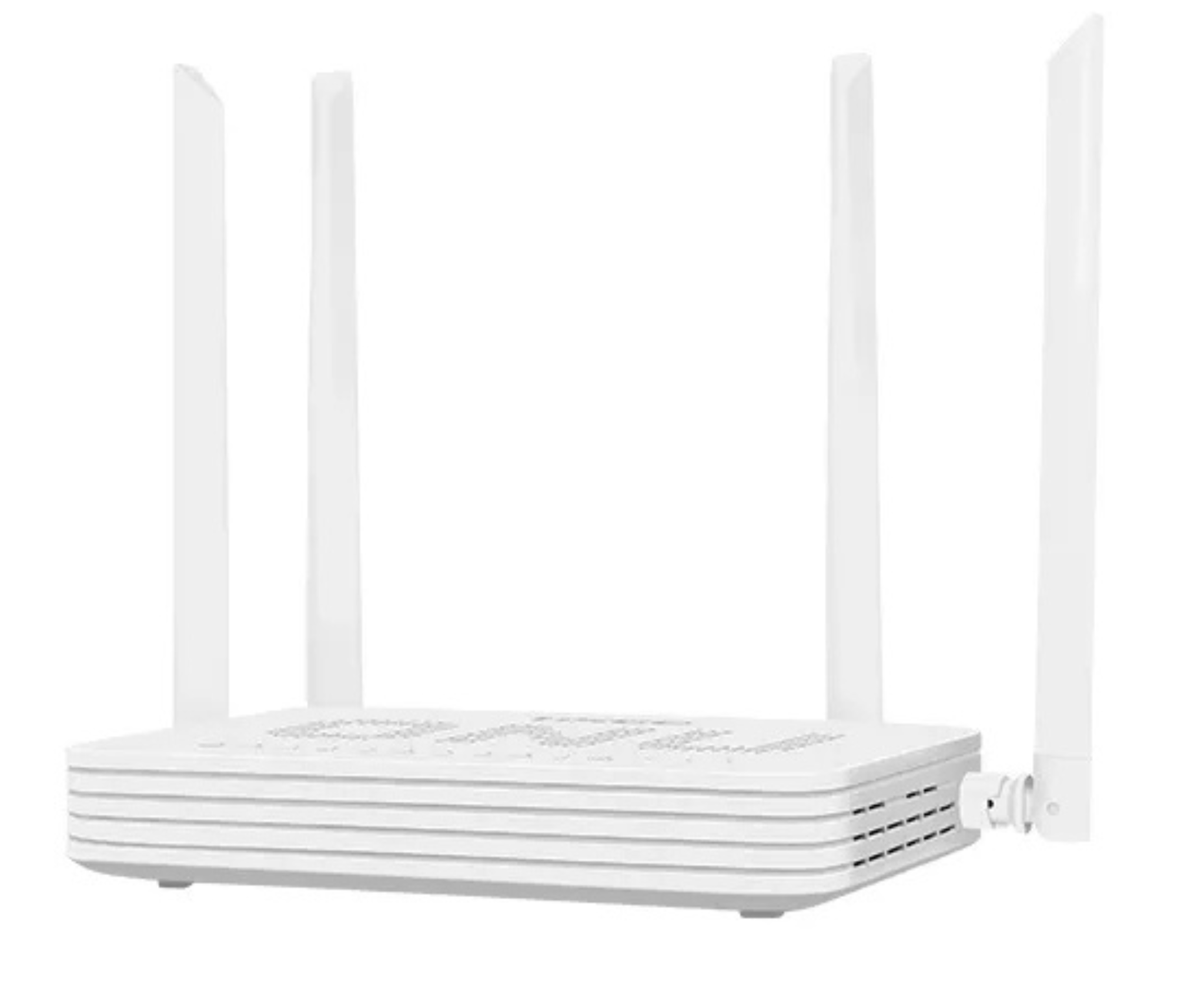

HSGQ-X410DW ONU APC 142

Technical Parameter

User interface	4 10/100/1000M RJ45 port 2.4GWiFi/5GWiFi
PON	EPON&GPON mode adaptive lnterface Type:SC-UPC/SC-APC Security: ONU authentication mechanism Network coverage radius: 20KM GPON: upstream 1.25Gbps /downstream 2.5Gbps Optical receive sensitivity:-7dBm~-28dBm Continuous light power: 0.5dBm~+5dBm EPON: upstream 1.25Gbps /downstream 1.25Gbps Optical receive sensitivity:-7dBm~-27dBm Continuous light power: 0dBm~4dBm
Ethernet	4*10/100/1000Mauto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance

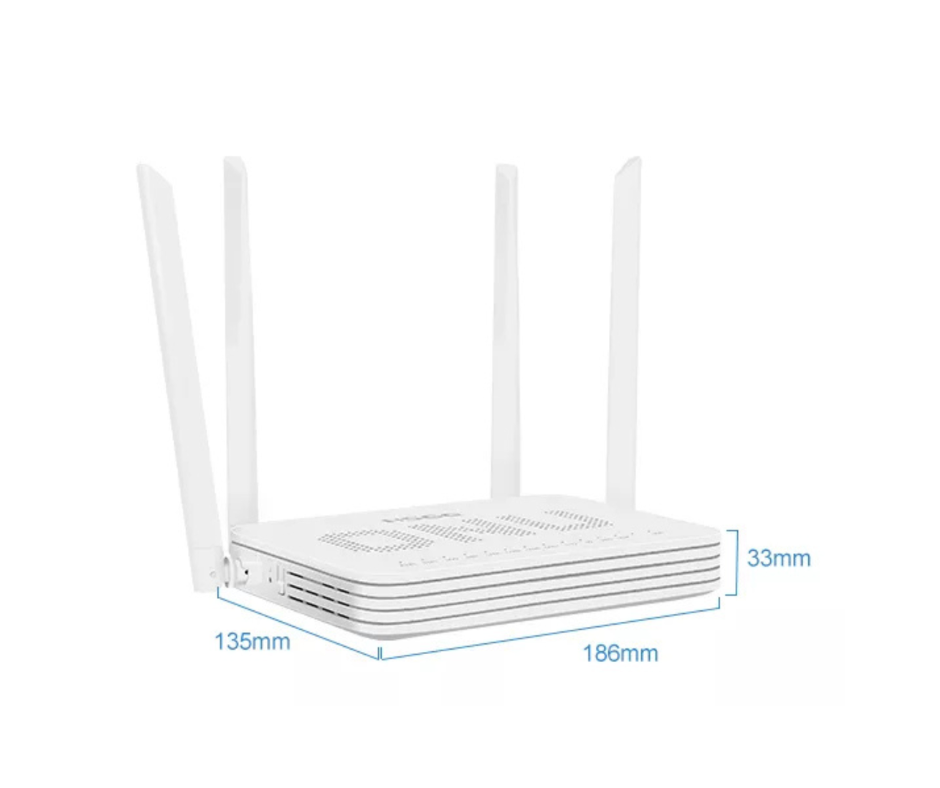

Size	160mm(L)×110mm(W) × 25mm(H)
Environment	Operating temperature:0℃～60℃ Operating humidity:10%~～85% non-condensing Storage temperature:-40℃～80℃ Storage humidity:5%～95% non-condensing
Power supply	12V1.5A DC power interface size:2.1mm/5.5mm
Power consumption	<12W
Management	WEB/TELNET/TR069/OMCI/OAM

Product Interfaces and Indicators Definitions

POWER

Power status

On: The ONU is power on Off: The ONU is Power off

PON

ONU Register

On: Success to register to OLT Blinking: lIn process of registering to OLT Off: Fail to register to OLT

LOS

Optical Signals

On: Optical link lower than receiver sensitivity Off: Optical in normal

LAN

LAN Port status

On: Ethernet connection is normal Blinking: Data is being transmitted Off: Ethernet connection is not set up

2.4G

WIFI	On: Wi - Fi function Opens Blinking: Data is being transmitted Off: Wi - Fi function closes

5G

WIFI	On: Wi - Fi function Opens Blinking: Data is being transmitted Off: Wi - Fi function closes

WPS

WPS	On: Terminal has connected Blinking:Terminal is connecting Off: Terminal not connected

NET

Internet status

On: ONU can access internet Off: ONU can not access internet
