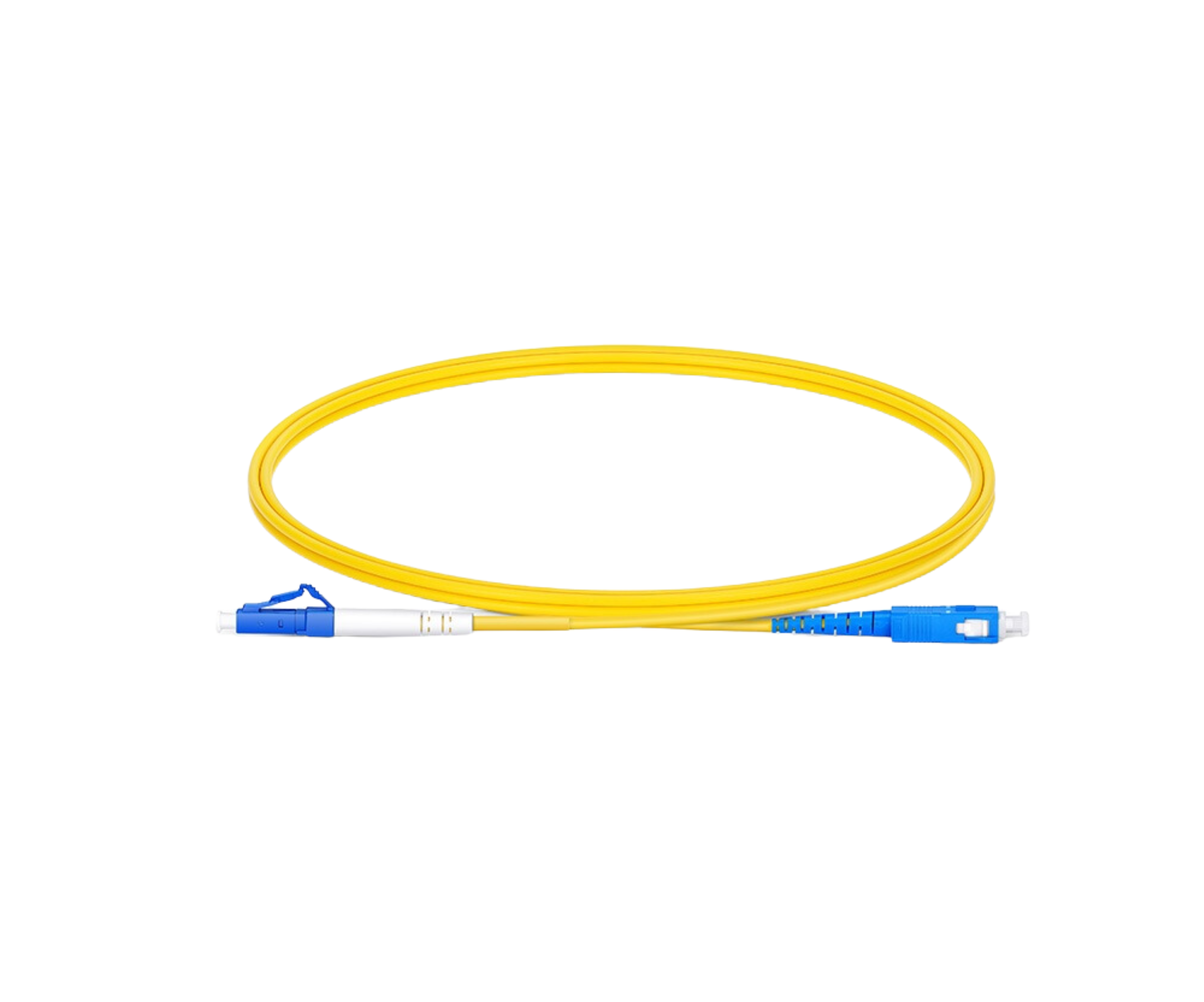

Patch Cord LC UPC to SC UPC 3.00mm Simplex 0.5M 177

Product Detail:

The 9/125μm OS2 single mode bend insensitive fiber optic cable has less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high-density cabling in data centers, enterprise networks, telecom rooms, server farms, cloud storage networks, and interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. Fiber patch cables are needed.

This 9/125 OS2 single-mode fiber optic cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm or up to 40km at 1583nm.

Significants:

Features:

• High-quality connectors ensure reliable performance.
• Compact design for easy installation and management.
• Compatible with various fiber optic standards.
• Duplex fiber count for bi-directional communication.
• PVC cable jacket for durability and flexibility.
• Wide operating temperature range for versatile deployment.

Introduction: The Patch Cord LC UPC to SC UPC 3.00mm Simplex 0.5M is a high-performance fiber optic cable designed to ensure reliable and efficient data transmission in single-mode applications. Featuring LC UPC (Ultra Physical Contact) connectors on one end and SC UPC (Ultra Physical Contact) connectors on the other, this patch cord minimizes signal loss and enhances performance, making it an ideal choice for short-distance fiber optic connections. The 0.5-meter length and 3.00mm outer jacket provide flexibility and protection for installations in confined spaces, data centers, and high-speed network environments.

Technical Parameters:

• Connector Type: LC UPC to SC UPC (Ultra Physical Contact)
• Cable Type: Simplex
• Cable Diameter: 3.00mm
• Cable Length: 0.5 meters
• Fiber Mode: Single-mode (SM)
• Fiber Type: OS2 (Single-Mode Fiber)
• Insertion Loss: <0.3 dB (typical)
• Return Loss: >50 dB (typical for LC and SC UPC connectors)
• Operating Temperature: -40°C to +75°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS Compliant, UL Listed
• Attenuation: ≤0.4 dB/km (at 1310nm)

Key Features:

• LC UPC to SC UPC Connectors: The LC UPC and SC UPC connectors offer superior signal transmission with minimal insertion loss and high return loss, ensuring clear and high-quality data transfer, even over short distances.
• Simplex Configuration: The Simplex design allows for one-way fiber transmission, which is ideal for point-to-point single-fiber connections in applications like patch panels, network switches, and telecom equipment.
• 3.00mm Durable Jacket: The 3.00mm outer jacket offers robust protection against physical damage, such as abrasion and wear, while maintaining flexibility for easy installation in tight spaces.
• Single-Mode OS2 Fiber: The OS2 single-mode fiber is designed for minimal signal attenuation, making it an excellent choice for long-distance, high-bandwidth applications where low-loss transmission is critical.
• Low Insertion Loss & High Return Loss: This patch cord is engineered to minimize insertion loss and provide high return loss, ensuring signal clarity and optimal network performance.

Product Advantages:

• High-Performance Data Transmission: The LC UPC to SC UPC connectors offer excellent signal integrity with low insertion loss, ensuring reliable, high-quality performance in demanding applications.
• Ideal for Short-Distance Installations: The 0.5-meter length is perfect for installations in spaces where a short, high-quality fiber optic connection is needed, making it ideal for tight spots or compact setups.
• Durability and Flexibility: The 3.00mm jacket offers enhanced protection while maintaining flexibility, making it easy to handle and install in confined spaces or areas that require a durable, flexible connection.
• Versatile Applications: This patch cord is perfect for use in data centers, telecommunications, network switches, fiber optic equipment, and other networking systems where a short-range, reliable fiber optic connection is needed.
• Cost-Effective Solution: With durable construction and high-performance capabilities, this patch cord provides a long-lasting, cost-effective solution for fiber optic connectivity, reducing maintenance costs and ensuring longevity.
• Ease of Installation: The 0.5-meter length provides the right balance between reach and compactness, making it easy to install in tight spaces without compromising performance.

The Patch Cord LC UPC to SC UPC 3.00mm Simplex 0.5M is an excellent choice for short-range fiber optic connections that demand high performance and reliability. Whether used in data centers, telecommunications, or other network systems, this patch cord ensures minimal signal loss, maximum performance, and a long-lasting, cost-effective solution for your fiber optic infrastructure.
