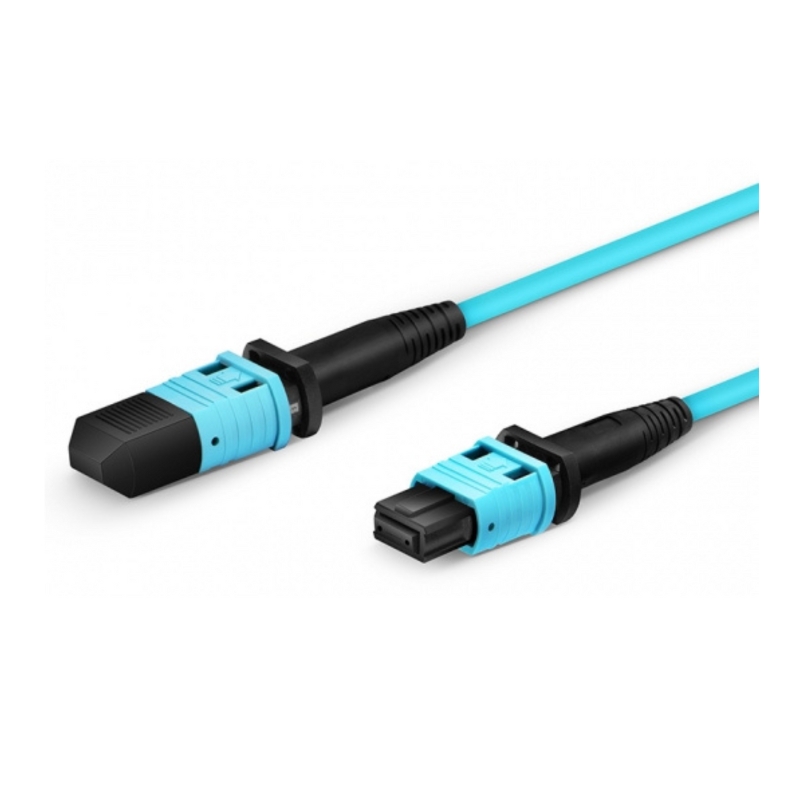

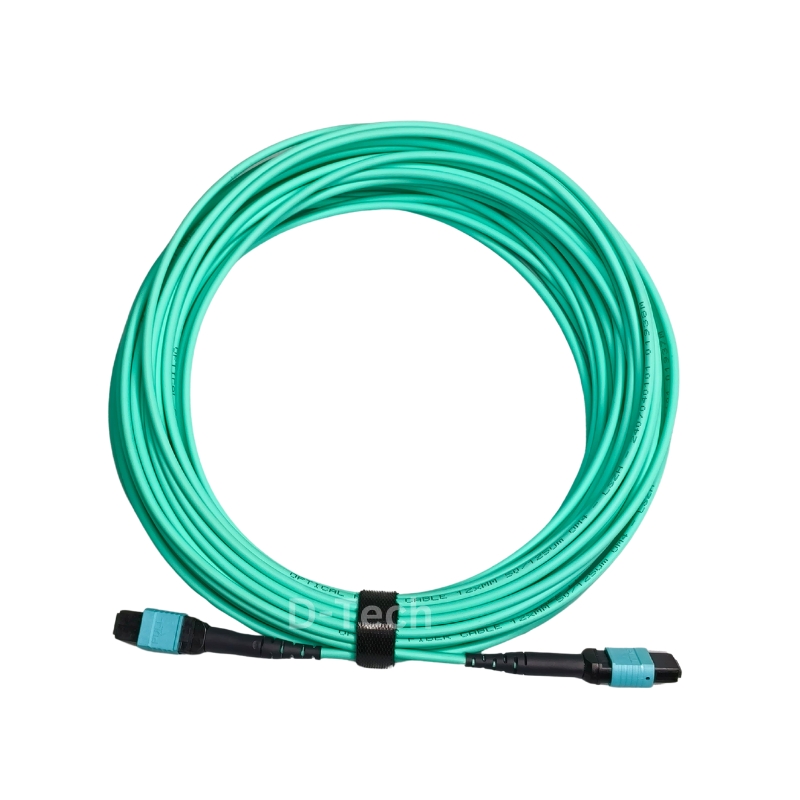

MPO Fiber Patch Cord OM3 (12 Fiber) – 3.0mm
Overview
| Product Overview | |
|---|---|
| MPO OM3 patch cords are high-density fiber optic cables designed for data centers and high-speed networks such as 40G and 100G parallel optics. A 12-fiber MPO connector integrates multiple fibers into one compact interface, reducing space usage and improving cabling efficiency. |
General Specifications
| Parameter | Specification |
|---|---|
| Model | MPO – MPO Fiber Patch Cord |
| Connector Type | MPO Female – MPO Female |
| Polarity | Type B (Crossed) |
| Fiber Type | OM3 Multimode |
| Fiber Count | 12 Fiber |
| Cable Diameter | 3.0 mm |
Optical Fiber Specification
| Parameter | Specification |
|---|---|
| Fiber Type | OM3 Multimode |
| Core / Cladding | 50 / 125 µm |
| Operating Wavelength | 850 nm / 1300 nm |
| Bandwidth | ≥ 2000 MHz·km @ 850 nm |
| Attenuation @ 850 nm | ≤ 3.0 dB/km |
| Attenuation @ 1300 nm | ≤ 1.0 dB/km |
| Standard | ISO/IEC 11801, TIA-568 |
MPO Connector Specification
| Parameter | Specification |
|---|---|
| Connector Type | MPO Female |
| Fiber Positions | 12 Fiber |
| Ferrule Type | MT Ferrule |
| Polish Type | UPC |
| Insertion Loss | ≤ 0.35 dB (Typical) |
| Low Loss Option | ≤ 0.20 dB |
| Return Loss | ≥ 20 dB |
| Connector Color | Aqua |
Cable Construction
| Parameter | Specification |
|---|---|
| Cable Type | Multimode Patch Cord |
| Fiber Count | 12 Fiber |
| Cable Diameter | 3.0 mm |
| Jacket Material | LSZH / PVC |
| Cable Color | Aqua |
| Strength Member | Aramid Yarn |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −40°C to +85°C |
Additional Specifications
| Base Unit | pc(1) |
|---|---|
| Category | Optical Fiber Cable and Accessories |
| SKU | |
| Product Code | 751 |
| Trackable | Yes |
| Taxable | Yes |
