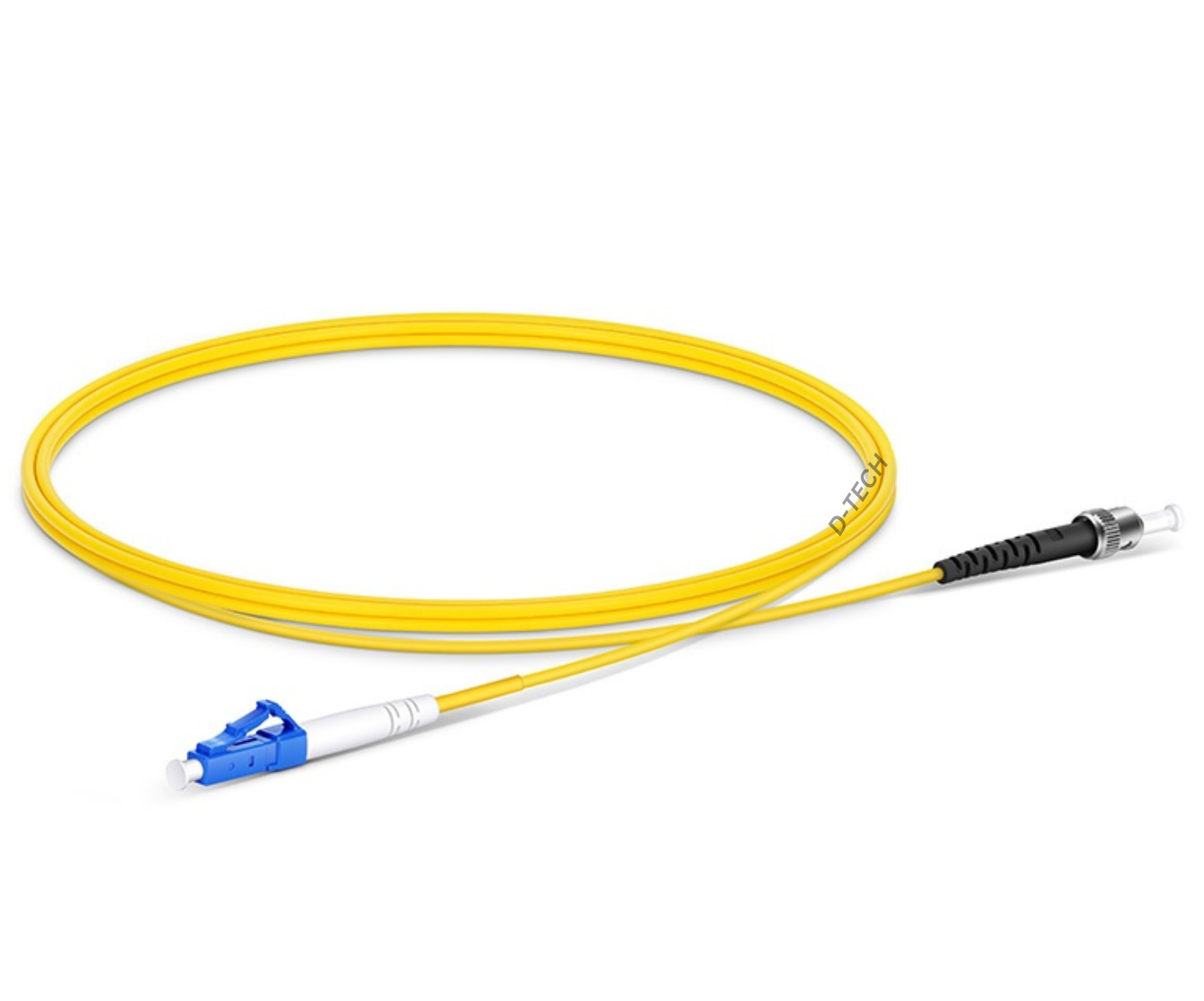

Patch Cord ST UPC to LC UPC 3.00mm Simplex 213

Rs 255.21

(3 Reviews)
Product Info
  • Unit: pc(1)
  • Product ID: 1610

Overview of the product for the 3.00mm Simplex patch cord, ST UPC to LC UPC

Patch cord single mode fiber optic cables are appropriate for use in cloud storage networks, telecom rooms, enterprise networks, server farms, and any other application where fiber jumper cables are required. In order to guarantee excellent quality, the fiber patch cord is optically tested for insertion loss and complies with RoHS regulations.

Fiber Optic Cable Specifications

CategorySpecification
Connector Details
Connector ALC UPC Simplex
Connector BST UPC Simplex
Fiber Specifications
Fiber ModeOS2 9/125μm (Single-Mode)
Fiber Count1 Fiber (Simplex)
Fiber GradeG.657.A1 (Bend-Insensitive, Compatible with G.652.D)
Wavelength1310 nm / 1550 nm
Mechanical Properties
Cable TypeTight-Buffered
Cable Outside Diameter (OD)2.0 mm
Flame RatingRiser (OFNR – Optical Fiber Non-Conductive Riser)
Min. Bend Radius (Fiber)10 mm
Min. Bend Radius (Cable)10×D (Dynamic) / 5×D (Static)
Connector Durability≥1000 mating cycles
Tensile Strength60N (Long-Term) / 100N (Short-Term)
Optical Performance
Insertion Loss≤0.3 dB
Return Loss≥50 dB
Attenuation0.36 dB/km @1310 nm / 0.22 dB/km @1550 nm
Environmental Ratings
Operating Temperature-20°C to +70°C (-4°F to 158°F)
Storage Temperature-40°C to +80°C (-40°F to 176°F)
Compliance
RoHS StatusCompliant

Overview of the product for the 3.00mm Simplex patch cord, ST UPC to LC UPC

Patch cord single mode fiber optic cables are appropriate for use in cloud storage networks, telecom rooms, enterprise networks, server farms, and any other application where fiber jumper cables are required. In order to guarantee excellent quality, the fiber patch cord is optically tested for insertion loss and complies with RoHS regulations.

Fiber Optic Cable Specifications

CategorySpecification
Connector Details
Connector ALC UPC Simplex
Connector BST UPC Simplex
Fiber Specifications
Fiber ModeOS2 9/125μm (Single-Mode)
Fiber Count1 Fiber (Simplex)
Fiber GradeG.657.A1 (Bend-Insensitive, Compatible with G.652.D)
Wavelength1310 nm / 1550 nm
Mechanical Properties
Cable TypeTight-Buffered
Cable Outside Diameter (OD)2.0 mm
Flame RatingRiser (OFNR – Optical Fiber Non-Conductive Riser)
Min. Bend Radius (Fiber)10 mm
Min. Bend Radius (Cable)10×D (Dynamic) / 5×D (Static)
Connector Durability≥1000 mating cycles
Tensile Strength60N (Long-Term) / 100N (Short-Term)
Optical Performance
Insertion Loss≤0.3 dB
Return Loss≥50 dB
Attenuation0.36 dB/km @1310 nm / 0.22 dB/km @1550 nm
Environmental Ratings
Operating Temperature-20°C to +70°C (-4°F to 158°F)
Storage Temperature-40°C to +80°C (-40°F to 176°F)
Compliance
RoHS StatusCompliant
Additional Specifications
Base Unit pc(1)
Category Optical Fiber Cable and Accessories
SKU
Product Code 196
Trackable Yes
Taxable Yes
