Splice On Connector (SOC) 207

Rs 0.00

(3 Reviews)
Product Info
  • Unit: pc(1)
  • Product ID: 1570

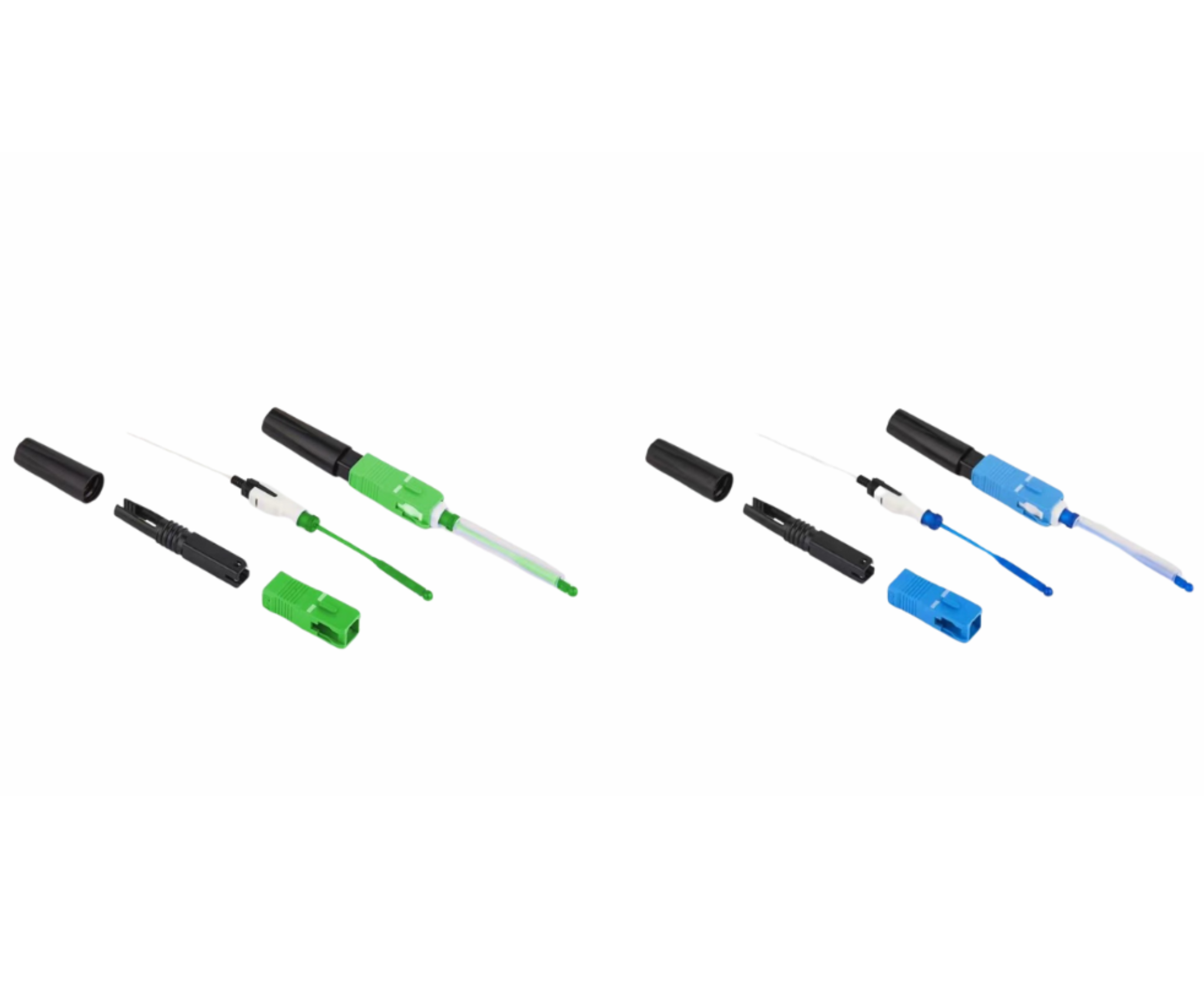

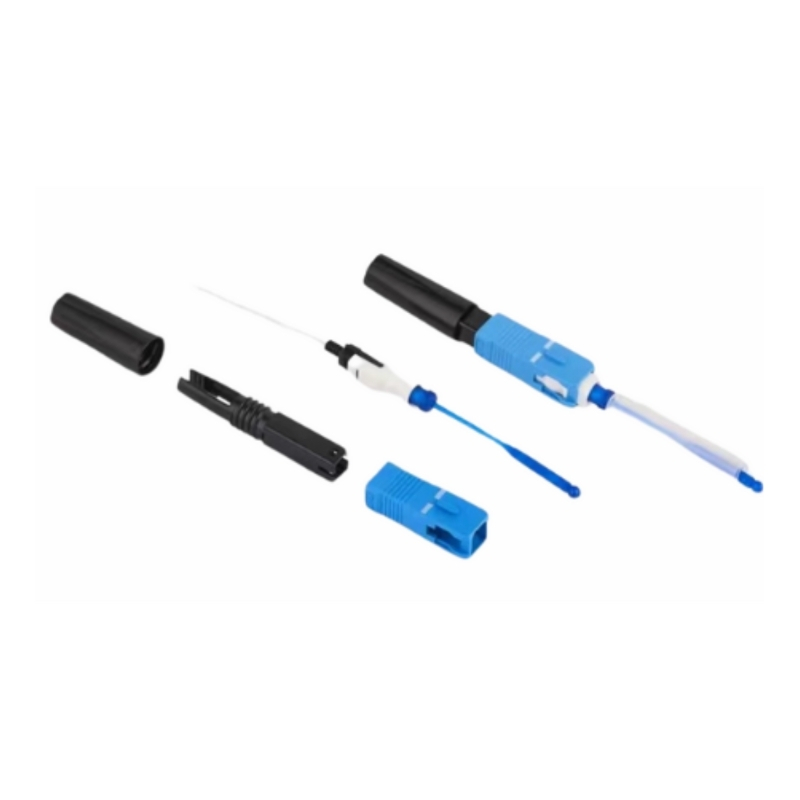

Splice On Connector (SOC) Overview

Product Overview of Splice On Connector (SOC):

Hot-melt quickly assembly connector are directly ground with a grinding of the ferrule connector directly with the butterfly cable 3.0mm, 2.0mm, 0.9mm using fusion splicer welding. The welding point is inside the connector tail, and there is no need for additional protection. It can improve the optical performance of the connector.

Specifications of Splice On Connector (SOC):

Parameters Value   Parameters Value
Insertion Loss Average ≤0.3 DB, max ≤0.5 DB   Repeatability (500 Mating Times) Average ≤0.3 DB, max ≤0.5 DB
Return Loss ≥ 45dB   Temperature Cycle
Tensile Strength F>50N   Vibration Test
Operating Temperature -20 ~ +75℃   Flooding Test
Storage Temperature -40 ~ +85℃   Tensile Strength F>50N

Splice On Connector (SOC) Overview

Product Overview of Splice On Connector (SOC):

Hot-melt quickly assembly connector are directly ground with a grinding of the ferrule connector directly with the butterfly cable 3.0mm, 2.0mm, 0.9mm using fusion splicer welding. The welding point is inside the connector tail, and there is no need for additional protection. It can improve the optical performance of the connector.

Specifications of Splice On Connector (SOC):

Parameters Value   Parameters Value
Insertion Loss Average ≤0.3 DB, max ≤0.5 DB   Repeatability (500 Mating Times) Average ≤0.3 DB, max ≤0.5 DB
Return Loss ≥ 45dB   Temperature Cycle
Tensile Strength F>50N   Vibration Test
Operating Temperature -20 ~ +75℃   Flooding Test
Storage Temperature -40 ~ +85℃   Tensile Strength F>50N
Additional Specifications
Base Unit pc(1)
Category OFC Passive Devices
SKU
Product Code 69
Trackable Yes
Taxable Yes
