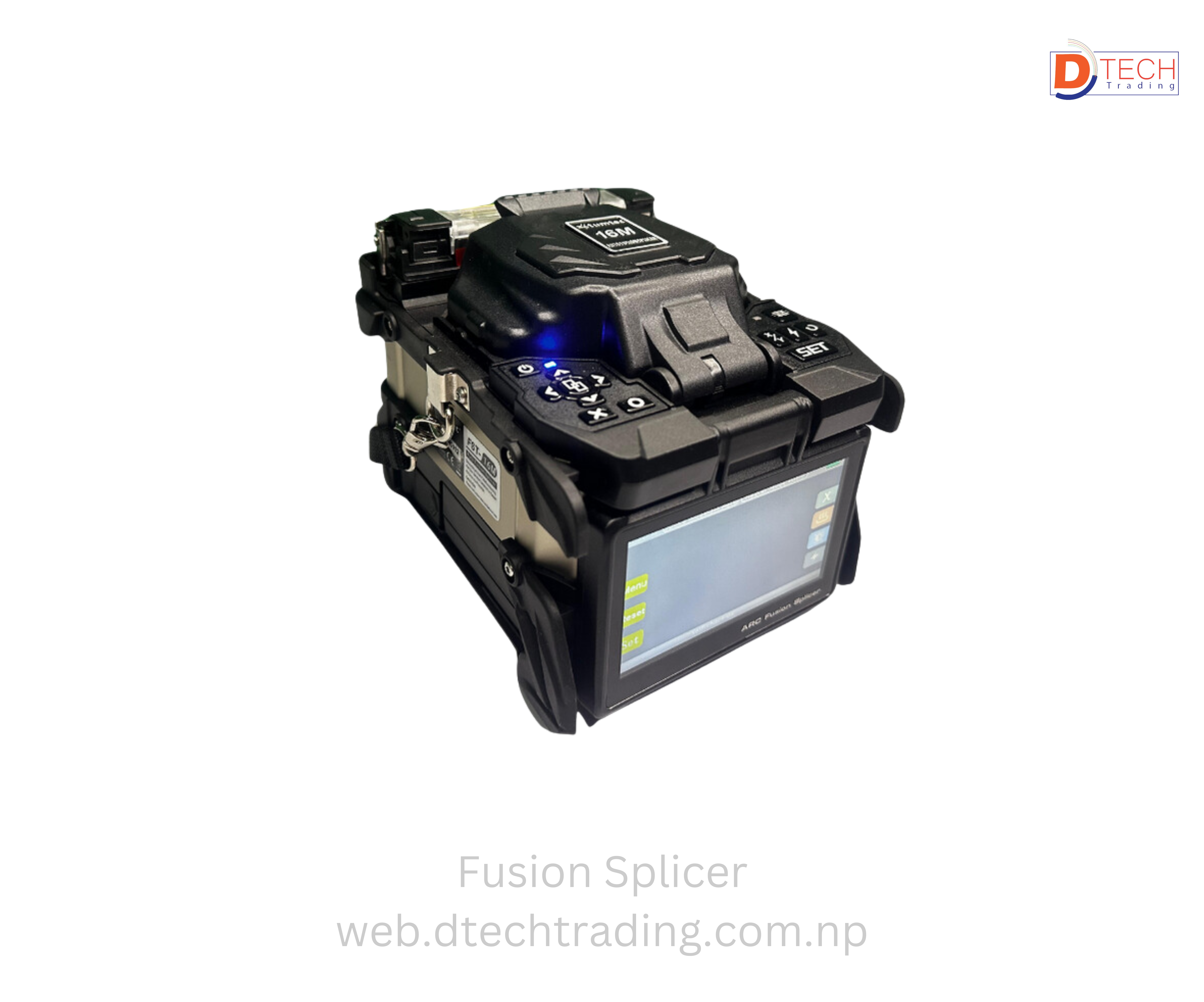

Fusion Splicer Comway C6 2

Discover our latest products and services

Fusion Splicer Comway C6 2

Rs 0.00

(3 Reviews)

Product Info

Unit: pc(1)
Product ID: 1328

Specification	Details
Size & Weight	D156 W135 H149 (mm), 2.0kg (2.2kg with battery)
Fiber Alignment	High precision PAS alignment
Fiber Type	SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZ/NZDS (ITU-T G.655), BI (ITU-T G.657)
Splice Mode	Single fiber
Fiber Diameter	Cladding diameter: 80-150µm, Coating: 100~3000µm
Cleave Length	250µm cladding diameter: 8-16mm, Over 250µm cladding diameter: 16mm
Splicing Programs	Max. 200
Splicing Time	6 sec. [SM Fast] program, 10 sec. [SM G652] program
Heating Programs	Max. 30
Heating Time	Adjustable, 12 sec. typical
Splice Protector	10~60mm
Splice Image Capture	Max. 800
Splice Data Storage	Provided
Splice Loss	SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZ/NZDS: 0.04dB, B1: 0.024dB
Return Loss	>60dB
Loss Estimation	Provided
Operation Condition	Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10~+50°C, Wind velocity: up to 15m/s
Storage Condition	Humidity: 0-95%, Temperature: -40~+80°C (Battery: -10~+40°C)
Tension	1.96~2.25N
Screen	4.1 inch high-light color screen
Fiber Magnification	300x for X or Y single axis view, 200x for both X&Y dual axis view
Port	High speed USB
Electrode Life	5000 arc discharges
Power Supply	AC 100-240V, 50/60Hz
Battery Parameters	5600mAh high capacity battery, more than 250 times splicing and heating
Tracking Visit our Social : D-TECH Facebook \|\| D-TECH TikTok \|\| D-TECH Youtube \|\| D-TECH LinkLink \|\| D-TECH Instagram	GPS positioning and tracking system through inbuilt SIM card (Option

Specification	Details
Size & Weight	D156 W135 H149 (mm), 2.0kg (2.2kg with battery)
Fiber Alignment	High precision PAS alignment
Fiber Type	SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZ/NZDS (ITU-T G.655), BI (ITU-T G.657)
Splice Mode	Single fiber
Fiber Diameter	Cladding diameter: 80-150µm, Coating: 100~3000µm
Cleave Length	250µm cladding diameter: 8-16mm, Over 250µm cladding diameter: 16mm
Splicing Programs	Max. 200
Splicing Time	6 sec. [SM Fast] program, 10 sec. [SM G652] program
Heating Programs	Max. 30
Heating Time	Adjustable, 12 sec. typical
Splice Protector	10~60mm
Splice Image Capture	Max. 800
Splice Data Storage	Provided
Splice Loss	SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZ/NZDS: 0.04dB, B1: 0.024dB
Return Loss	>60dB
Loss Estimation	Provided
Operation Condition	Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10~+50°C, Wind velocity: up to 15m/s
Storage Condition	Humidity: 0-95%, Temperature: -40~+80°C (Battery: -10~+40°C)
Tension	1.96~2.25N
Screen	4.1 inch high-light color screen
Fiber Magnification	300x for X or Y single axis view, 200x for both X&Y dual axis view
Port	High speed USB
Electrode Life	5000 arc discharges
Power Supply	AC 100-240V, 50/60Hz
Battery Parameters	5600mAh high capacity battery, more than 250 times splicing and heating
Tracking Visit our Social : D-TECH Facebook \|\| D-TECH TikTok \|\| D-TECH Youtube \|\| D-TECH LinkLink \|\| D-TECH Instagram	GPS positioning and tracking system through inbuilt SIM card (Option

Additional Specifications

Base Unit	pc(1)
Category	Optical Fusion Splicer & accessories
SKU
Product Code	177
Trackable	Yes
Taxable	Yes
