Product Info
- Unit: Set(1)
- Product ID: 948
Fusion Splicer Swift K11:
Benefits and Features
Benefits of Fusion
Splicer Swift K11
- 5.0-inch LCD Monitor with
Touchscreen: Wide, high-resolution color
touchscreen display with bidirectional operation system for easy viewing
and navigation.
- Powerful Battery: Lithium polymer battery with a large capacity ensures
extended operation, performing more than 250 splicing cycles and up to 350
cycles with an optional high-capacity battery.
- User-Friendly GUI: Intuitive graphical user interface simplifies
operations, even for less experienced users.
- Fiber Recognition Capability: Automatic fiber type recognition with the integrated
optical fiber recognition system and an LED lamp in the heater for
low-light conditions.
- Lowest Splice Loss: Advanced IPAAS core-to-core alignment (Image Pattern
Analysis Alignment System) guarantees minimal splice loss, setting an
industry benchmark.
Features of Fusion
Splicer Swift K11
- Fiber Alignment System:
- IPAAS core-to-core alignment
ensures precision in fiber splicing, resulting in superior splice
quality.
- Applicable Fiber Types:
- Supports fibers with diameters
ranging from 0.25mm to 4.0mm, including indoor cables and single fibers.
- High Precision and Speed:
- Typical splice loss: SM:
0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB.
- Splicing time: 6 seconds
(Quick Mode).
- Sleeve heating time: 9-13
seconds based on the sleeve type.
- Robust Design:
- Operates at altitudes of up to
5,000m and within a temperature range of -14℉ to 122℉.
- Resistant to wind (up to
15m/s), dustproof, waterproof, shockproof, and capable of handling harsh
environments.
- Storage and Data Management:
- Stores up to 10,000 splice
results in its internal memory, including images.
- USB connectivity for data
transfer and firmware updates.
- Power Supply and Battery Life:
- Powered by a rechargeable
lithium polymer battery (14.8V, 4700mAh or 6000mAh optional).
- External power options include
DC 12V, compatible with car cigar jacks.
- Camera and Display:
- Two CMOS cameras for X/Y
views, with up to 400X magnification for clear and accurate fiber
inspection.
- Electrode and Maintenance:
- Electrode life exceeds 3,500
splices, reducing the need for frequent replacements.
- Standard and Optional
Accessories:

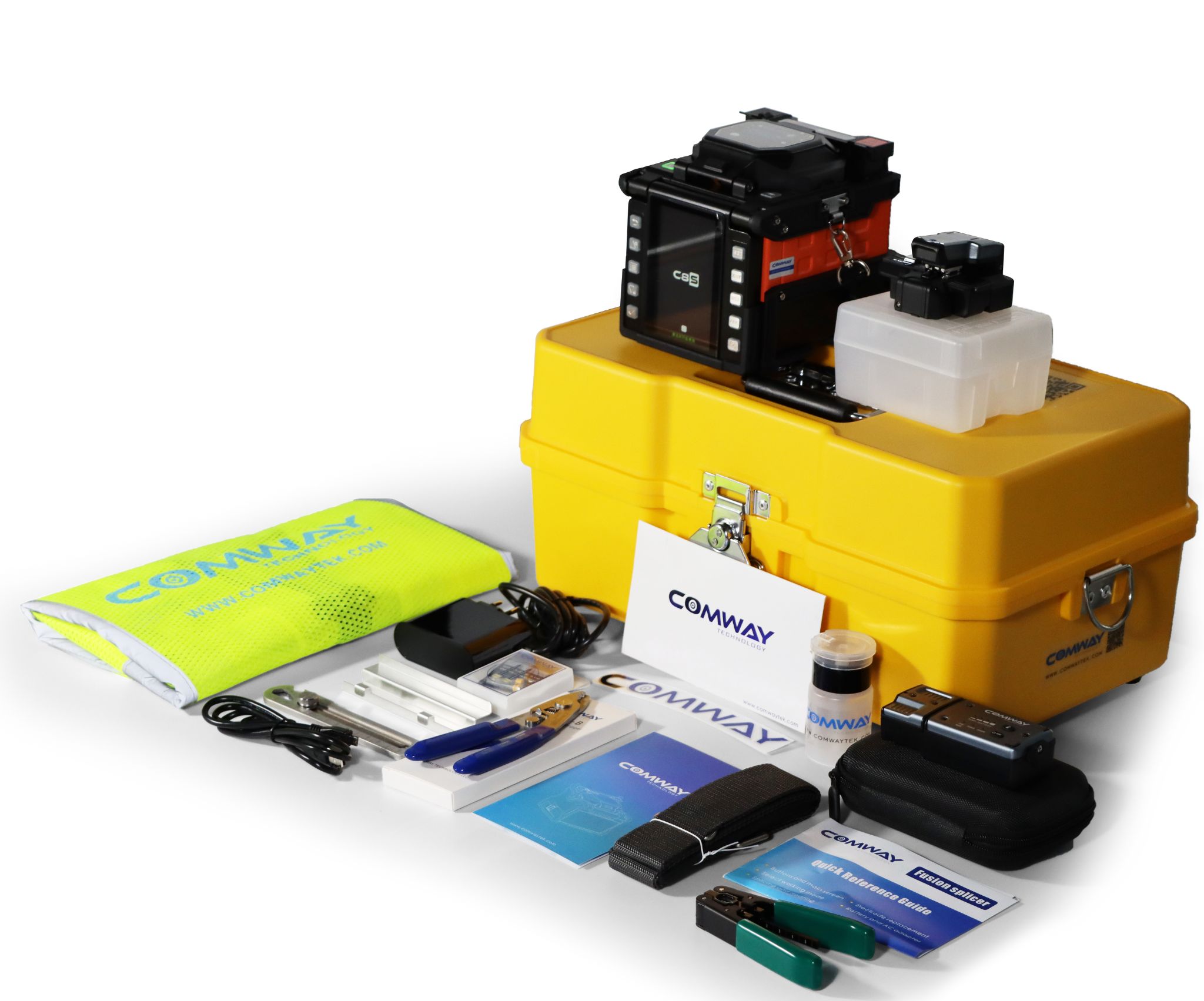

- Standard Package: Includes splicer, battery, AC adapter, spare

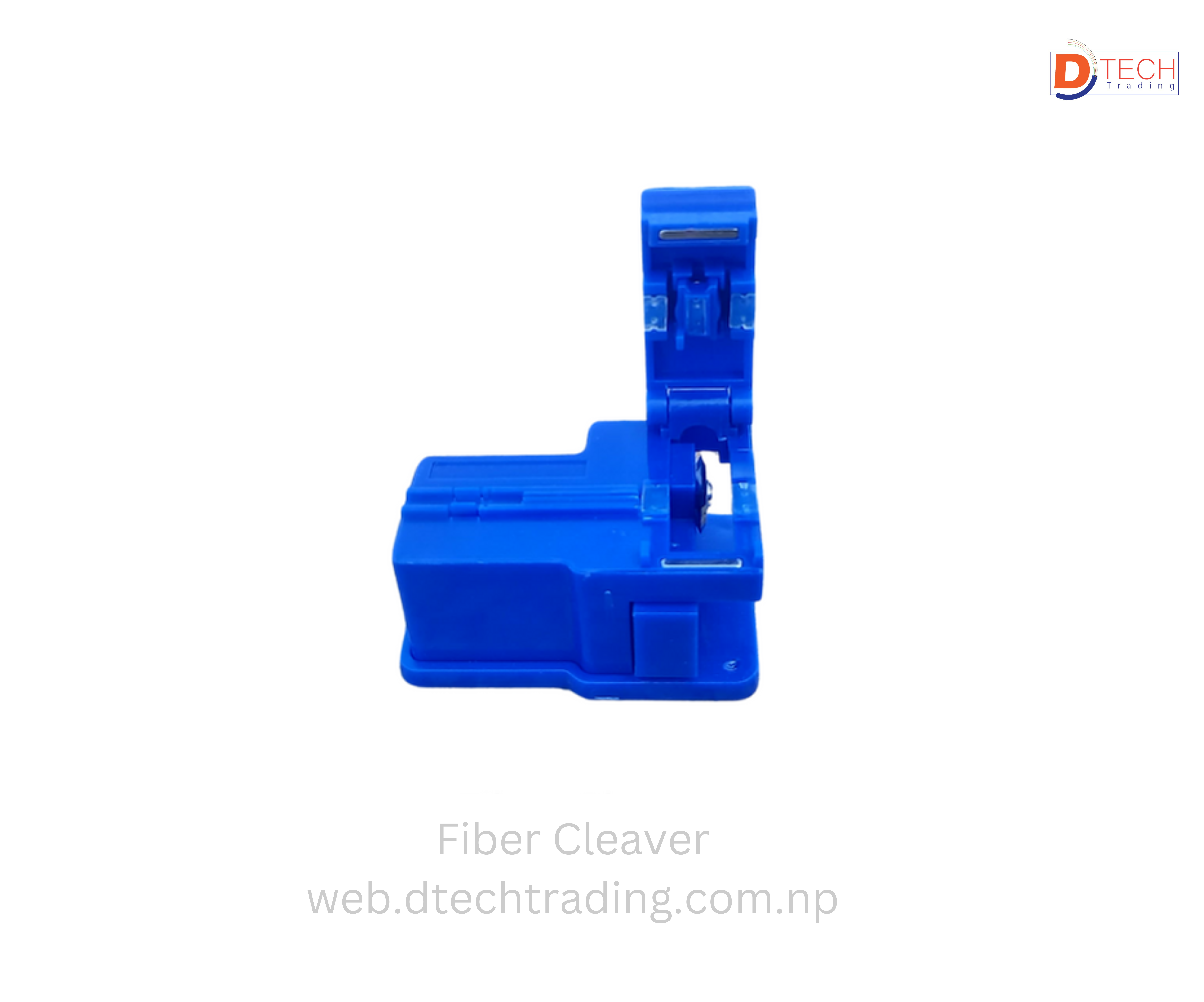

electrode, cleaver, cooling tray, manual stripper, alcohol dispenser, and
hard carrying case.
- Optional Accessories: Additional electrodes, cleaver blades, sleeves, SOC
connectors, and fiber holders available for customization.
Specifications at a
Glance
- Splicing Modes: 300 splice modes and 100 heat modes.
- Dimensions: 5.6” (W) x 6.4” (L) x 5.5” (H) (without bumper).
- Weight: 5.0 lbs with battery.
- Environmental Conditions: Operates reliably in extreme conditions with humidity
up to 95%.
- Connectivity: USB for data management.
Fusion Splicer
Swift K11 is ideal for technicians seeking high precision, reliability, and
durability in fiber splicing, even in demanding field environments.
