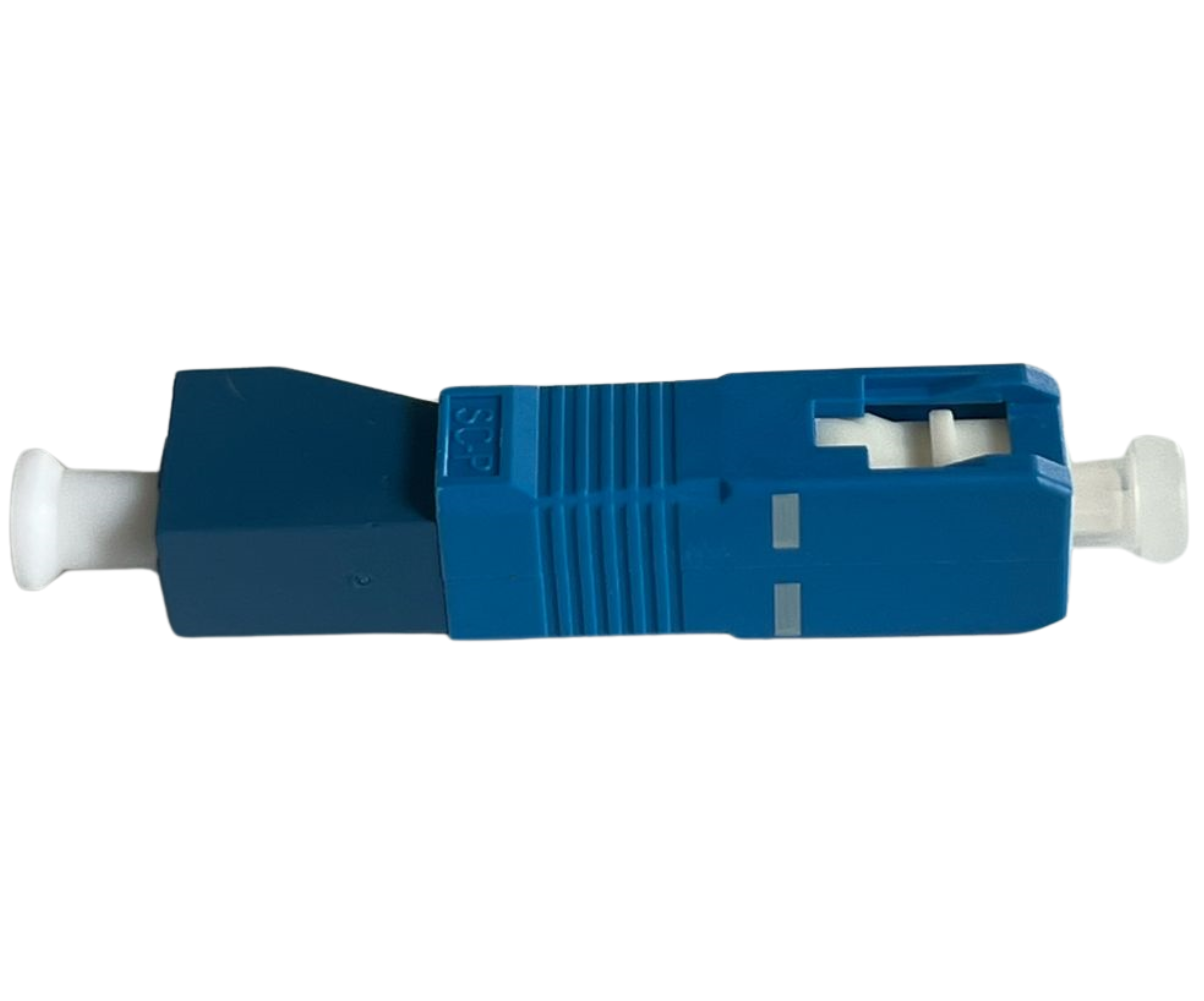

Hybrid Adapter SC/UPC Male to LC/UPC Female 262
Discover our latest products and services
.png)
Product Info
- Unit: pc(1)
- Product ID: 1580
Overview for SC UPC TO LC UPC Hybrid apapter:
This SC-to-LC hybrid adapter is a mating sleeve designed for connecting two fiber optic cables or connectors.
Hybrid Adapters offer a solution for applications where two different kinds of fiber connectors need to be linked. We supply various kinds of hybrid adapters, including the FC, ST, SC, LC, MU, and DIN series. Available in singlemode and multimode, most of the hybrid adapters use high-precision ceramic sleeves, which enable reliable ferrule mating and low insertion and return loss.
Product Description for SC-to-LC UPC Adapter:
Hybrid Adapters Features:
- Simple installation
- Plastic & Metal Construction
- Interchangeable for a wide range of products
- Male to Female
Specification for Hybrid Application:
| Requirement | Details |
|---|---|
| Insertion Loss | <= 0.3dB |
| Return Loss Standard | UPC >= 45dB, APC >= 55 dB |
| Test Wavelength | 1310/1550nm or 1260/1620nm |
| Note | single-line test is required (Reason: Double-line test cannot be completely cleared) |
| Operating Temperature | -40°C to -85°C |
| Appearance | Clean and smooth, no cracks or burrs |
| Compliance | The finished product complies with ROHS2.0 standards |
Overview for SC UPC TO LC UPC Hybrid apapter:
This SC-to-LC hybrid adapter is a mating sleeve designed for connecting two fiber optic cables or connectors.
Hybrid Adapters offer a solution for applications where two different kinds of fiber connectors need to be linked. We supply various kinds of hybrid adapters, including the FC, ST, SC, LC, MU, and DIN series. Available in singlemode and multimode, most of the hybrid adapters use high-precision ceramic sleeves, which enable reliable ferrule mating and low insertion and return loss.
Product Description for SC-to-LC UPC Adapter:
Hybrid Adapters Features:
- Simple installation
- Plastic & Metal Construction
- Interchangeable for a wide range of products
- Male to Female
Specification for Hybrid Application:
| Requirement | Details |
|---|---|
| Insertion Loss | <= 0.3dB |
| Return Loss Standard | UPC >= 45dB, APC >= 55 dB |
| Test Wavelength | 1310/1550nm or 1260/1620nm |
| Note | single-line test is required (Reason: Double-line test cannot be completely cleared) |
| Operating Temperature | -40°C to -85°C |
| Appearance | Clean and smooth, no cracks or burrs |
| Compliance | The finished product complies with ROHS2.0 standards |
Additional Specifications
| Base Unit | pc(1) |
|---|---|
| Category | OFC Passive Devices |
| SKU | |
| Product Code | 11 |
| Trackable | Yes |
| Taxable | Yes |
