Product Review:

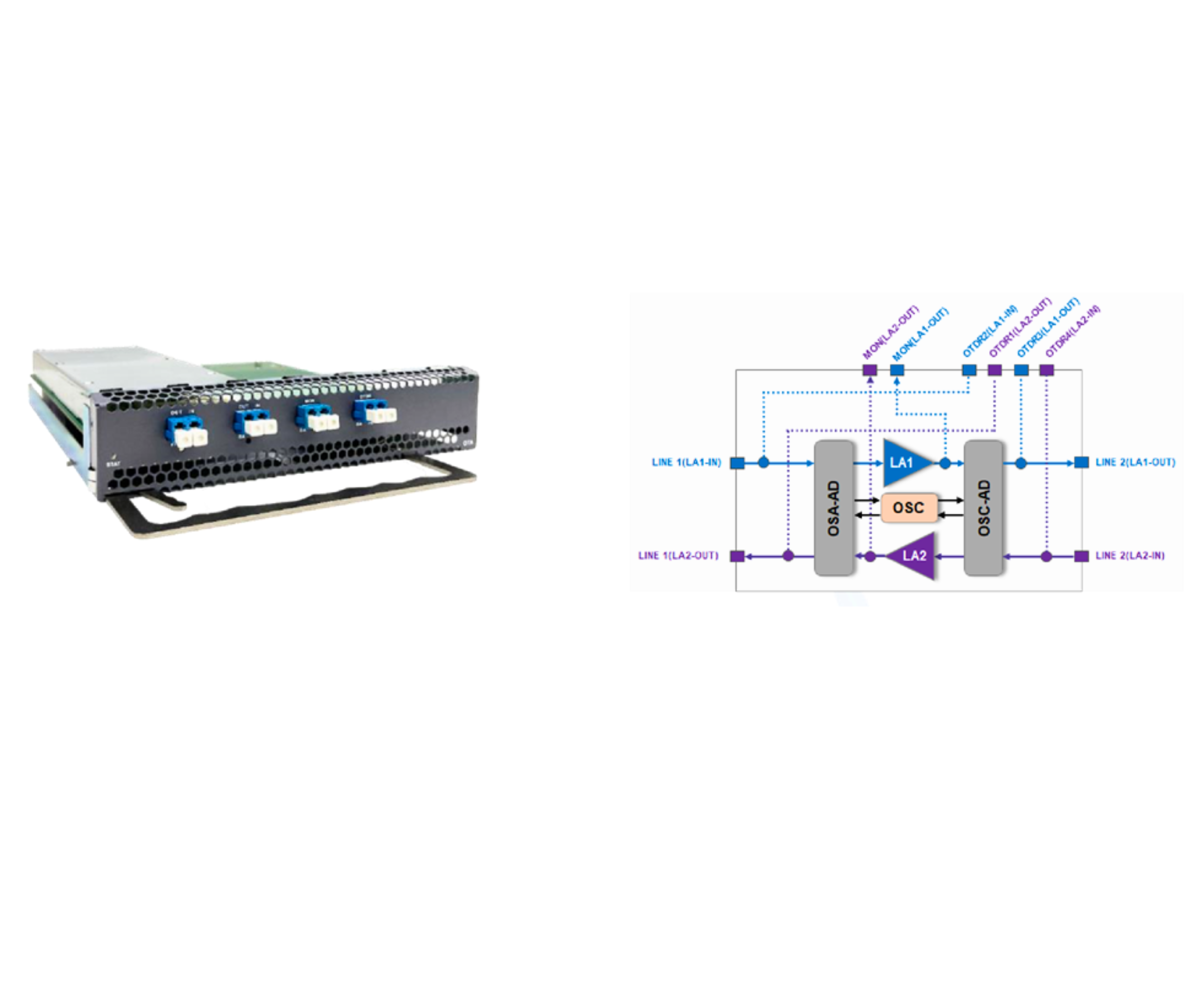

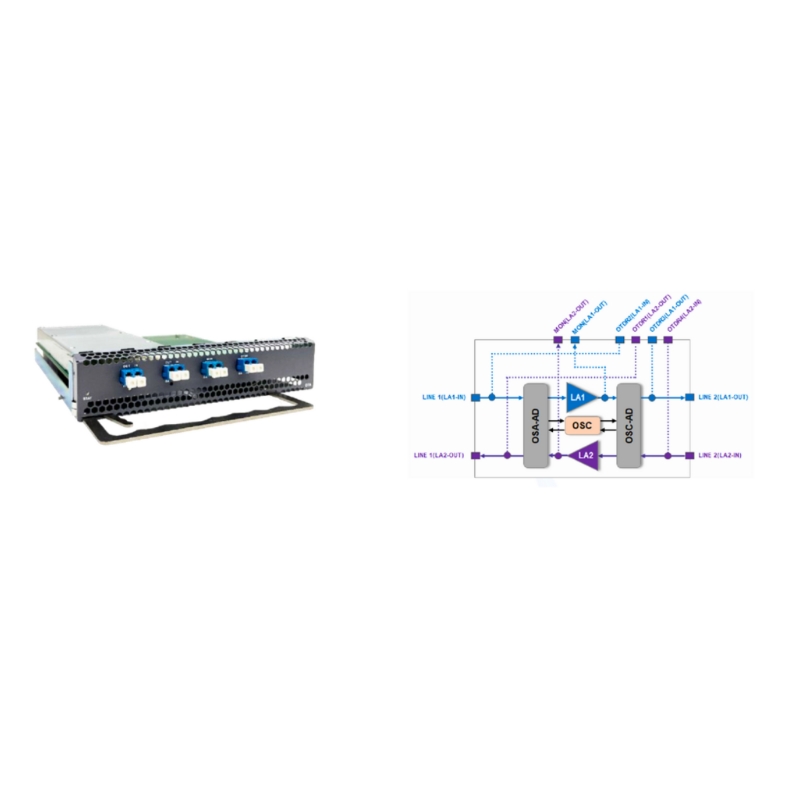

The main function of
OTA (Optical Terminal Amplifier) launched by D Tech Trading is to compensate
the power of the optical signal in the transmission link, and it can
simultaneously amplify the optical signals of up to 48 channels in C-band
(100GHz channel spacing) or 96 channels (50GHz channel spacing), with the
features of flat gain, adjustable gain, small noise index, and so on.
Meanwhile, the board has built-in OSC optical monitoring channel and supports
DCN communication based on OSC, which is an indispensable part of DWDM system
and future high-speed system and all-optical network for long-distance
transmission.
Application Case:
Product
Specification:
Parameter |
Description |
Function |
Support power
amplification and preamplification of the mux signal with built-in 1
directional OSC channel |
Slot number |
2 slots |
Integration level |
Built-in 1BA, 1PA,
unidirectional OSC, VOA, passive filter, etc. |
Safety |
Support Automatic
Power Reduction (APR) technology |
Monitoring Port |
Reserved OCM and
OTDR monitoring port for line side transmit and receive directions, can be
connected to external OCM and OTDR board |
Line side VOA
location |
PA front input (BA
without VOA) |
VOA Intrinsic
insertion loss |
<1dB |
VOA Adjustment range |
0 ~ 15dB |
OSC operating
wavelength |
1510nm |
OSC operating rate |
1.25Gb/s |
OTDR channel
wavelength |
1625nm |
OTDR Channel Loss |
<1dB |
Optical amplification
parameter:
Parameter |
BA: 21G13V |
PA: 21G20V |
PA: 21G30V |
Wavelength range
(nm) |
1528 nm~1568nm |
1528 nm~1568nm |
1528 nm~1568nm |
Operating modes |
AGC or APC
configurable |
AGC or APC
configurable |
AGC or APC
configurable |
Gain Range (dB) |
8 ~ 18dB
configurable |
15 ~ 25dB
configurable |
22 ~ 35dB
configurable |
Maximum total
optical power output (dBm) |
≥21 dBm |
≥21 dBm |
≥21 dBm |
Gain Flatness |
<1.5dB |
<1.5dB |
<1.5dB |
Gain slope |
-3 ~ 0dB |
-3 ~ 0dB |
-3 ~ 0dB |
Polarization-related
losses |
< 0.5dB |
< 0.5dB |
< 0.5dB |
Input Optical Power
Measurement Range (dB) |
-18 ~ 13dB |
-28 ~ 6dB |
-35 ~ 0dB |
Output Optical Power
Measurement Range (dB) |
-2 ~ 22dB |
-2 ~ 22dB |
-2 ~ 22dB |
Reflection
Coefficient |
< -30dB |
< -30dB |
< -30dB |
Gain Stability |
±0.5dB |
±0.5dB |
±0.5dB |
