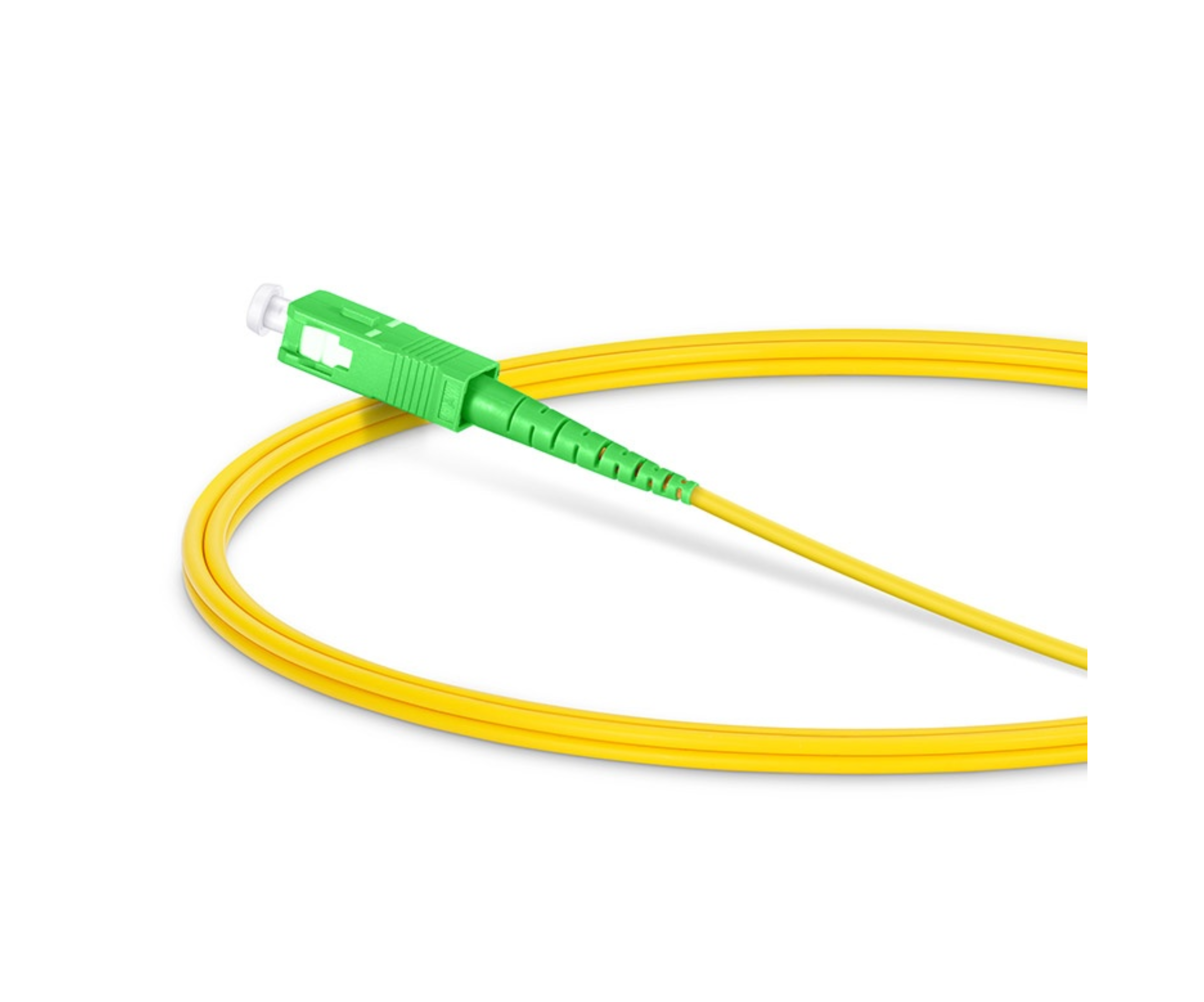

Patch Cord SC APC to SC APC 2M
Patchcord Overview:
The 9/125μm OS2 single mode bend insensitive fiber optic cable(patchcord) has less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. These patchcord can also save more space for your high-density cabling in data centers, enterprise networks, telecom rooms, server farms, cloud storage networks, and interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.s fiber patch cables are needed.
This 9/125 OS2 single mode Patchcord is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections.Where these type of patchcord can transport data for up to 10km at 1310nm, or up to 40km at 1634nm.
Product Description for patchcord:
Features of patchcord SC APC to SC APC:
- PVC (Riser) Flame-retardant Jacket
- Precision Zirconia Ferrule Connectors Ensure Low Loss
- G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
- Optical Testing Ensures Network Performance
- Compliant to TIA-604 (FOCIS)
Technical Specification for patchcord SC APC to SC APC:
| Property | Value |
|---|---|
| Connector Type | SC APC to SC APC |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125μm |
| Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥60dB |
| Min. Bend Radius (Fiber Core) | 10mm |
| Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Attenuation at 1310 nm | 0.36 dB/km |
| Attenuation at 1550 nm | 0.22 dB/km |
| Fiber Count | Simplex |
| Cable Diameter | 2.0mm |
| Cable Jacket | PVC (Riser/OFNR) |
| Polarity | A (Tx) to B (Rx) |
| Operating Temperature | -20 to 70°C (-4 to 158℉) |
| Storage Temperature | -40 to 80°C (-40 to 176℉) |
You can check similar type of patchcord with different distance or length at us:
PATCHCORD SC APC to SC APC 5MTR (https://emancommunications.com.np/patchcord-sc-apc-to-sc-apc-5mtr-in-nepal)
