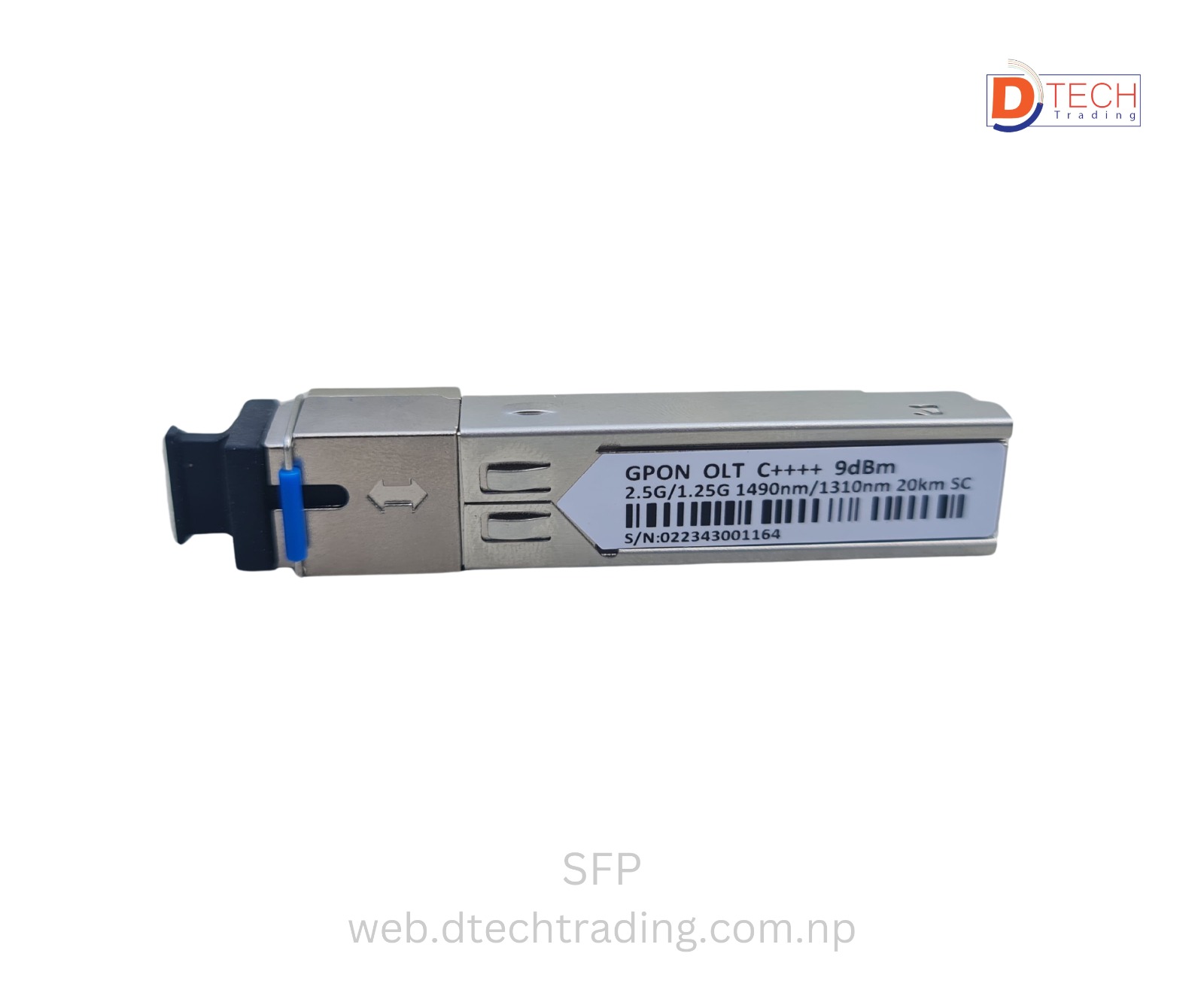

SFP GPON 20KM 9dbm 63

Discover our latest products and services

SFP GPON 20KM 9dbm 63

Rs 3796.45

(3 Reviews)
Product Info
  • Unit: pc(1)
  • Product ID: 499

Quick Details:

  • Model Number:GPONC+++
  • Item:GPON OLT Class C+++ SFP 20KM SC
  • Data-rate:2.5G/1.25G
  • Wavelength:Tx1490nm/Rx1310nm
  • connector Type:SC
  • Transmission Distance:20km
  • Power supply:+3.3V
  • Operating case temperature: 0 to 70 degree

2.5G/1.25G GPON OLT SFP C+ Transceiver 20KM SC Module

Description:

1. The C+++ SFP transceiver is a high-performance module for single fiber by using 1490nm continuous-mode transmitter and 1310nm burst-mode receiver.

Features

1. Single-fiber transmitter with single-mode SC receptacle

2.1490nm continuous-mode transmitter with DFB laser

3.1310nm burst-mode receiver with APD-TIA

4. A single 3.3V power supply

5. Reset burst-mode receiver design

6.Burst mode signal detection output, which is LVTTL compatible.

7. BURST mode received signal strength indication (RSSI) output

8.20Km Reach 32dbm link budget

9.Complies with huawei,zte,fiberhome, and Bdcom OLTs

10. Operating case temperature: Standard : 0 to +70°C



Applications:

Gigabit Passive Optical Networks (G-PON)—OLT side

Ordering information

Part NumberProduct Description
GPON SFP C++Tx1490nm, Rx1310nm , 2.5Gbps/1.25Gbps, Class C++, 0ºC ~ +70ºC With Digital Diagnostic Monitoring,TX >9dbm

Here is related SFP links below:

SFP GPON OLT C+++ 20km 7dmb:



Product Specifications
  • Compatible: 203-TRIAL-Cisco, Juniper, Huawei, Nokia 111
  • Warranty: 122-TRIAL-1 Year 33

Quick Details:

  • Model Number:GPONC+++
  • Item:GPON OLT Class C+++ SFP 20KM SC
  • Data-rate:2.5G/1.25G
  • Wavelength:Tx1490nm/Rx1310nm
  • connector Type:SC
  • Transmission Distance:20km
  • Power supply:+3.3V
  • Operating case temperature: 0 to 70 degree

2.5G/1.25G GPON OLT SFP C+ Transceiver 20KM SC Module

Description:

1. The C+++ SFP transceiver is a high-performance module for single fiber by using 1490nm continuous-mode transmitter and 1310nm burst-mode receiver.

Features

1. Single-fiber transmitter with single-mode SC receptacle

2.1490nm continuous-mode transmitter with DFB laser

3.1310nm burst-mode receiver with APD-TIA

4. A single 3.3V power supply

5. Reset burst-mode receiver design

6.Burst mode signal detection output, which is LVTTL compatible.

7. BURST mode received signal strength indication (RSSI) output

8.20Km Reach 32dbm link budget

9.Complies with huawei,zte,fiberhome, and Bdcom OLTs

10. Operating case temperature: Standard : 0 to +70°C



Applications:

Gigabit Passive Optical Networks (G-PON)—OLT side

Ordering information

Part NumberProduct Description
GPON SFP C++Tx1490nm, Rx1310nm , 2.5Gbps/1.25Gbps, Class C++, 0ºC ~ +70ºC With Digital Diagnostic Monitoring,TX >9dbm

Here is related SFP links below:

SFP GPON OLT C+++ 20km 7dmb:



Additional Specifications
Base Unit pc(1)
Category OFC Passive Devices
SKU
Product Code 0
Trackable Yes
Taxable Yes
