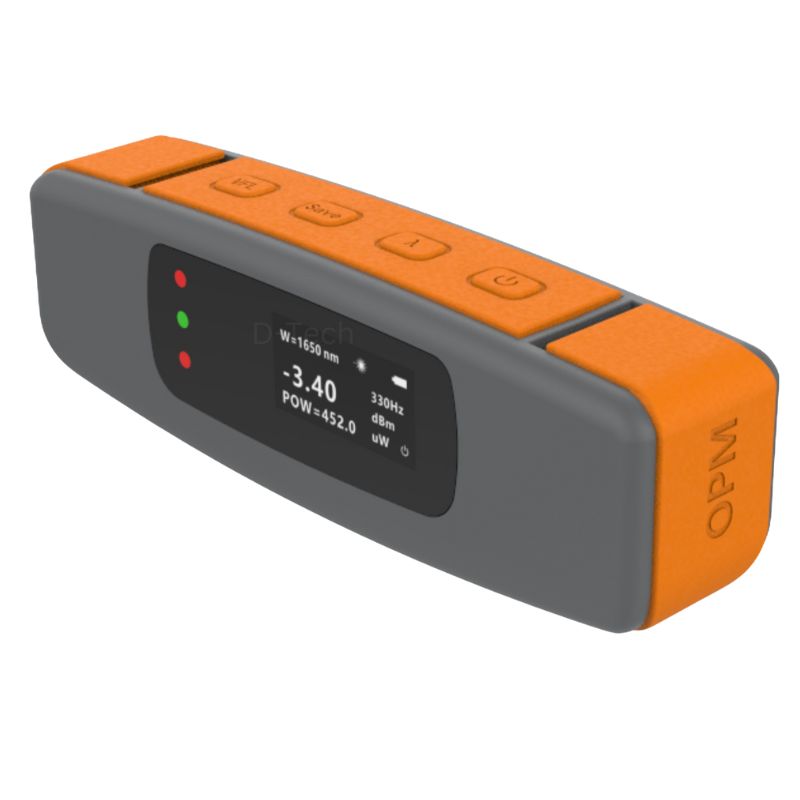

D-TECH OPM Mini 200

Optical power meter

Measuring range

DT200

DT201

+10~-70dBm

+26~-50dBm

Wavelength

800nm~1700nm

Connector

Universal

Detector Type

InGaAs

Uncertainty

5%

Calibrate wavelength

850/1300/1310/1490/1550/1625/1650 nm

Resolution

mW/uW：0.1% ，dBm/dB：0.01dBm

Recognizable frequency

CW、270Hz、330Hz、1kHz、2kHz

Memory

1000（Includes: wavelength, power value, frequency, unit）

User correction method

1：key operation 2：Set through PC software

Visual fault locator（VFL）

Wavelength

650±30nm

Output power

2mW/5mW/10mW/20mW/30mW/50mW   (Default:10mW)

Mode

CW/2Hz

Connector

Universal

Machine parameters

LCD

OLED white light (resolution: 128x64), visible under strong light

Power

3.7V/500mAh Lithium battery

Charging interface

Type C

Operating time

>16 hours（Only Power meter operation）

Auto off time

10 minutes

Operation temperature

-10~+50℃

Storage temperature

-40~+60℃(*Lithium batteries are not suitable for long-term high-temperature storage)

Relative humidity

0~95%（No condensation）

Size/weight

98X33X23mm /50g
