Mini Pro OTDR (DT-700) 264
Discover our latest products and services
Product Info
- Unit: Set(1)
- Weight: 0.7000 kg
- Product ID: 1712

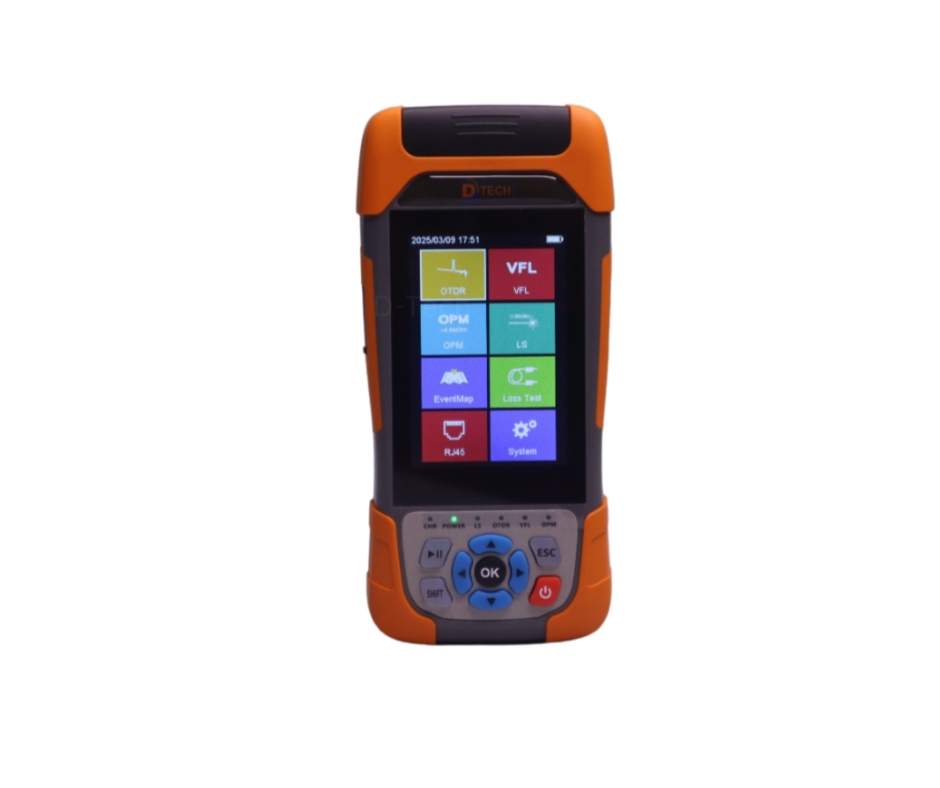

DT-700 Series OTDR
The Mini Pro OTDR (DT-700) is a compact, multi-functional optical time- domain reflectometer designed for professionals involved in fiber optic network installation, testing, and maintenance. Its lightweight design and comprehensive features make it an essential tool for ensuring the integrity and performance of fiber optic systems.
Product Features
1. 3 .5" FTF LCD, Capacitive TP
2. Minimum Measurement: 2 .5 m
3. Palm design, compact and lightweight
4. Large capacity battery, 20 hours
5. Hidden interface, shock and fall resistant
6.
Multi-function

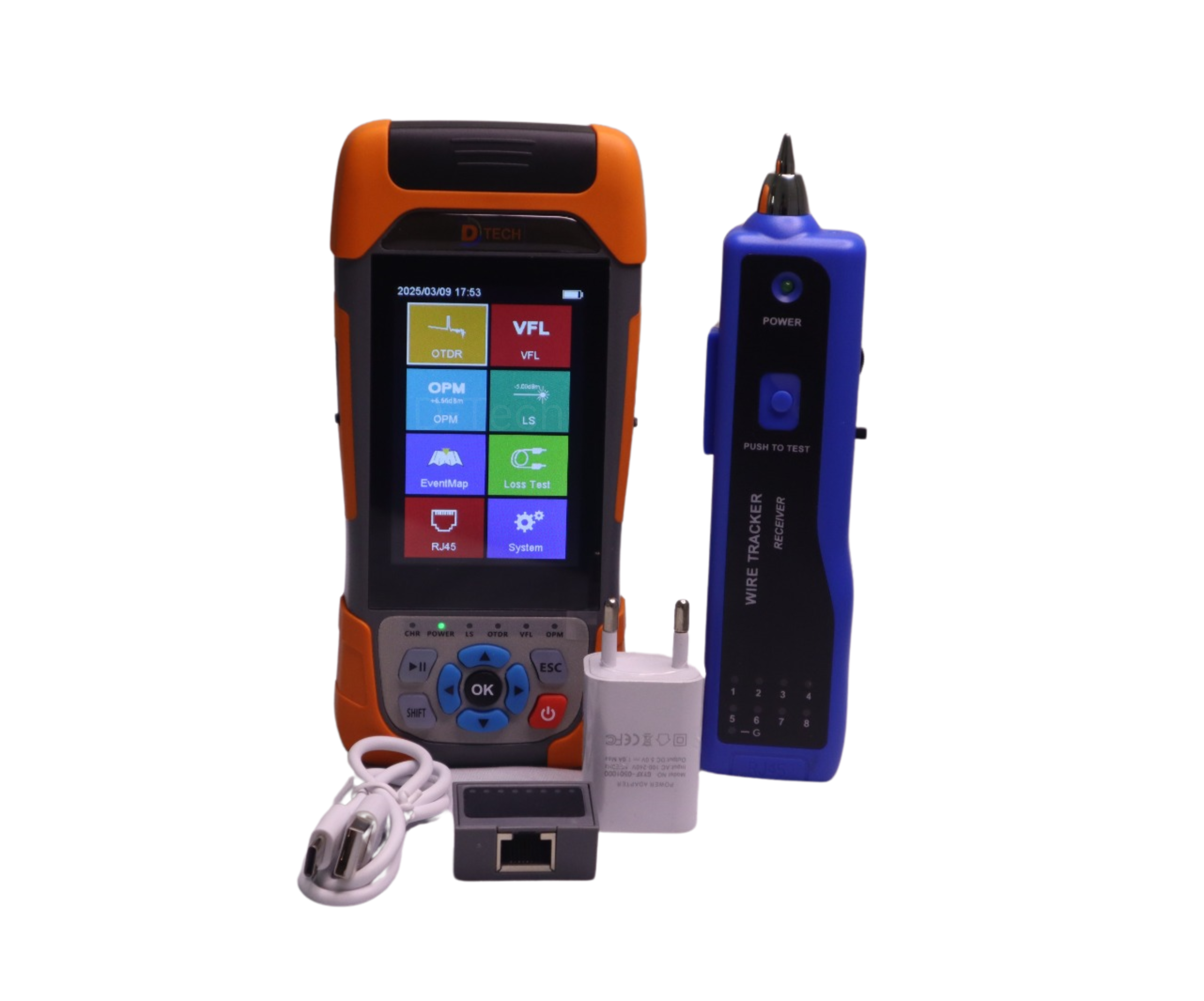

integration: OTDR / LS /VFL/ Network cable test/Flashlight
Product Specification
|
Module |
DT-700 |
|
Wavelength |
1310/ 1550± 20nm |
|
Dynamic range |
24/22dB |
|
Fiber type |
G .652D |
|
Event dead zone |
2.5 m |
|
Attenuation zone |
8 m |
|
Measuring range |
100m/500m/1km/2km/5km/10km/20km/40km/60km/90km |
|
Pulse width |
5ns/10ns/20ns/50ns/100ns/200ns/500ns/1us/2us/5us/10us |
|
Accuracy |
±( 1m+Sampling
interval+0.005% X measuring range) |
|
Linearity |
±0 .2dB/dB |
|
Sample points |
Maximum sampling
points：20000 |
|
Sampling resolution |
25cm~8m |
|
Loss resolution |
0 .001dB |
|
Range resolution |
0 .001m |
|
Refractive index |
1 .0000~2 .0000 |
|
Reflection accuracy |
±3d B |
|
File format |
Standard sorfile
format |
|
Safety level |
C lass 3B |
|
Temperature / humidity |
Ambient temperature：- 10℃~50℃ Storage
ambient temperature：-40℃~+70℃ Humidity：0~90%(non condensing) |
|
Size / Weight |
Size ：17cmX12cmX3cm weight：340g |
|
PM |
Laser source(Only
single mode) |
Other module |
|||
|
Wavelength |
850/ 1300/ 1310/ 1490/ 1550/ 1625/ 1650nm |
Wavelength |
1310/1550nm |
VFL |
≥10mW |
|
Range |
A:-70~+10dBm
B:-50~+26dBm |
Laser type |
FP - LD |
RJ45 |
Line sequence / line
finding |
|
Frequency |
270Hz/330Hz/ 1k Hz/2 k Hz |
Power |
-5dBm±2dB |
Battery |
4000mA h/3 .7V |
|
Uncertainty |
±5% |
Uncertainty |
±5% |
Adapter |
USB(Type C) |
|
Connector |
Universal
head:FC/SC/ST |
Connector |
FC/SC/ST |
Memory |
Inside≥1000
,external:SD |
DT-700 Series OTDR
The Mini Pro OTDR (DT-700) is a compact, multi-functional optical time- domain reflectometer designed for professionals involved in fiber optic network installation, testing, and maintenance. Its lightweight design and comprehensive features make it an essential tool for ensuring the integrity and performance of fiber optic systems.
Product Features
1. 3 .5" FTF LCD, Capacitive TP
2. Minimum Measurement: 2 .5 m
3. Palm design, compact and lightweight
4. Large capacity battery, 20 hours
5. Hidden interface, shock and fall resistant
6.
Multi-function
integration: OTDR / LS /VFL/ Network cable test/Flashlight
Product Specification
|
Module |
DT-700 |
|
Wavelength |
1310/ 1550± 20nm |
|
Dynamic range |
24/22dB |
|
Fiber type |
G .652D |
|
Event dead zone |
2.5 m |
|
Attenuation zone |
8 m |
|
Measuring range |
100m/500m/1km/2km/5km/10km/20km/40km/60km/90km |
|
Pulse width |
5ns/10ns/20ns/50ns/100ns/200ns/500ns/1us/2us/5us/10us |
|
Accuracy |
±( 1m+Sampling
interval+0.005% X measuring range) |
|
Linearity |
±0 .2dB/dB |
|
Sample points |
Maximum sampling
points：20000 |
|
Sampling resolution |
25cm~8m |
|
Loss resolution |
0 .001dB |
|
Range resolution |
0 .001m |
|
Refractive index |
1 .0000~2 .0000 |
|
Reflection accuracy |
±3d B |
|
File format |
Standard sorfile
format |
|
Safety level |
C lass 3B |
|
Temperature / humidity |
Ambient temperature：- 10℃~50℃ Storage
ambient temperature：-40℃~+70℃ Humidity：0~90%(non condensing) |
|
Size / Weight |
Size ：17cmX12cmX3cm weight：340g |
|
PM |
Laser source(Only
single mode) |
Other module |
|||
|
Wavelength |
850/ 1300/ 1310/ 1490/ 1550/ 1625/ 1650nm |
Wavelength |
1310/1550nm |
VFL |
≥10mW |
|
Range |
A:-70~+10dBm
B:-50~+26dBm |
Laser type |
FP - LD |
RJ45 |
Line sequence / line
finding |
|
Frequency |
270Hz/330Hz/ 1k Hz/2 k Hz |
Power |
-5dBm±2dB |
Battery |
4000mA h/3 .7V |
|
Uncertainty |
±5% |
Uncertainty |
±5% |
Adapter |
USB(Type C) |
|
Connector |
Universal
head:FC/SC/ST |
Connector |
FC/SC/ST |
Memory |
Inside≥1000
,external:SD |
Additional Specifications
| Weight | 0.7000 kg |
|---|---|
| Base Unit | Set(1) |
| Category | Fiber Optical Testing Equipments |
| SKU | |
| Product Code | 37 |
| Trackable | Yes |
| Taxable | Yes |
