Fiber Identifier ( Live Identifier) 243

Discover our latest products and services

Fiber Identifier ( Live Identifier) 243

Rs 16000.00

(3 Reviews)
Product Info
  • Unit: pc(1)
  • Product ID: 477

Product Overview:

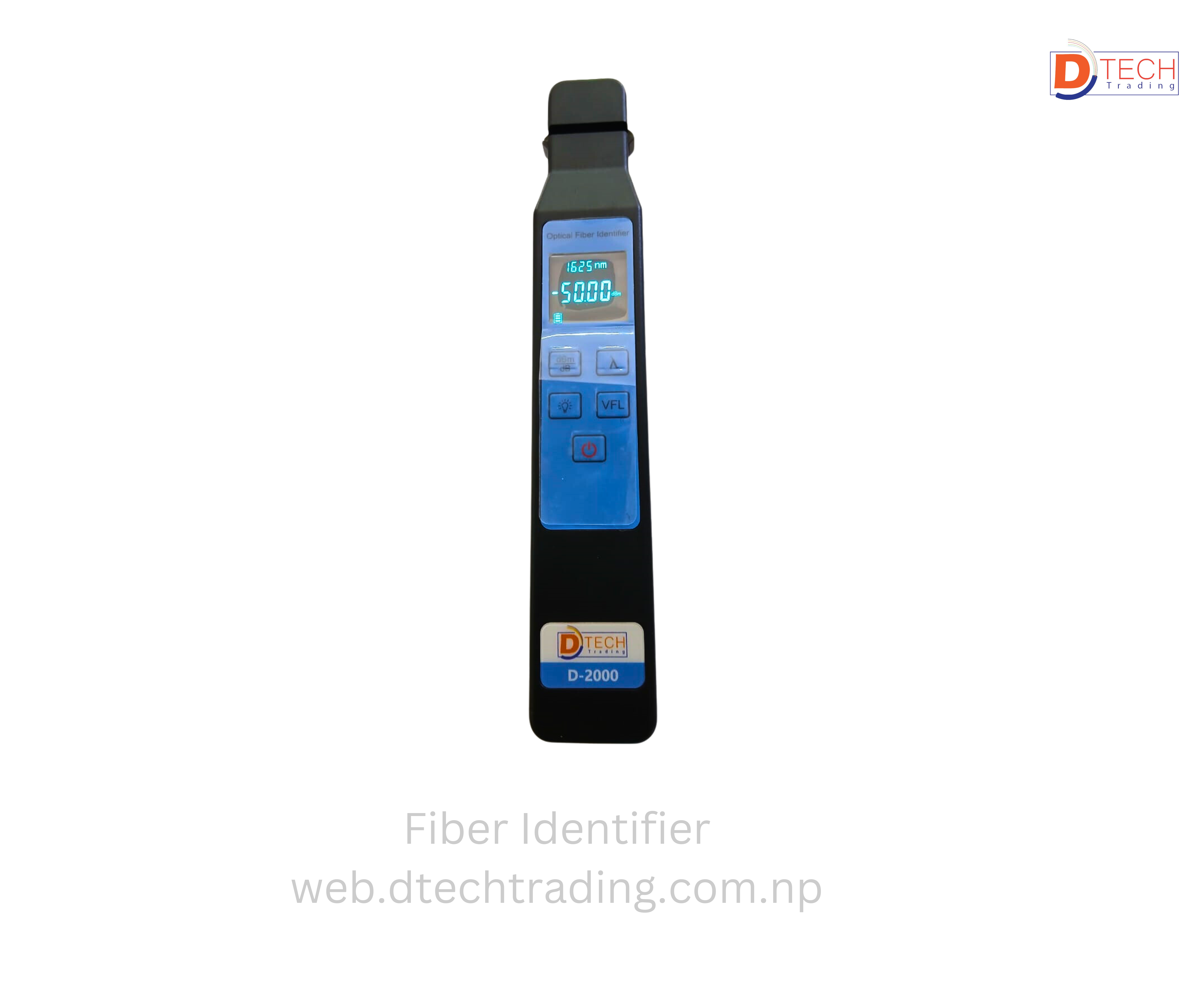

D-2000 fiber optic identification instrument is a new comprehensive test instrument newlydeveloped by our company, which not only has the function of conventional fiber optic identification instrument to carry out nondestructive fiber optic identification detection work inany position of single-mode and multimode fiber, but also has the optical power module and redlight visual fault location function necessary for fiber optic link construction and maintenance detection, which is a high-performance tester in current fiber optic network maintenance detection.

Product Features:

  • Color screen display
  • Metal structure 4-in-1 test fixture (can detect 250/900um and 2 to 3mm of various optical fibers)
  • With online test to identify power direction, frequency detection function
  • Low insertion loss, test dynamic range
  • With ordinary power meter function (including frequency detection)
  • With VFL function
  • Low battery prompt

Technical Specification:

FeatureDetails
Identifier Module
Wavelength Range (nm)800 - 1700
Probe TypeInGaAs
Adapter Type (mm)250um, 900um, 2mm, 3mm
Modulation Frequency (Hz)CW, 270, 1K, 2K
Optical Fiber Signal Display Detection Range (dBm)+13 to -50
Signal Direction Detection Range (dBm) (Typical Value)+13 to -35
Signal Frequency Indication (Hz)270, 1K, 2K
Signal Frequency Detection Range (dBm) (Typical Value)+13 to -30
Standard OPM Module
Test Wavelength (nm)850, 1300, 1310, 1490, 1550, 1625
Power Test Range (dBm)+26 to -50
UnitdBm, dB, xW
Resolution Ratio (dB)0.01
Uncertainty (dB)≤0.5
Test InterfaceΦ2.5mm Universal Interface
VFL Module
Wavelength (nm)650±10
Output Power (mW)≥10
Test InterfaceΦ2.5mm Universal Interface
Others
Display ScreenColor-LCD
Power Supply2*1.5V AA Battery
Operating Temperature (℃)-20 to +60
Storage Temperature (℃)-30 to +70
Dimension (mm) (without switch pull button)2203828
Weight (g) (without batteries)145

Product Overview:

D-2000 fiber optic identification instrument is a new comprehensive test instrument newlydeveloped by our company, which not only has the function of conventional fiber optic identification instrument to carry out nondestructive fiber optic identification detection work inany position of single-mode and multimode fiber, but also has the optical power module and redlight visual fault location function necessary for fiber optic link construction and maintenance detection, which is a high-performance tester in current fiber optic network maintenance detection.

Product Features:

  • Color screen display
  • Metal structure 4-in-1 test fixture (can detect 250/900um and 2 to 3mm of various optical fibers)
  • With online test to identify power direction, frequency detection function
  • Low insertion loss, test dynamic range
  • With ordinary power meter function (including frequency detection)
  • With VFL function
  • Low battery prompt

Technical Specification:

FeatureDetails
Identifier Module
Wavelength Range (nm)800 - 1700
Probe TypeInGaAs
Adapter Type (mm)250um, 900um, 2mm, 3mm
Modulation Frequency (Hz)CW, 270, 1K, 2K
Optical Fiber Signal Display Detection Range (dBm)+13 to -50
Signal Direction Detection Range (dBm) (Typical Value)+13 to -35
Signal Frequency Indication (Hz)270, 1K, 2K
Signal Frequency Detection Range (dBm) (Typical Value)+13 to -30
Standard OPM Module
Test Wavelength (nm)850, 1300, 1310, 1490, 1550, 1625
Power Test Range (dBm)+26 to -50
UnitdBm, dB, xW
Resolution Ratio (dB)0.01
Uncertainty (dB)≤0.5
Test InterfaceΦ2.5mm Universal Interface
VFL Module
Wavelength (nm)650±10
Output Power (mW)≥10
Test InterfaceΦ2.5mm Universal Interface
Others
Display ScreenColor-LCD
Power Supply2*1.5V AA Battery
Operating Temperature (℃)-20 to +60
Storage Temperature (℃)-30 to +70
Dimension (mm) (without switch pull button)2203828
Weight (g) (without batteries)145
Additional Specifications
Base Unit pc(1)
Category Fiber Optical Testing Equipments
SKU
Product Code 37
Trackable Yes
Taxable Yes
