DEVISER OTDR AE1001 232

Rs 70618.80

(3 Reviews)
Product Info
  • Unit: Set(1)
  • Weight: 1.9000 kg
  • Product ID: 1574

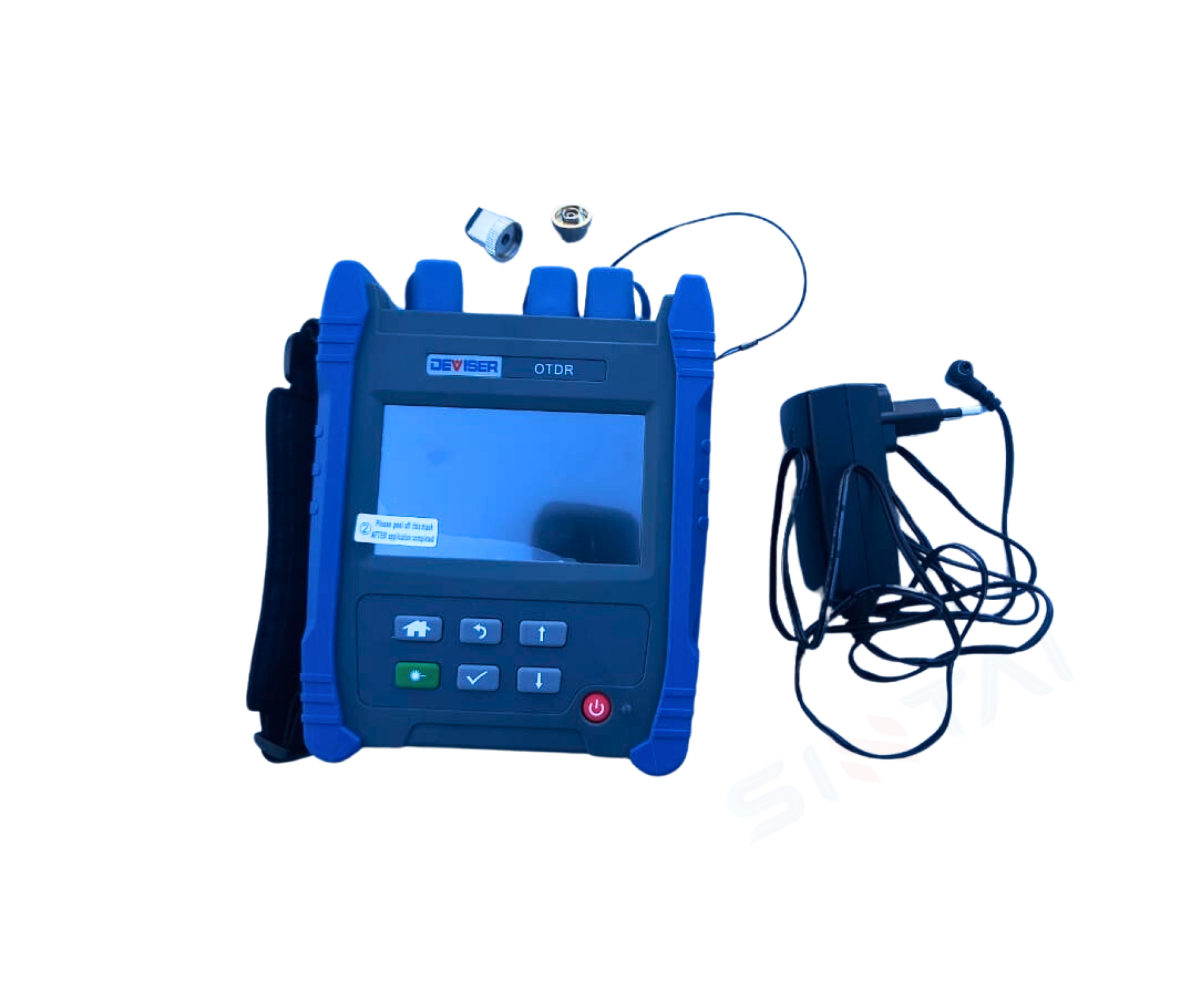

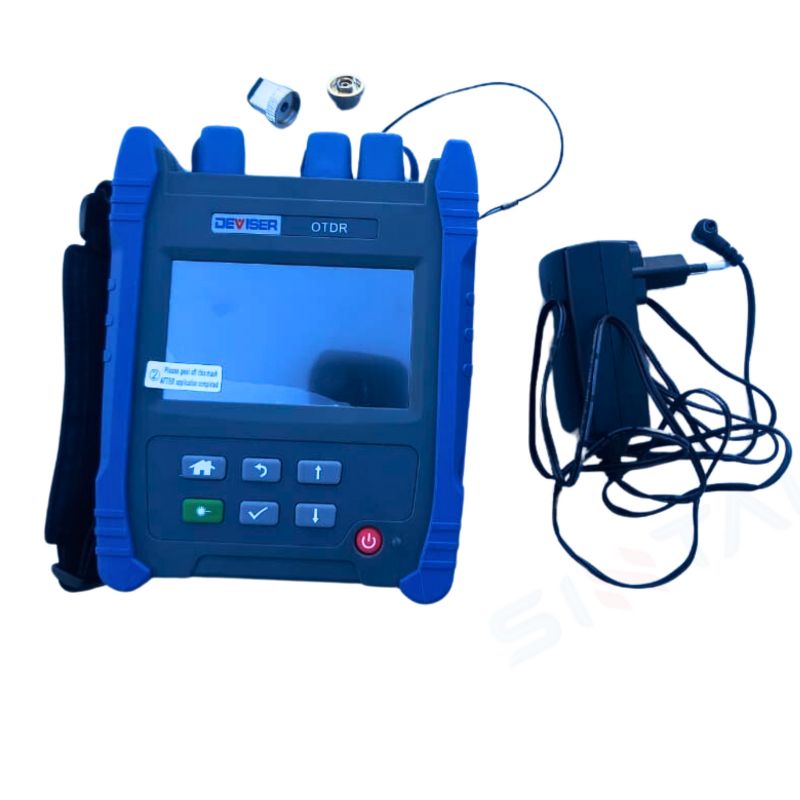

Overview of DEVISER OTDR AE1001:

The last thing a fiber maintenance technician needs is a double armful of bulky, feature-bloated equipment to bog down the job. The new AE1001 from Deviser Instruments is a sleek, zero-fuss OTDR weighing less than 1 kg that tests the common 1310 & 1550 nm wavelengths in 5s flat. Low power consumption and a solid 2500mAH battery allow the AE1001 to run automated, manual, or real-time tests continuously for over 4 hours and are supplemented with the always-handy OPM and VFL.

Key Benefits

Feature

Description

Portability

Ultra-portable, lightweight OTDR for FTTx networks

Display

4.3” LCD touchscreen (visible in high/low light)

Test Speed

Dual-wavelength test in ≤5 seconds

Performance

Excellent stability and repeatability

Battery Life

Runs continuously for over 4 hours

Storage

Saves >160,000 OTDR traces with 16 GB of data



Optical Power Meter

Parameter

Specification

Calibrated Wavelengths

1310, 1550 nm

Operating Wavelengths

850, 980, 1300, 1310, 1490, 1550, 1610, 1625, 1650 nm

Power Range

Select from [-70 ~ +10 dBm] or [-50 ~ +26 dBm]

Power Accuracy

±0.23 dB



Visual Fault Locator (VFL)

Parameter

Specification

Wavelength

650 ± 10 nm

Power

1 mW

Compliance

Laser Safety Class II

Optical Port Type

PC (default); APC (optional)

Optical Adapter Type

FC (default); SC, ST, LC, SC/APC (optional)



General Specifications

Parameter

Specification

Display

4.3" dot matrix TFT LCD touchscreen

Interface

1x USB 2.0; 1x RJ45 LAN (optional)

Power Supply

100 ~ 240V, 1.5A, 50~60Hz (AC); max 12V / 2Ah (DC)

Consumption

< 3 W

Battery

7.4V / 2500 mAh Li-ion battery, 18.5 Wh

Operating Time

~6 hrs on full charge (4 hrs continuous testing)

Operating Temperature

-10°C ~ +50°C

Storage Temperature

-40°C ~ +70°C

Relative Humidity

0 ~ 95%, non-condensing

Dimensions

7.1" x 5.7" x 2.2" (180mm x 145mm x 55mm)

Weight

< 2.2 lbs (< 1 kg)



Optical Parameters

Parameter

1310 nm

1550 nm

Dynamic Range

26 dB

24 dB

Event Deadzone

≤ 3m

≤ 3m

Attenuation Deadzone

≤ 10m

≤ 10m

Measurement Range

150m - 80km

150m - 80km

Pulse Width

3ns - 20µs

3ns - 20µs

Sampling Resolution

Auto / high-resolution modes

Sampling Points

Up to 12,800

Group Refractive Index

1.000000 ~ 2.000000

Distance Uncertainty

± (0.75 + 0.005% × fiber length + sample resolution)

Linearity

0.05 dB/dB

Loss Threshold

0.001 dB

Loss Resolution

0.001 dB

Refresh Rate

10 fields/s

Reflectance Accuracy

±3 dB

Measurement Time Range

5s ~ 5min, real-time

Data Storage

16 GB (up to 160,000 OTDR traces)
