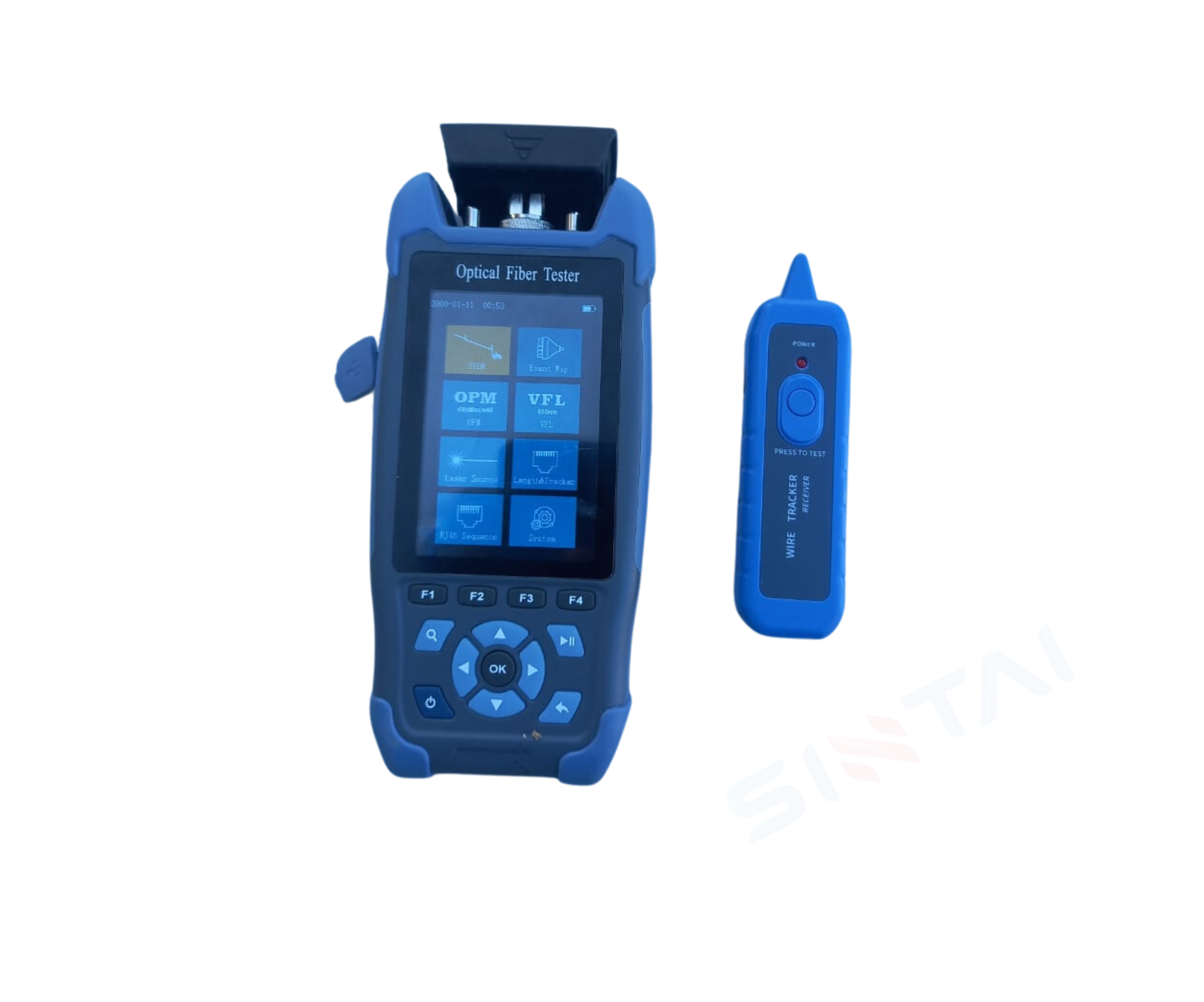

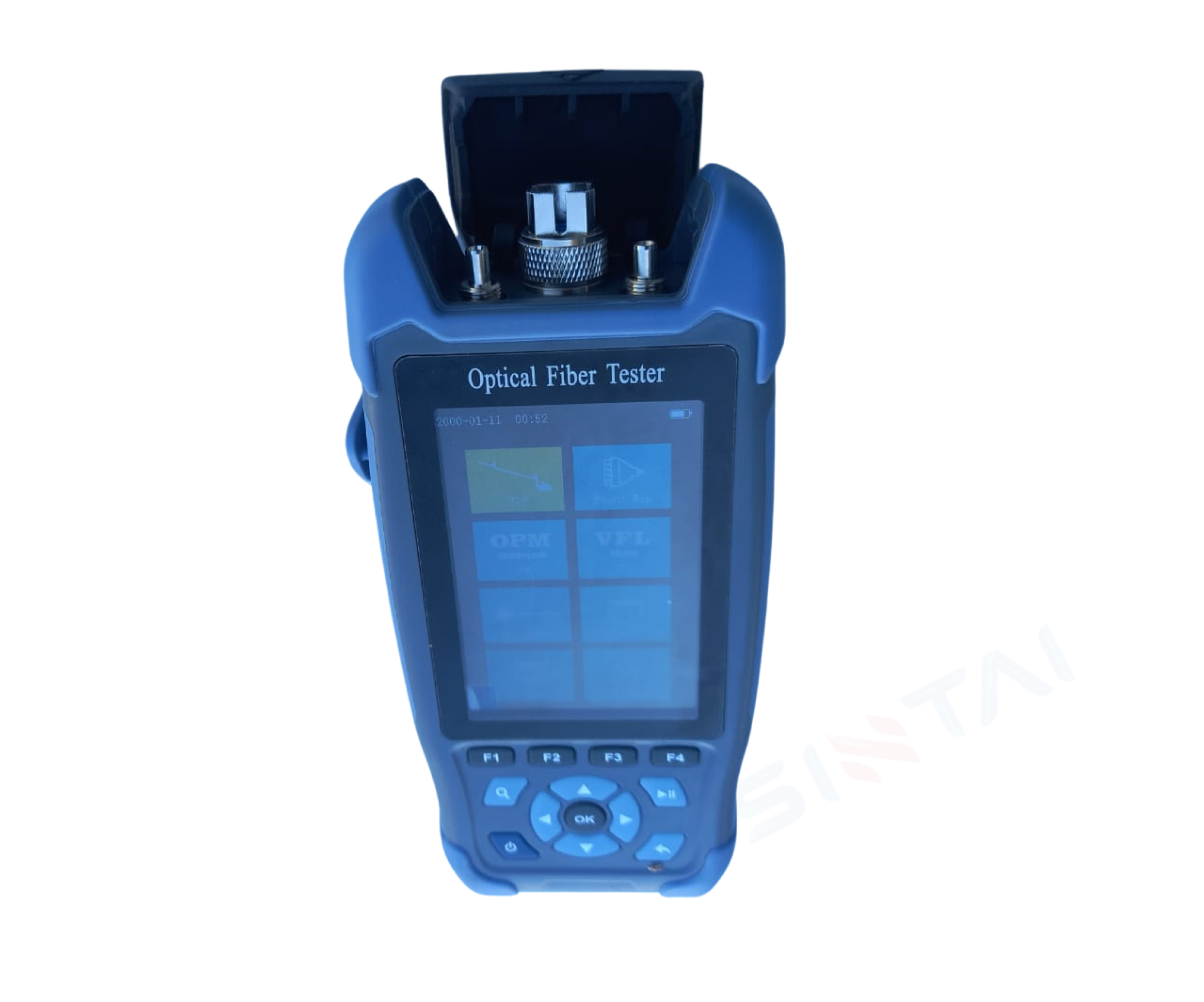

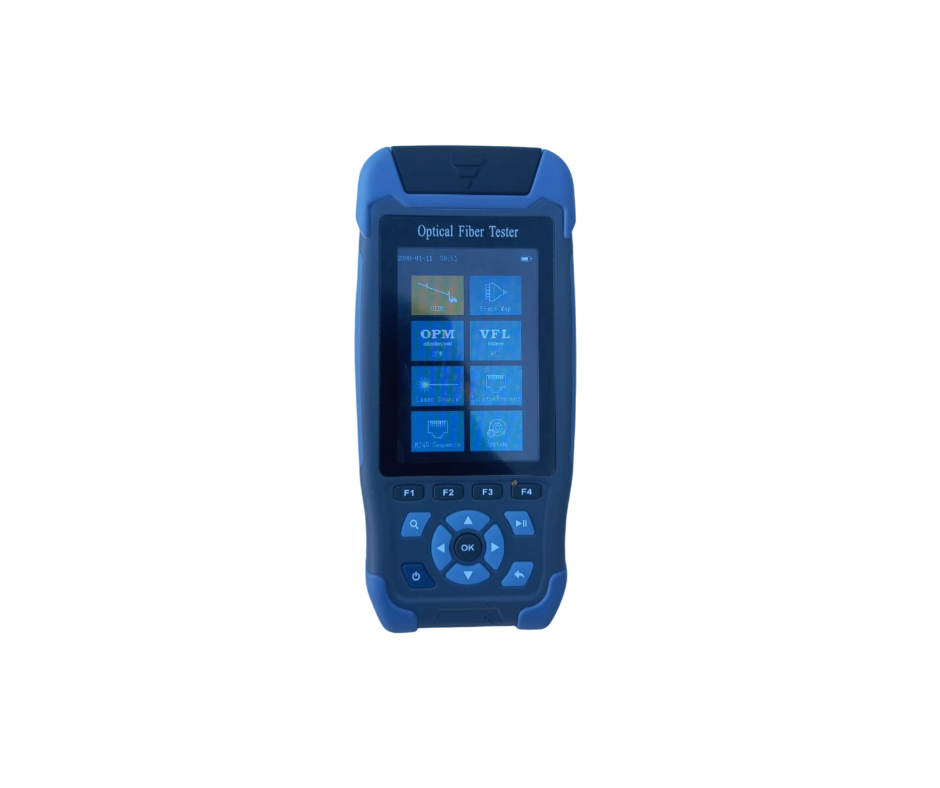

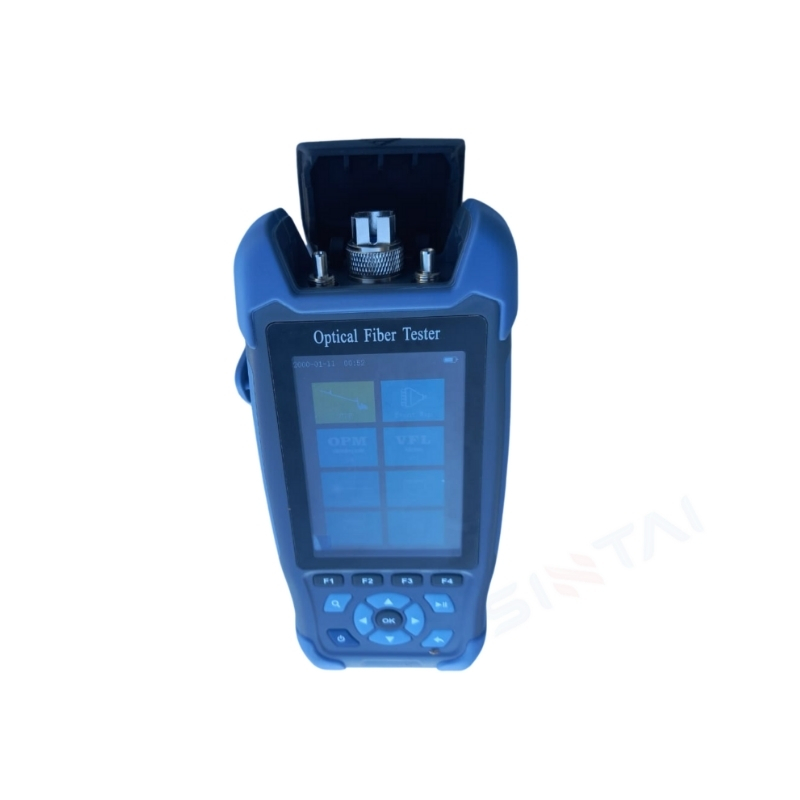

Product Overview Mini Pro OTDR (DT-600):
- OPM Wave Range: 800nm to 1700nm
- LS Wavelength: 1550nm±20nm, 1310nm/1550nm±20nm
- VFL Wavelength: 650nm±20nm
- RJ45 Cable Length Measurement: 300m
- Display: 3.5 inch Color LCD
- Power Supply: Polymer Li-Battery 3.7V 4000mAh, Adapter 5VDC 2A
- Battery Life: Standby 20h, Measuring time 12h
- Operating Temperature: -10°C to +50°C
- Storage Temperature: -40°C to +70°C
- Relative Humidity: 0-95% Non-Condensing
- Size: 173mm x 82mm x 37mm
- Weight: ≤350g
- Models:
- DT-600
- Wavelength:
- DT-600: 1310nm/1550nm±20nm
- Fiber Type:
- G.652
- Dynamic Range:
- DT-600: 24dB/22dB
- Event Blind Zone:
- 3m
- ATT Blind Zone:
- 8m
- Test Range:
- 500m to 60km
- Pulse Width:
- 3ns to 10us
- Ranging Accuracy:
- ±1m + Sampling interval + 0.005 × Test distance
- Loss Accuracy:
- ±0.05dB/dB
- Sampling Points:
- 16k to 128k
- Sampling Resolution:
- 0.05m to 8m
- Reflection Accuracy:
- ±3dB
- Data Storage:
- Internal ≥600, External TF Card
- Laser Safety Level:
- Class
- File Format:
- SOR (Standard file format)
- Connector:
- FC/UPC, Interchangeable SC/ST
- Other Specifications:
- OPM Wave Range: 800nm to 1700nm
- LS Wavelength: 1550nm±20nm, 1310nm/1550nm±20nm
- VFL Wavelength: 650nm±20nm
- RJ45 Cable Length Measurement: 300m
- Display: 3.5 inch Color LCD
- Power Supply: Polymer Li-Battery 3.7V 4000mAh, Adapter 5VDC 2A
- Battery Life: Standby 20h, Measuring time 12h
- Operating Temperature: -10°C to +50°C
- Storage Temperature: -40°C to +70°C
- Relative Humidity: 0-95% Non-Condensing
- Size: 173mm x 82mm x 37mm
- Weight: ≤350g
