Product Overview

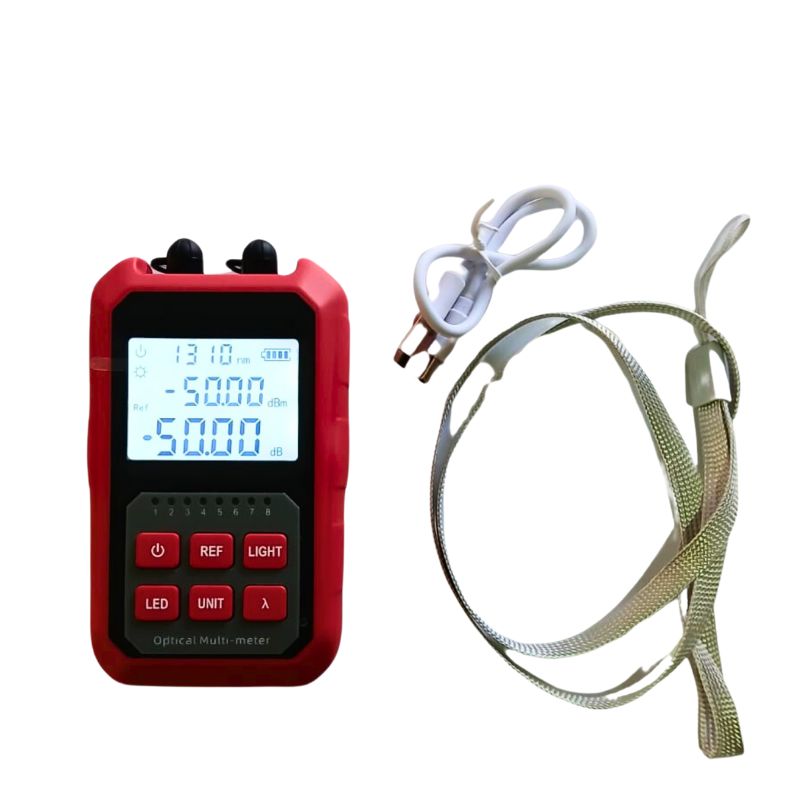

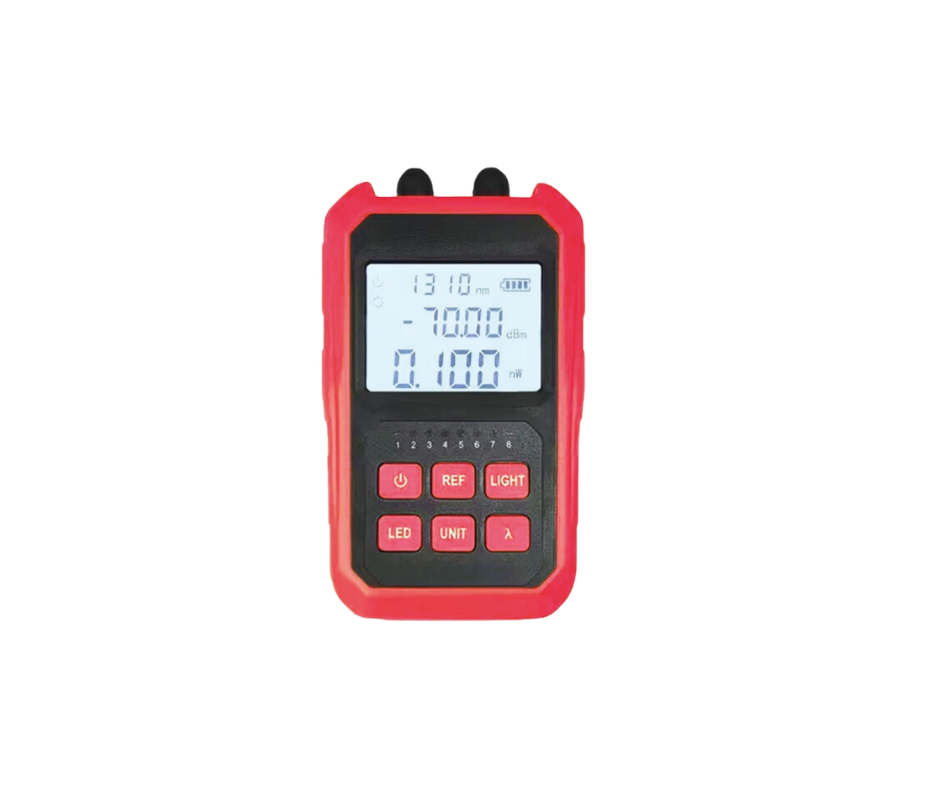

The OPM-VFL-50 series is a high-performance, multifunctional mini all-in-one device equipped with a high-precision optical power detector. It supports visual light source functionality, network testing capabilities, and comes with a bright light for ease of line tracing and installation in dark environments. Offering great value for money and easy operation, it's an efficient tool for network installation and maintenance.
Product Features
Universal optical interface, supports FC/SC/ST fiber connectors.
Supports 9 test wavelengths.
Support reference values setting and self-calibration function
Auto-off function can be enabled or disabled (automatically turns off after 10 minutes of inactivity)
Shutdown memory function
Supports VFL functionality (with various output powers available).
Supports network testing functionality.
Equipped with an LED flashlight for option..
Support Backlight adjustment feature.
Protected with a soft rubber case to effectively prevent damage in case of sudden incidents.
Product Specifications
Optical Power Meter | |
Model Number | OPM-VFL-50 |
Wavelength Range (nm) | 800 to 1700 |
Probe Type | InGaAs |
Test Range (dBm) | -50 ~ +26dBm |
Connector | 2.5mm Universal Connector + FC or SC |
Display Resolution (dBm) | 0.01dBm |
Uncertainty | ±5% |
Wavelength (nm) | 850、980、1270、1300、1310、1490、1550、1577、1625 |
Visual Fault Location | |
Output Power (mW) | 1、5、10、15、20、25、30mW |
Connector | 2.5mm Universal Connector + FC or SC |
Wavelength (nm) | 650 |
Spectral Line Width (20°C)(nm) | ±10 |
Mode of Fiber Optic | SM, MM |
Tone Detect | CW, 2Hz |
General Parameters | |
RJ45 Cable Testing | Support (Optional Function) |
LED Flashlight | Support (Optional Function) |
Automatic Shutdown Time (min) | 10 |
Power-Saving Mode (min) | 1 |
Power Supply | 3xAA Alkaline Batteries |
Battery Continuous Working Time (hrs) | 48 Hours (2xAA Alkaline Batteries)① |
Dimension (mm) | 69*119*31mm |
Weight (kg) | 0.157kg |
Working Temperature (℃) | -10~+60 |
Storage Temperature (℃) | -25~+70 |
