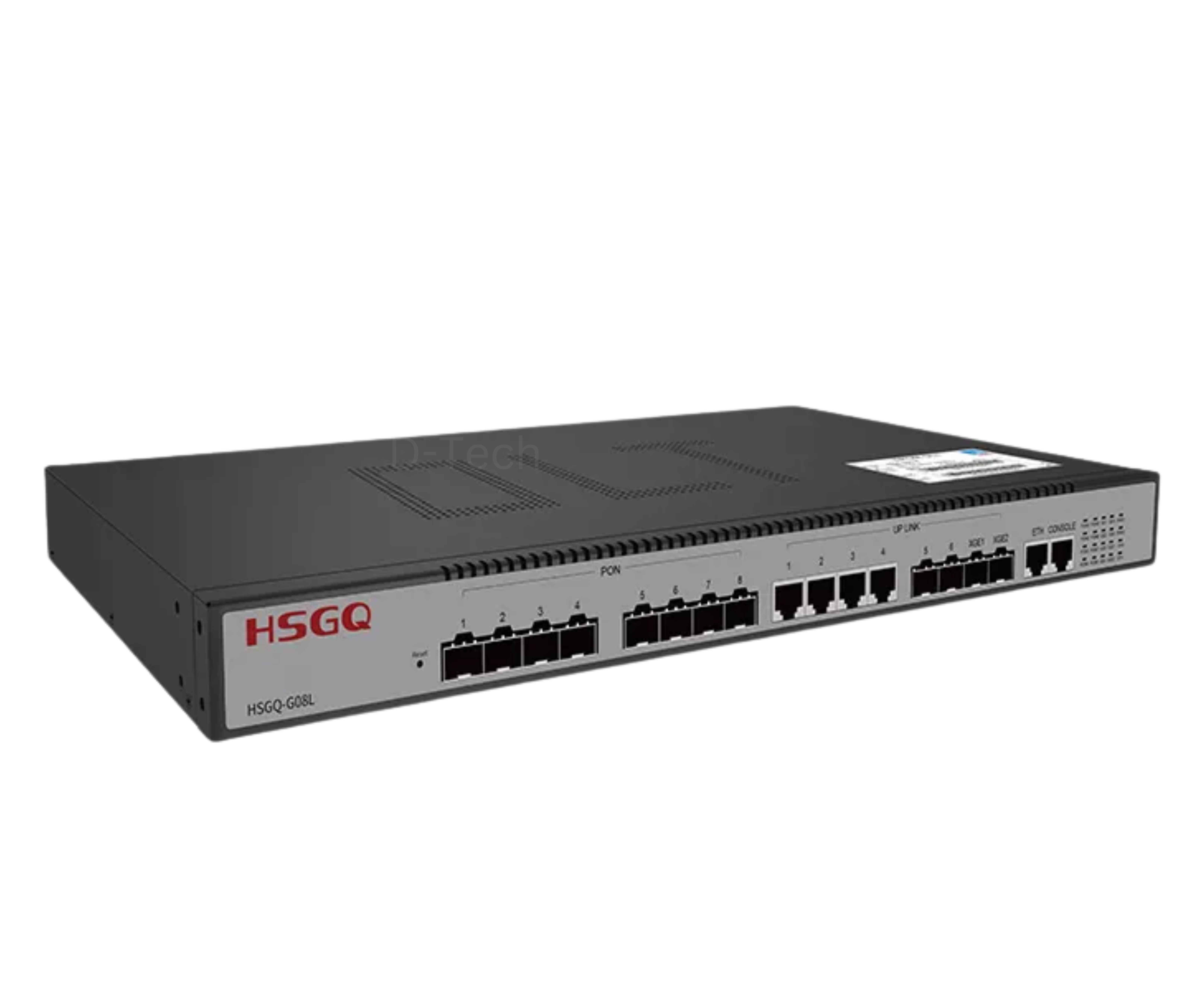

   HSGQ-G08L: High-Performance 1U GPON OLT

   Product Overview

   HSGQ-G08L belongs 1U cartridge GPON OLT series.Good system stability and high reliability. Support various management methods like CLI, WEB, SNMP etc. The product provides 8 GPON interfaces, 4*uplink interfaces, 2*SFP and 2*uplink SFP+ interfaces. Through the cloud management function, users can quickly deploy, configure, remotely manage and operate the all network equipment, which greatly reduces the labor cost and time cost in the process of network construction. It is appropriate for situations like sparsely populated, remote and cost-sensitive areas, smart industrial parks, commercial premises, FTTH, etc. Each GPON port supinterfaces up to splitting ratio1:128 and 1024 GPON users, also supinterfaces different types of ONU based on different networks. 1U for easy installation and      maintenance. It is an excellent choice for ISP deploying FTTH networks quickly.



Technical Parameter

Model	HSGQ-G08L
Interface	8*GPON
	4*GE RJ45
	2*1G SFP
	2*10G SFP+
PON	Physical interface: SFP slot
	Type: Class C++/Class C+++/Class C++++
	Split ratio on single PON port 1:128
Flash	32MB
DDR	1GB
Size	442mm x 260mm x 44mm
Weight	＜5kg
Standard Protocol	IEEE802.3 (10Base-T)
	IEEE802.3u (100Base-TX)
	IEEE802.3z (1000BASE-X)
	IEEE802.3ab (1000Base-T)
	IEEE802.1Q (VLAN)
Management Port	Console port/ETH port
Environment	Operating environment: -10°C~55°C
	storage environment: -40°C~80°C
	Storage humidity: 5%~95% (non-condensing)
power supply	AC: 100V-240V 50/60Hz
power dissipation	＜60W
PON function	Support auto registration
	ONU Whitelist and black list
	DBA configuration
	P2P
	ONU authorization
Platform Management Features	Device list
	Project management
	Version release
	Lisense management
	Permission management
	User management
Configuration  and Management	CLI, WEB, SNMP/NMS, CLOUD
	Software and firmware upgrades
	Chinese/English command prompt
	Ping and Debug diagnosis
	User/Log/Alarm management
L3 Functions	Static Routing
	DHCP servers, DHCP Snooping and DHCP Relay
	OSPF
L2 Functions	Support VLAN, VLAN conversion and QinQ
	Support up to 4094 VLAN
	Support Port Mirror
	Support RSTP and MSTP (recovery time <1s)
	Support link aggregation (recovery time <10ms)
	Support storm control
	Support IGMP Snooping/proxy
	Support port isolation
	Support ACL access control based on data stream
	Support QoS based on port, VID, TOS, and MAC address
	Support encrytion of PON port transmitting data



          Key Features

a.      Support full wire-speed forwarding 16K MAC address table.

b.     Complete network management functions.

c.      Support flexible DBA, up and down traffic speed control.

d.     Support IP ToS, IEEE802.1q.

e.      Support port aggregation.

f.       Support port-based traffic control, traffic shaping.

g.     Support ONU, auto-discovery, and auto-registration.

h.     Support the automatic loop-back test function.

i.       VLAN powerful features, including VLAN Stacking, trunk, translation.

j.       Support lGMP function.

k.     Support ACL /QoS.
