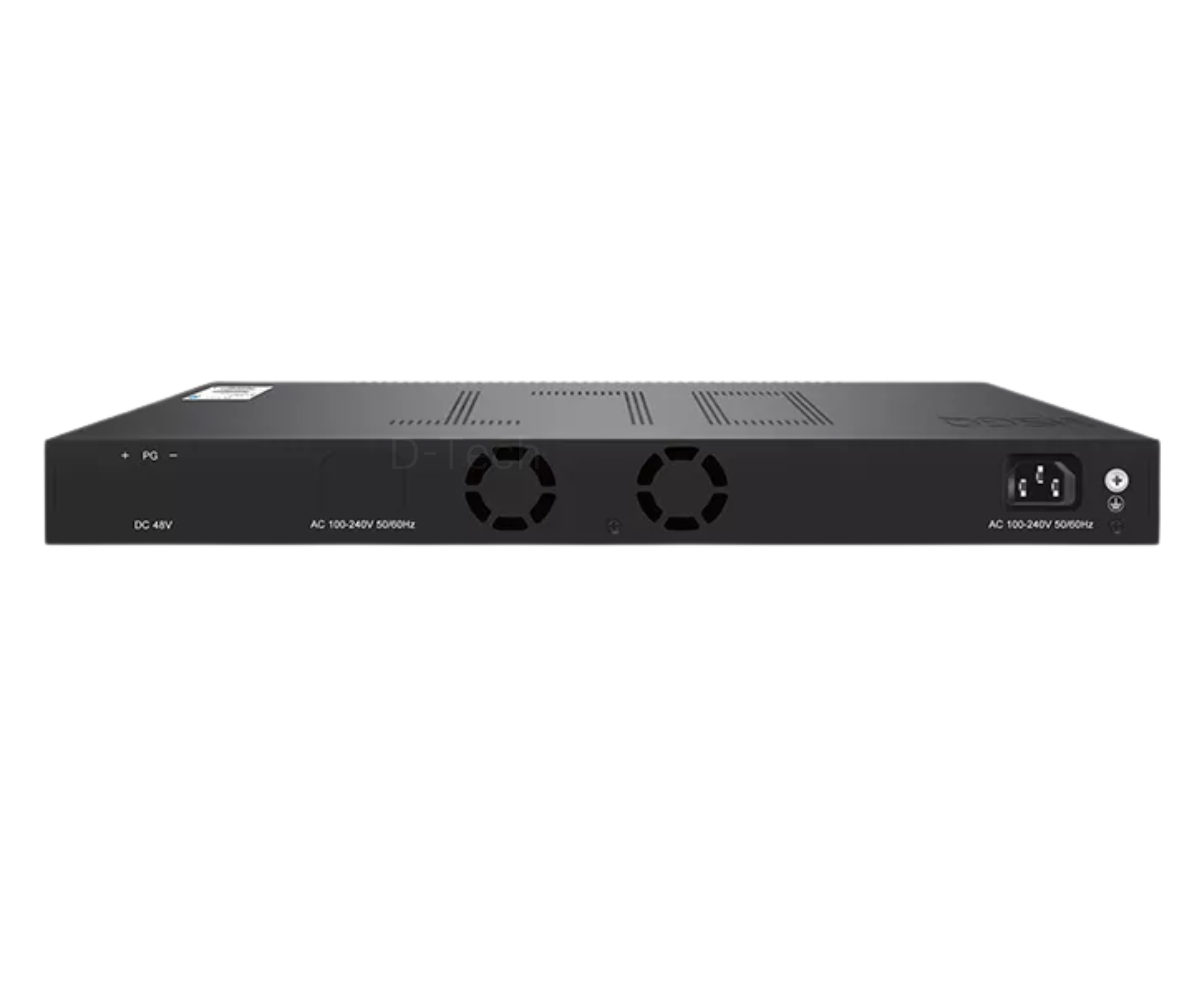

HSGQ GPON OLT G16L 156

Item	HSGQ-G16L
Interface	16*GPON
	4*10/100/1000M Combo
	2*10G SFP+
PON	Physical interface: SFP slot
	Type: Class C++/Class C+++/Class C++++
	Split ratio on single PON port: 1:128
Flash	32MB
DDR	1GB
Size	442mm x 260mm x 44mm
Weight	＜5kg
Standard Protocol	IEEE802.3 (10Base-T)
	IEEE802.3u (100Base-TX)
	IEEE802.3z (1000BASE-X)
	IEEE802.3ab (1000Base-T)
	IEEE802.1Q (VLAN)
Management Port	Console port/ETH port
Environment	Operating environment: -10°C~55°C
	Storage environment: -40°C~70°C
	Storage humidity: 10%~90% (Non-condensing)
power supply	AC: 100V-240V 50/60Hz
power dissipation	＜60W
PON  function	Support auto registration
	ONU white list and black list
	DBA configuration
	P2P
	ONU authorization
Platform  Management Features	Device list
	Project Management
	Version release
	Lisense management
	Permission management
	User management
Configuration  and Management	CLI, WEB, SNMP/NMS, CLOUD
	Software and firmware upgrades
	Chinese/English command prompt
	Ping and debug diagnosis
	User/Log/Alarm management
L3 Functions	Support static routing
	Support DHCP servers, DHCP Snooping and DHCP proxy
	Support OSPF
L2 Functions	Support VLAN, VLAN conversion and QinQ
	Support up to 4,094 VLAN
	Support port mirror
	Support RSTP and MSTP (recovery time <1s)
	Support link aggregation (recovery time <10ms)
	Support storm control
	Support IGMP snooping/proxy
	Support port isolation
	Support ACL access control based on data stream
	Support QoS based on port, VID, TOS, and MAC address
	Support encrytion of PON port transmitting data

• 64K MAC address table.

• Complete network management functions.

• Support flexible DBA, up and down traffic speed control.

• Support IP ToS, IEEE802.1Q.

• Support port aggregation.

• Support port-based traffic control, traffic shaping.

• Support ONU automatic identification, auto-discovery, and auto-registration.

• Support the automatic loop-back test function.

• VLAN powerful features, including VLAN, QinQ and translation.

• Flexible and controllable multicast support, support IGMP snooping.

• Support ACL and QoS.

• Support DHCP, Static Routing and OSFP, etc.

• Support Cloud Management.


  • Optical Link Diagnosis: Complete warning mechanism.

  • High Reliability: Supports dual power supply (Default single power supply).

  • Dimension: 1U cassette save space, low power consumption.

  • Uplink: Support electrical and optical modules, can be flexibly configured according to different networking.

  • Capacity: Each PON supports up to 128 terminals, the whole device supports up to 2048 ONUs under full configuration.
