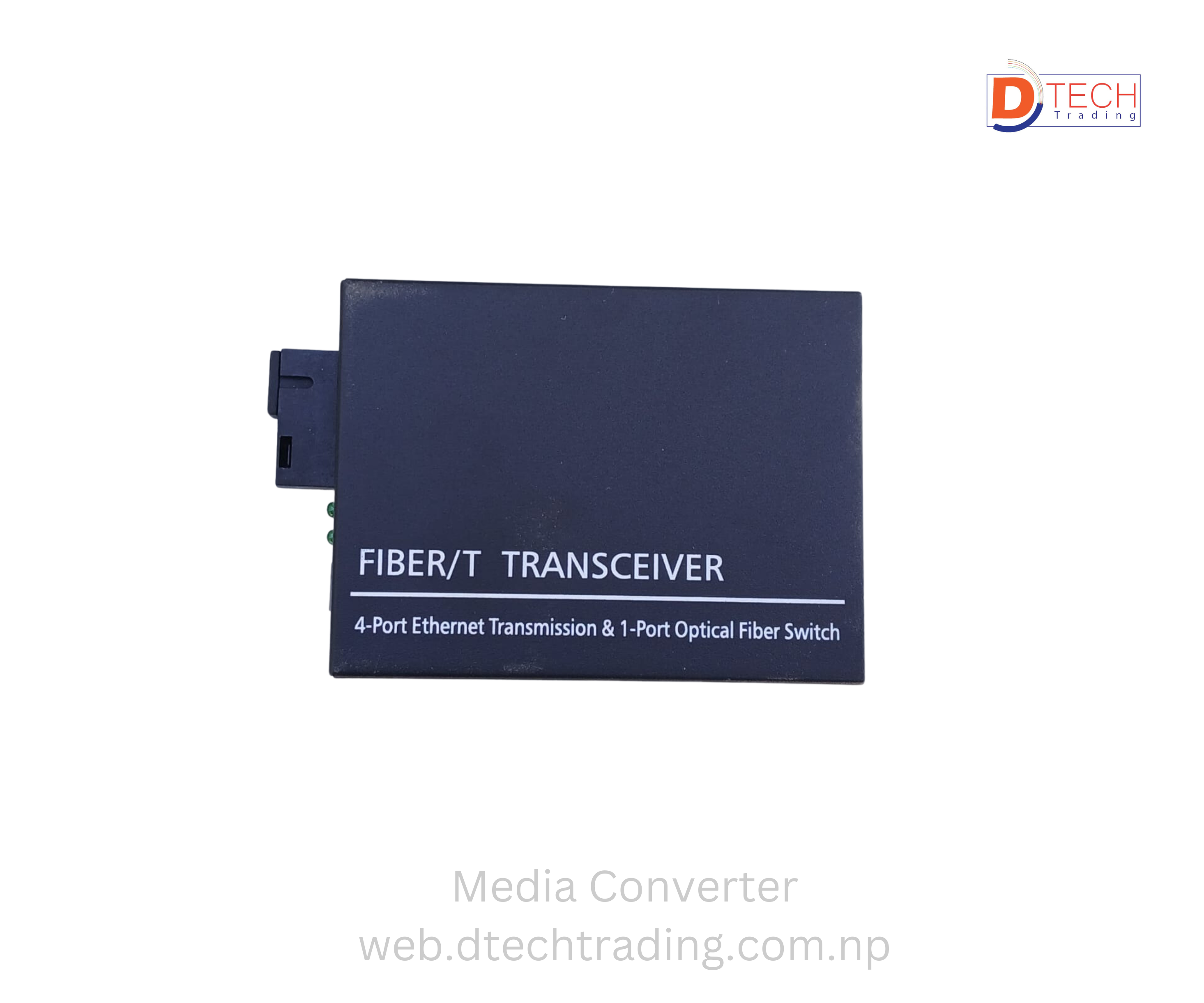

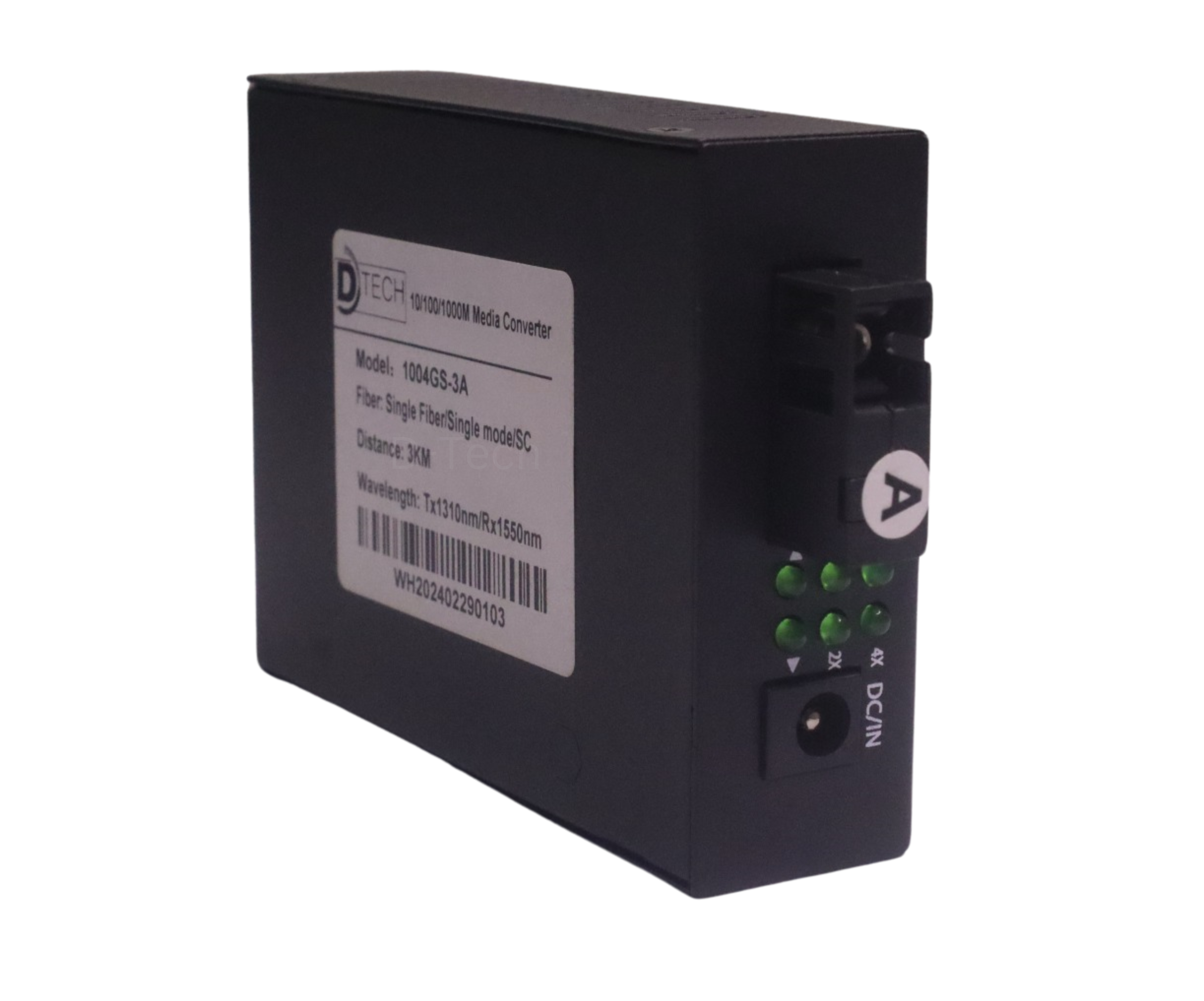

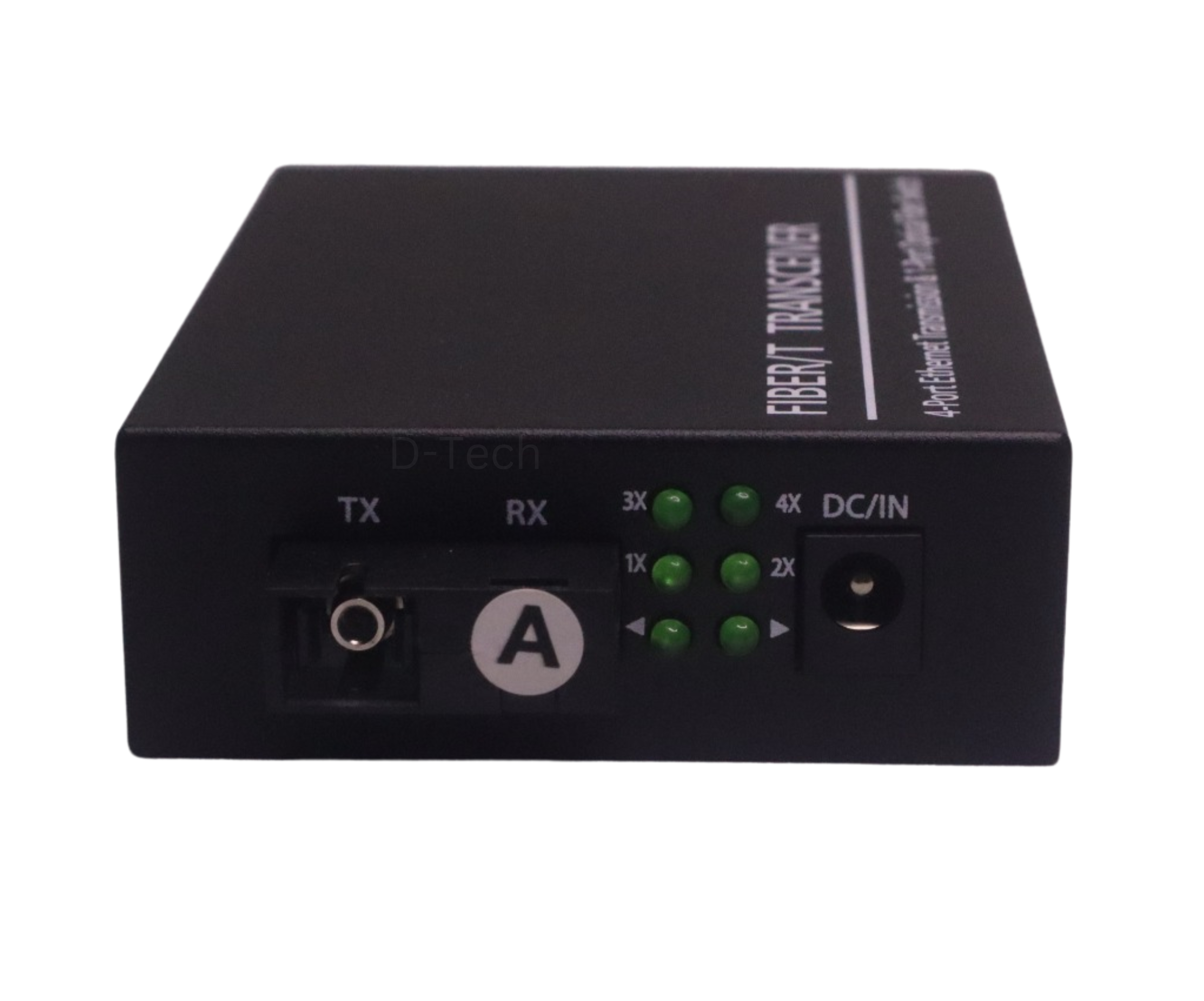

Fiber media converter 10/100/1000M 3km 1Fiber 1RJ45 SM single fiber SC (A):

Non-managed media converters, which give you economic solutions for media conversion between fiber and copper Ethernet. It provides you with SC, FC, or ST connectors for your fiber optic cables and RJ45 for twisted pair UTP cable connections. The maximum extension is up to 120 km over fiber.

Product Description of 10/100/1000M 3km 1Fiber 1RJ45 SM single fiber SC (A):

Features:

In conformity with IEEE802.3 10 base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z, 1000 base-SX/LX, IEEE802.1a, IEEE802.1PQ0S, and IEEE802.1d Spanning Tree.
Hot Plug-gable & Wall-Mountable.
Stable performance for more than 50 thousand hours with fault-free.
A unique IC solution was applied.
Supports 10/100Mbps and 10/100/1000M full/half duplex, easy upgrades.
Auto MDI/MDI-X.
Auto-negotiation.
Support flow control.
Stable performance more than 50 thousand hours with fault-free.
In conformity with the safety codes of the FCC, CE, and RoHS.

Specifications:

Optical Interface	Connector	1x9 SC/FC/ST
	Data Rate	1000Mbps
	Duplex Mode	Full duplex
	Fiber	SM 9/125um
	Distance	10/100/1000Mbps: SM /3km
	Wavelength	SM 1310nm/1550nm
UTP Interface	Connector	RJ45
	Data Rate	10/100/1000Mbps
	Duplex Mode	Half/full duplex
	Cable	Cat5,Cat6
Power Input	Adapter Type	DC5V
Power Consumption		＜5W
Port Numbers		4* 10/100/1000 RJ45 + 1* 1.25G SC fiber
Weight	Adapter Type	0.4kg
Dimensions	Adapter Type	95mm70mm25mm
Temperature		0~50℃ Operating; -40~70℃ Storage
Humidity		5~95%(no condensing)
MTBF		≥10.0000h
Certification		CE,FCC,RoHS

Application:

Extend your Ethernet connection up to 0~120 km away using fiber optics
Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones
Converts Ethernet to fiber, fiber to copper, or Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)
Designed to provide high-speed bandwidth for demanding large-scale work groups that require expansion of Gigabit Ethernet Network
